UGR<16 LED Grille Light Fixture-CA, CC And CF Seires
High-Efficiency LED Grille Light Fixture – Anti-Glare, Customizable & Ideal for Offices, Hospital and Schools
Custom LED Grille Light Fixture Manufacturer & Supplier
OLAMLED have developed a type of an LED grille lighting fixture (also known as a louvered light or grid light) features a grille or louvered reflector design, with LED modules installed inside. This grille design can reduce direct glare and helps to direct the light downward, thereby achieving uniform and soft illumination.

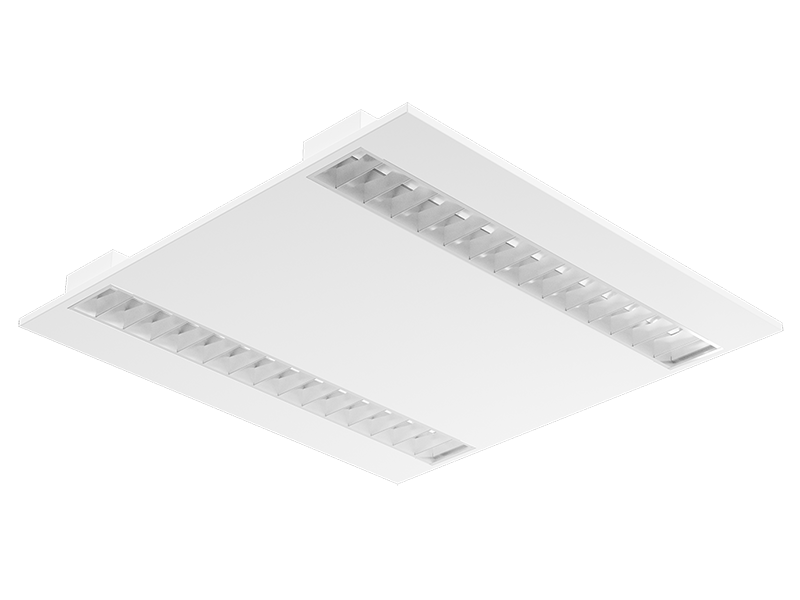

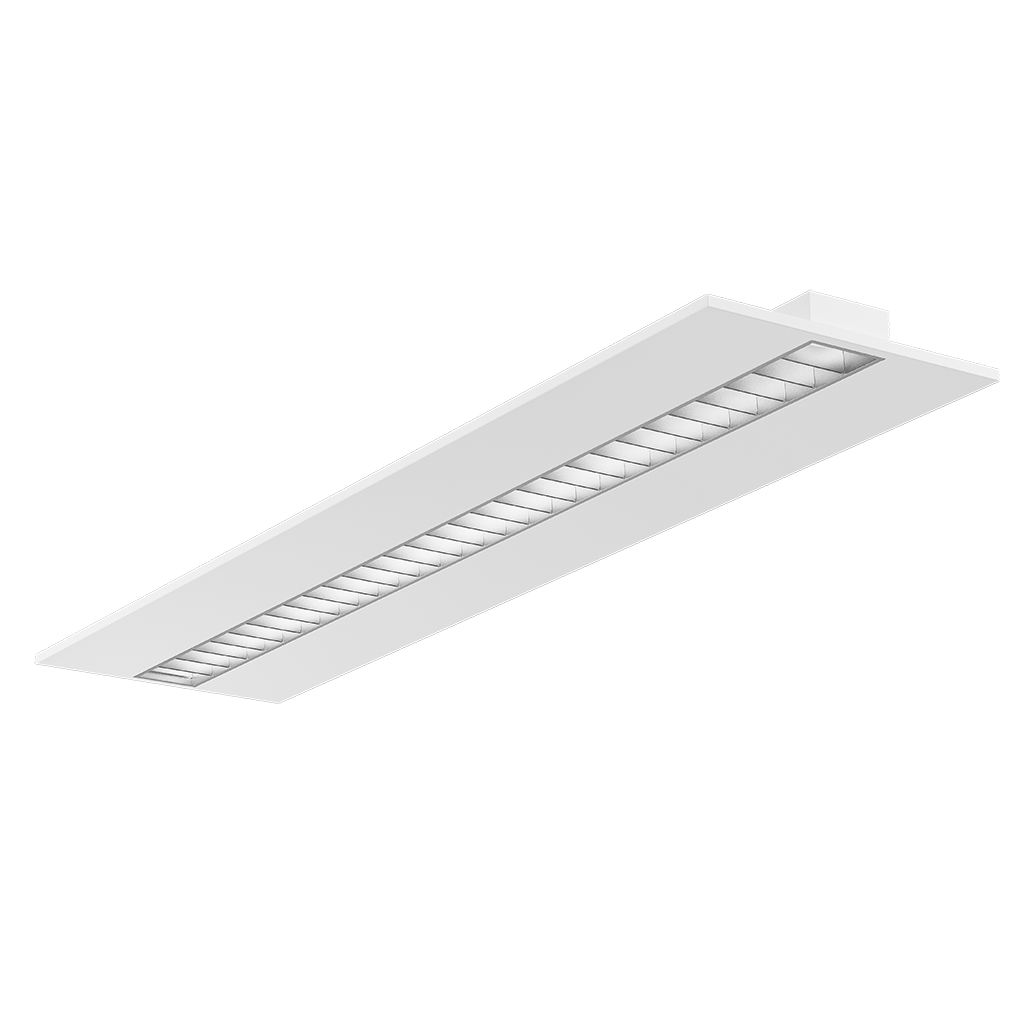

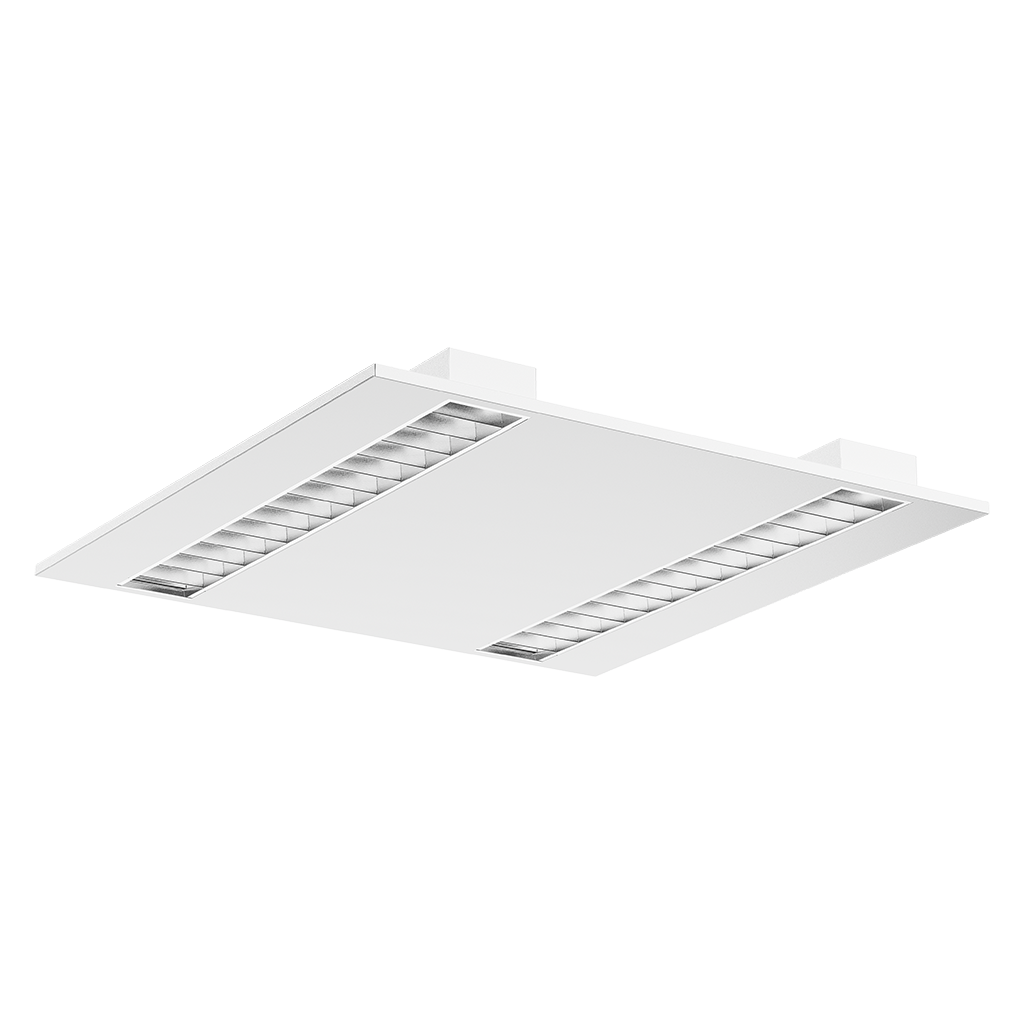

CA Series – LED Louver Fixtures (UGR<16)
The CA series LED grille lights are an ideal choice for commercial spaces, achieving a balance between performance and visual comfort. With an UGR value of less than 16, the design effectively reduces glare, making it suitable for offices, schools, and hospitals.
The matte louvered design provides a soft light output and is not prone to accumulating visible dirt. Its luminous efficiency is up to 120lm/W, and compared to traditional fluorescent grille lights, it saves energy by over 50%.
CC Series – LED Grille Light with Indirect Lighting
The CC series LED integrated grille lamp adopts a unique anti-glare design. It combines a mirror-like surface grille made of aluminum with a suspended bottom optical design, thus forming an indirect light reflection path.
The light is reflected downward rather than emitted directly from the source.The result is extremely low glare, providing a very soft and comfortable visual experience. If you want a high-end appearance and extremely soft, glare-free light suitable for high-end offices, galleries, or quiet commercial spaces, then choose the CC series.

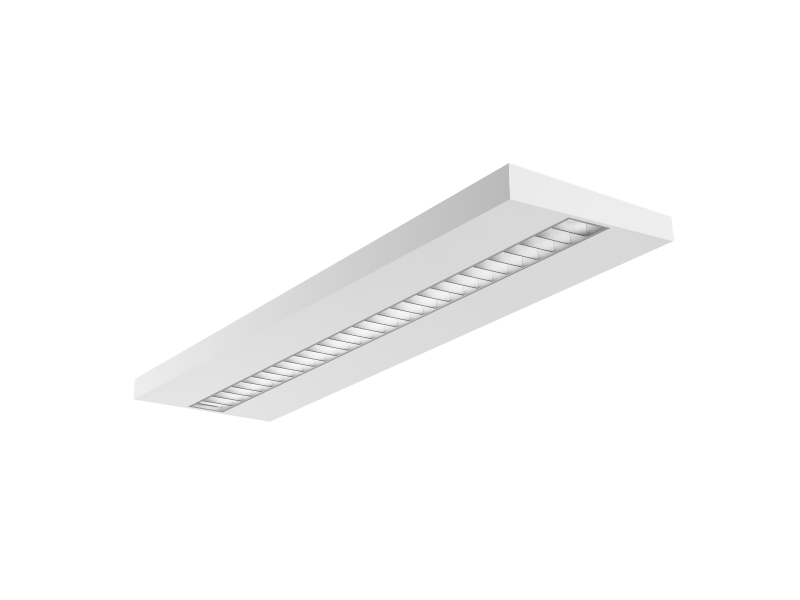

CF Series – LED Grille Linear Light
The CF series of LED grille linear lighting products are specifically designed for projects that require a slim, linear design and need reliable glare control functionality. They can provide comfortable lighting for various commercial indoor environments.
Their matte louvered structure boasts excellent anti-glare performance, soft texture, and stain resistance. The CF series is an ideal choice for linear lighting layouts, such as reception desks, corridor lighting, or suspended grid arrangements in modern offices and retail stores.
Customizable LED Grille Lights – Choose Your Optical Design, Size, and Function
OLAMLED offers three series of UGR<16 LED grille lights: CA Series, CC Series, and CF Series. Each series has a different optical design and appearance.
All three support full customization including:
- CRI (80/85/90/95Ra)
- CCT (fixed / switchable / tunable white)
- Dimming (1-10V / DALI-2)
- Sensor & emergency backup
- Size & installation method
Choose the series that fits your visual preference and project needs — we will customize the rest.
Not sure which series fits your project?
Tell us your ceiling type, size requirement, and light preference.
We will recommend a series and customize it to your exact needs.
| Series | Optical Design | Appearance | Best For | Customization |
|---|---|---|---|---|
| CA Series | Matte louver + light guide plate | Standard panel look | Offices, schools, hospitals | Full customization |
| CC Series | Indirect reflection + mirror-aluminum grille | Premium, soft light | Galleries, high-end offices | Full customization |
| CF Series | Matte louver + slim linear body | Narrow linear | Corridors, reception, modern layouts | Full customization |
Product Series Comparison: CA Series vs. CC Series vs. CF Series
| Feature | CA Series | CC Series | CF Series |
|---|---|---|---|
| Product Type | LED Grille Light | LED Grille Light | LED Grille Linear Light |
| UGR Rating | <16 | <16 | <16 |
| Beam Angle | 80° | 80° | 80° |
| Max Luminous Efficacy | >130 lm/W | >110 lm/W | >130 lm/W |
| CRI Options | ≥80Ra / ≥90Ra / ≥95Ra | ≥80Ra / ≥90Ra / ≥95Ra | ≥80Ra / ≥90Ra / ≥95Ra |
| Optical Design | Matte louver + Light guide plate + Diffuser | Mirror-aluminum louver + Suspended bottom + Indirect reflection | Matte louver + Light guide plate + Diffuser |
| Key Unique Feature | Balanced performance, reliable for general use | Indirect reflective path for ultra-soft light | Slim linear design for narrow layouts |
| Housing Colors | White & Black | White | White & Black |
| Louver / Grille Material | Matte louver | Mirror-aluminum surface grille | Matte louver |
| Light Output Style | Direct illumination | Indirect reflective illumination | Direct illumination |
| CCT Options | Fixed / 2-step or 3-step switchable / Tunable white | Fixed / 2-step or 3-step switchable / Tunable white | Fixed / 2-step or 3-step switchable / Tunable white |
| Dimming Options | Non-dimming, 1-10V, DALI-2 | Non-dimming, 1-10V, DALI-2 | Non-dimming, 1-10V, DALI-2 |
| Smart Functions | Sensor / Emergency mode optional | Sensor / Emergency mode optional | Sensor / Emergency mode optional |
| Standard Sizes | 600x600, 620x620, 300x1200, 300x1500, 600x1200 mm | 600x600, 620x620, 300x1200, 300x1500, 600x1200 mm | Length: 633mm, 1233mm, 1533mm (width ~102mm) |
| Typical Thickness | 41 mm | 100 mm | 61 mm |
| Installation Method | Recessed, Surface mount, Suspended | Recessed (standard), customizable | Surface mount / Suspended |
| Customization | Size, CRI, CCT, dimming, sensor, emergency, structure | Size, CRI, CCT, dimming, sensor, emergency, structure | Size, CRI, CCT, dimming, sensor, emergency, structure |
| Best For | General commercial spaces (offices, schools, hospitals) | High-end spaces needing ultra-soft light (galleries, quiet offices) | Linear layouts (reception desks, corridors, suspended grids) |
CA Series
- Product Type
- LED Grille Light
- UGR Rating
- <16
- Beam Angle
- 80°
- Max Luminous Efficacy
- >130 lm/W
- CRI Options
- ≥80Ra / ≥90Ra / ≥95Ra
- Optical Design
- Matte louver + Light guide plate + Diffuser
- Key Unique Feature
- Balanced performance, reliable for general use
- Housing Colors
- White & Black
- Louver / Grille Material
- Matte louver
- Light Output Style
- Direct illumination
- CCT Options
- Fixed / 2-step or 3-step switchable / Tunable white
- Dimming Options
- Non-dimming, 1-10V, DALI-2
- Smart Functions
- Sensor / Emergency mode optional
- Standard Sizes
- 600x600, 620x620, 300x1200, 300x1500, 600x1200 mm
- Typical Thickness
- 41 mm
- Installation Method
- Recessed, Surface mount, Suspended
- Customization
- Size, CRI, CCT, dimming, sensor, emergency, structure
- Best For
- General commercial spaces (offices, schools, hospitals)
CC Series
- Product Type
- LED Grille Light
- UGR Rating
- <16
- Beam Angle
- 80°
- Max Luminous Efficacy
- >110 lm/W
- CRI Options
- ≥80Ra / ≥90Ra / ≥95Ra
- Optical Design
- Mirror-aluminum louver + Suspended bottom + Indirect reflection
- Key Unique Feature
- Indirect reflective path for ultra-soft light
- Housing Colors
- White
- Louver / Grille Material
- Mirror-aluminum surface grille
- Light Output Style
- Indirect reflective illumination
- CCT Options
- Fixed / 2-step or 3-step switchable / Tunable white
- Dimming Options
- Non-dimming, 1-10V, DALI-2
- Smart Functions
- Sensor / Emergency mode optional
- Standard Sizes
- 600x600, 620x620, 300x1200, 300x1500, 600x1200 mm
- Typical Thickness
- 100 mm
- Installation Method
- Recessed (standard), customizable
- Customization
- Size, CRI, CCT, dimming, sensor, emergency, structure
- Best For
- High-end spaces needing ultra-soft light (galleries, quiet offices)
CF Series
- Product Type
- LED Grille Linear Light
- UGR Rating
- <16
- Beam Angle
- 80°
- Max Luminous Efficacy
- >130 lm/W
- CRI Options
- ≥80Ra / ≥90Ra / ≥95Ra
- Optical Design
- Matte louver + Light guide plate + Diffuser
- Key Unique Feature
- Slim linear design for narrow layouts
- Housing Colors
- White & Black
- Louver / Grille Material
- Matte louver
- Light Output Style
- Direct illumination
- CCT Options
- Fixed / 2-step or 3-step switchable / Tunable white
- Dimming Options
- Non-dimming, 1-10V, DALI-2
- Smart Functions
- Sensor / Emergency mode optional
- Standard Sizes
- Length: 633mm, 1233mm, 1533mm (width ~102mm)
- Typical Thickness
- 61 mm
- Installation Method
- Surface mount / Suspended
- Customization
- Size, CRI, CCT, dimming, sensor, emergency, structure
- Best For
- Linear layouts (reception desks, corridors, suspended grids)
High-quality parabolic louver achieves UGR<16, ensuring eye comfort in workspaces.
Up to 130–150 lm/W with integrated LED modules.
Replaces traditional T8/T5 fluorescent fixtures with lower power consumption
High-quality powder-coated matel housing and aluminum reflectors ensure longevity.
Standard sizes: 600x600mm, 300x1200mm, 2x2ft, 2x4ft etc.
Custom sizes and wattages available for project requirements.
Supports multiple dimming protocols: On/Off, 1-10V, DALI-2, D4i, Casambi. Motion sensor and daylight sensor integration for intelligent lighting control.
LED vs Fluorescent Grille Light Comparison
| Feature | LED Grille Light Fixture | Fluorescent Grating Lamp |
| Luminous Efficacy | 130-150 lm/W | 80-90 lm/W |
| Glare Control | UGR<16 (low glare) | High glare (UGR>22 typical) |
| Energy Consumption | 20W-40W (depends on model) | 2x36W or 4x18W tubes (72W) |
| Lifespan | >50,000 hours | 10,000-15,000 hours |
| Dimming & Control Options | On/Off, 1-10V, DALI-2, D4I, DT8 Casambi | Limited-mainly on/off only |
| Installation | Recessed, Surface, Suspended | Recessed grid ceiling only |
| Color Rendering Index (CRI) | CRI >80 / >90 optional | CRI ~50-70 |
| Maintenance Frequency | Very low-minimal relamping | High-tubes need frequent replacement |
| Flicker-Free Technology | Yes -Flicker-free drivers | No -often causes eye strain |
| Environmental Impact | Mercury-free, recyclable materials | Contains mercury, not eco-friendly |
| Emergency Backup Available | Yes-90 mins or 3 hrs | Rare or external only |
| Customization Options | Custom size, wattage, control, finish | Limited options, mostly standard sizes |

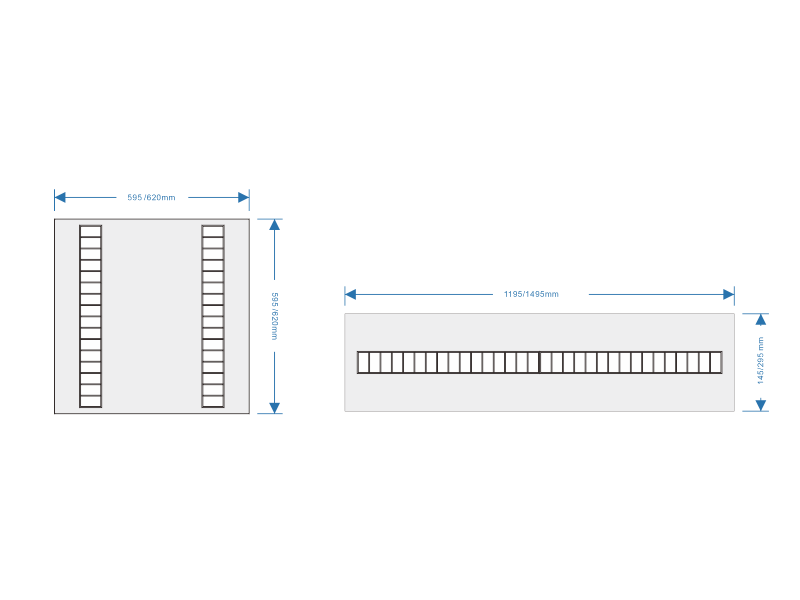

Standard sizes: 595×595mm, 295×1200mm, 300x150mm, 620x620mm, 595x1195mm.
Custom sizes available upon request for non-standard ceiling grids or architectural designs

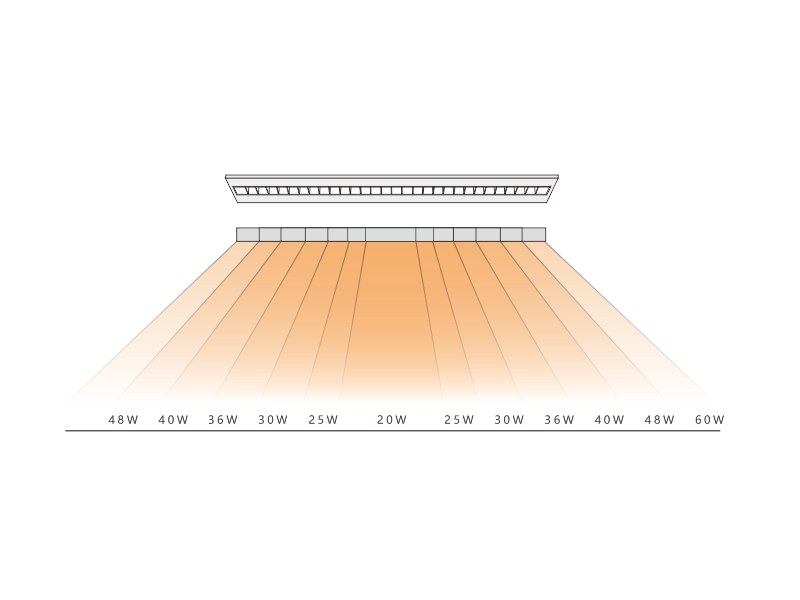

Adjustable wattage: 20W,25W, 30W, 36W,40W, 48W,60W etc.
Custom lumen packages to meet lighting level requirements for different environments (e.g., offices, hospitals, labs).
Available in fixed CCT: 3000K / 4000K / 5000K / 6000K
Tunable white: 2700K–6500K adjustable via remote or DALI DT8

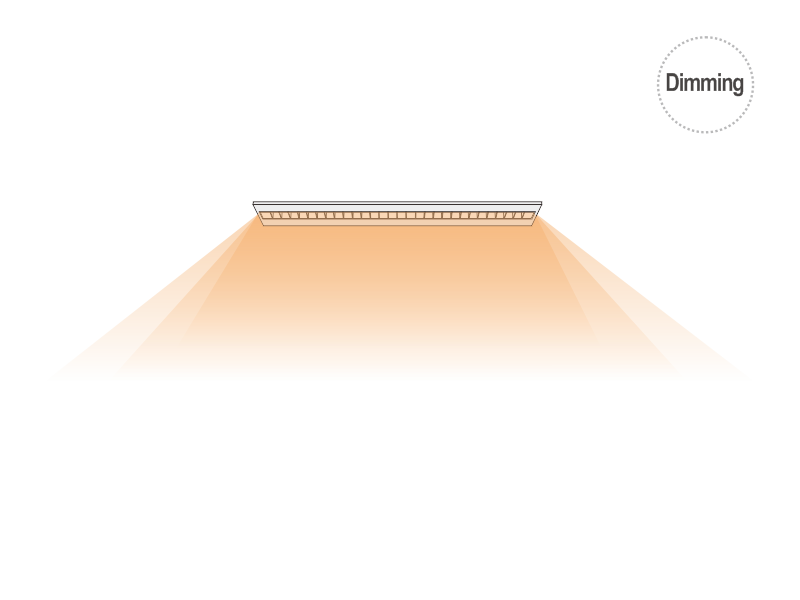

Custom driver options: On/Off, 0–10V dimming, DALI-2, D4i, DT8, Casambi (Bluetooth), Zigbee.
Supports integration with building automation and smart lighting systems.
Louver type:
- Mirror anodized aluminum
- Matte anodized
- Specular/Reflector finish options
- Grille layout: Different cell shapes or depths for glare control
- Integrated emergency battery packs (90 minutes or 3 hours)
- Maintains safety lighting during power loss
- Complies with EN 60598-2-22 (for EU market)

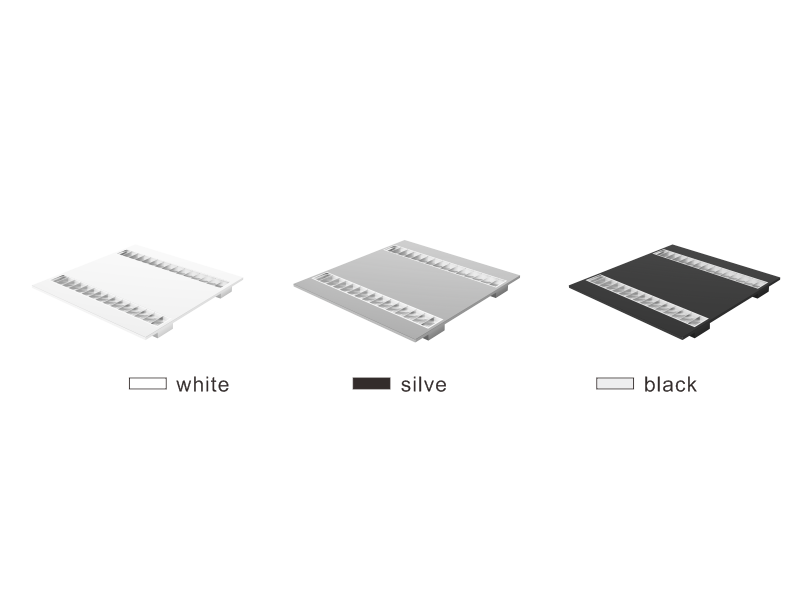

Powder-coated matel :Custom RAL color finishes available (white, black, silver, etc.)
Can be pre-installed with: Microwave or PIR motion sensors,Daylight sensors,Zhaga Book 18 sensor ports (for easy plug-in)

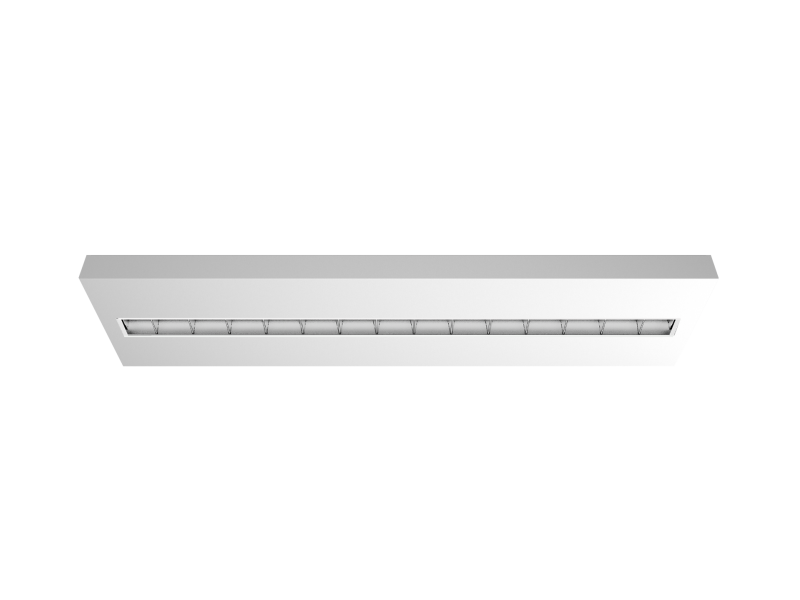

Recessed, surface-mounted, or suspended installation options
Custom plug-in wiring and fast-connect systems for easy installation
- OEM branding available:
- Silk-screen logo
- Custom labels
- Tailored packaging for distribution or retail
LED Grille Lights Different Scene Applications
Brighten your space with energy-efficient LED grille lights that boost productivity, enhance well-being, and reduce costs in offices, schools, clinics, government buildings, and retail stores. Contact us today to get started.

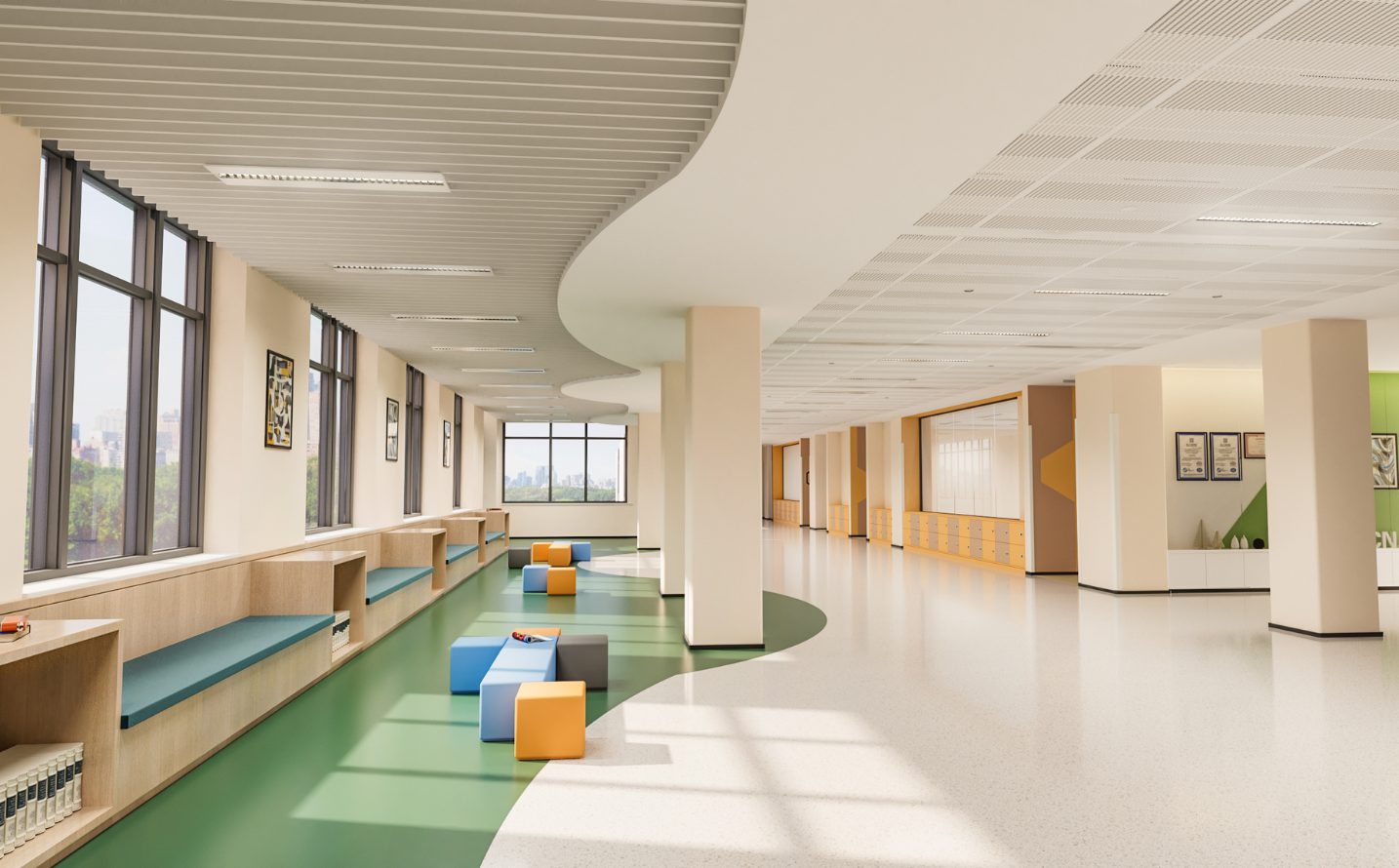

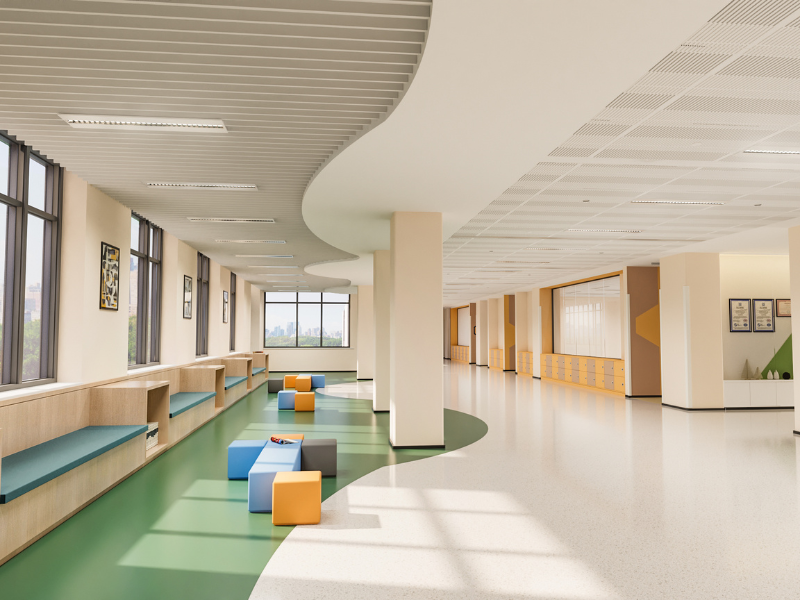

Schools & Universities
Support learning and concentration in schools and universities with LED grille lights that provide uniform lighting, reduce glare, and maintain a safe, welcoming environment. Energy-efficient systems improve attention, boost productivity, and create positive academic spaces.
Open-plan Offices
Use glare-free, energy-efficient LED grille lights in open-plan offices and meeting rooms to reduce eye strain, improve focus, and enhance employee well-being. Smart lighting increases functionality, supports collaboration, and cuts energy costs, making it ideal for flexible workspaces.
Hospitals & Clinics
Equip hospitals and clinics with LED grille lights to deliver bright, shadow-free illumination that supports clinical accuracy, hygiene, and patient comfort. These energy-efficient lights reduce maintenance costs, improve visibility for staff, and promote patient safety across healthcare environments.
FAQ for LED Grille Light Fixture Solutions
Here are some most popular FAQs during our 17 years experience as a LED lighting solution provider, and please feel free to contact us if you have more questions.
Can LED Grille Light Fixtures achieve UGR<16, and how does that impact office lighting performance?
Yes, high-quality LED grille lights using deep parabolic louvers and optimized optics can achieve UGR<16, which significantly reduces visual fatigue and discomfort in open-plan offices, design studios, and classrooms. This is especially important in environments requiring high visual acuity and long working hours.
Are your LED grille fixtures compatible with building automation systems (e.g., KNX, DALI-2, or Casambi)?
Yes. OLAMLED’s LED grille lights can be customized with drivers that support DALI-2, Casambi, 0-10V, or even KNX integration upon request. This allows seamless compatibility with smart building controls, daylight harvesting, occupancy sensing, and centralized scheduling.
Can I customize the housing color and louver finish for premium interior design projects?
Absolutely. We offer custom RAL colors for the fixture body and multiple reflector finishes including mirror, matte, and semi-specular. This is ideal for premium office interiors, architectural firms, or brand-specific retail installations requiring aesthetic consistency.
What is the typical lead time for custom orders with emergency, sensor, and smart dimming features?
For custom configurations (e.g., DALI dimming + emergency + sensor), the lead time is usually:
2–3 days for technical drawings and confirmation
7–10 days for samples
20–25 days for mass production Rush orders can be prioritized for project deadlines
How do your grille lights comply with international safety and efficiency standards?
Our fixtures are manufactured under ISO9001 and comply with CE, RoHS, CB, and ENEC (for EU market). Emergency versions comply with EN 60598-2-22, and all drivers are flicker-free, meeting IEEE 1789 standards for stroboscopic safety—critical for healthcare and education sectors.
