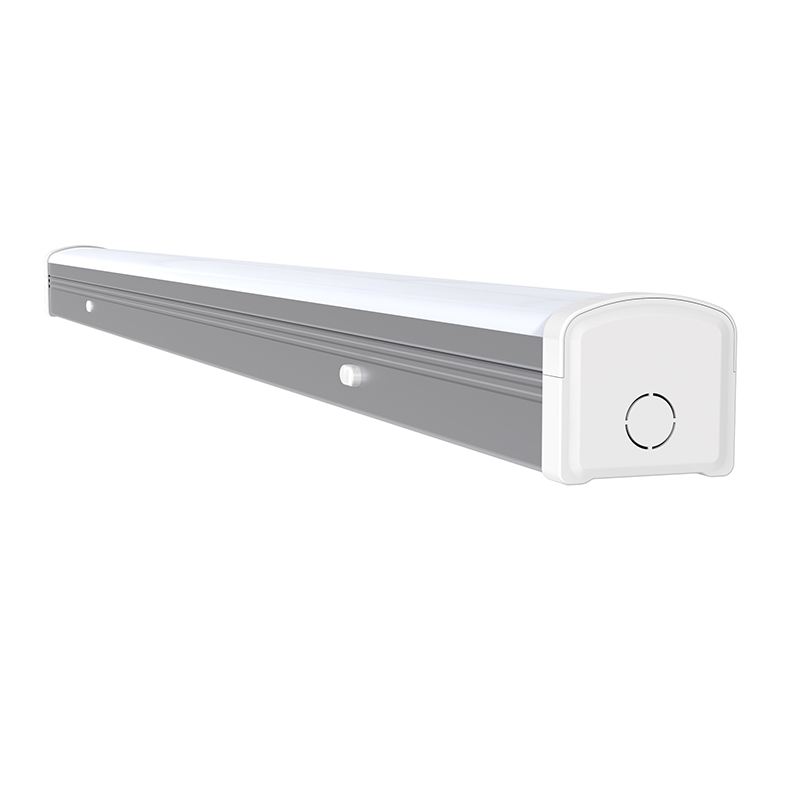

LED Batten Light
V series
This Is a Batten Light That Is Easy To Install
Easily create seamless and aesthetic lighting in a warehouse or commercial space makes it a direct choice for a renovation project.

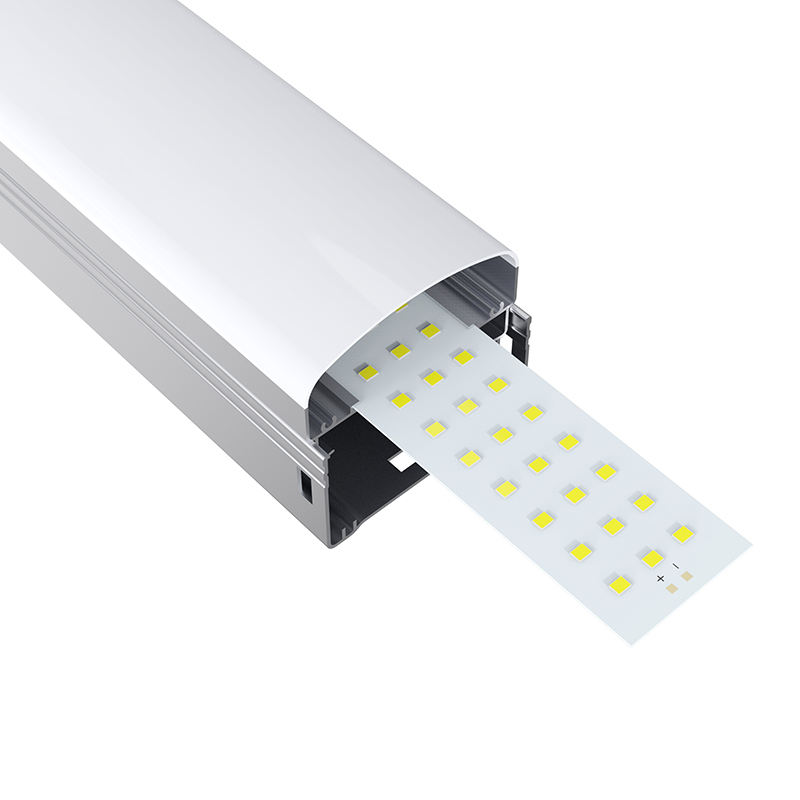

The special design of this product is: the lamp body is separated from the base, flexible installation, easy to take off, the lamp board part is completely dust-proof
Direct replacement for conventional battens, in terms of light performance, length and installation flexibility.
Features
Energy efficient and long lasting: up to 120lm/W and 50khrs L70 lifetime.
Many options available: L600/L1200/L1500/L1800.
The color temperature 3000K ,4000K, 5000K, 6000k. CRI>80Ra and >90Ra.
Optional controls and versions available: 1-10V, PUSH, DALI,
Smart product architecture for tool-free, easy and flexible installation, with through-wiring possibility.

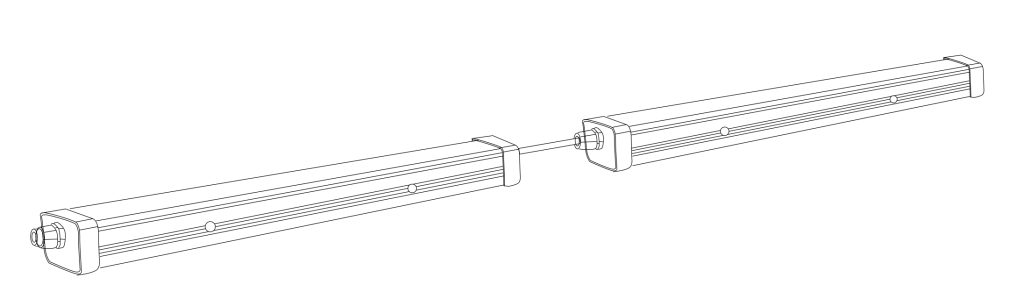

Method of Wiring Linkable
Single Input with IP65 plastic connector, There are 3 kinds of wire for different driver
- With 1M 3×1.0mm² cable for non-dimmable driver.
- With 5×1.5mm² cables for dimmable 0-10V and DALI.
- With 4×1.0/1.5mm² for Emergency kits and motion sensor.

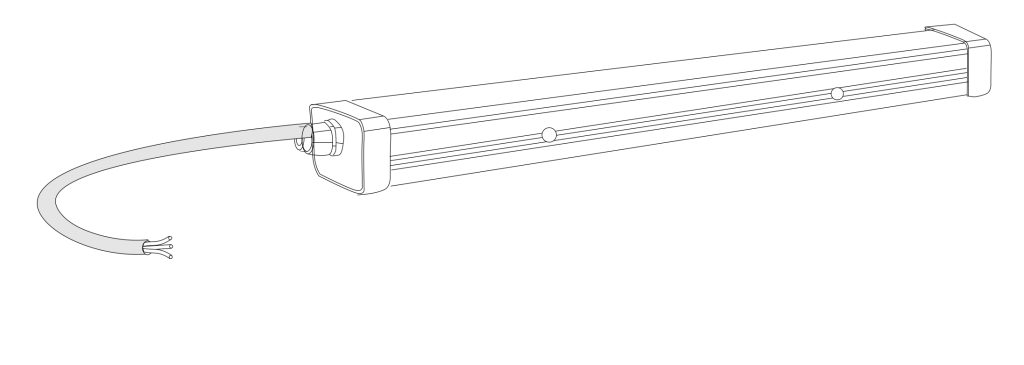

Method of Wiring Non-Linkable
Single Input with IP65 plastic connector, There are 3 kinds of wire for different driver.
- With 1M 3×1.0mm² cable for non-dimmable driver.
- With 5×1.5mm² cables for dimmable 0-10V and DALI.
- With 4×1.0/1.5mm² for Emergency kits and motion sensor.

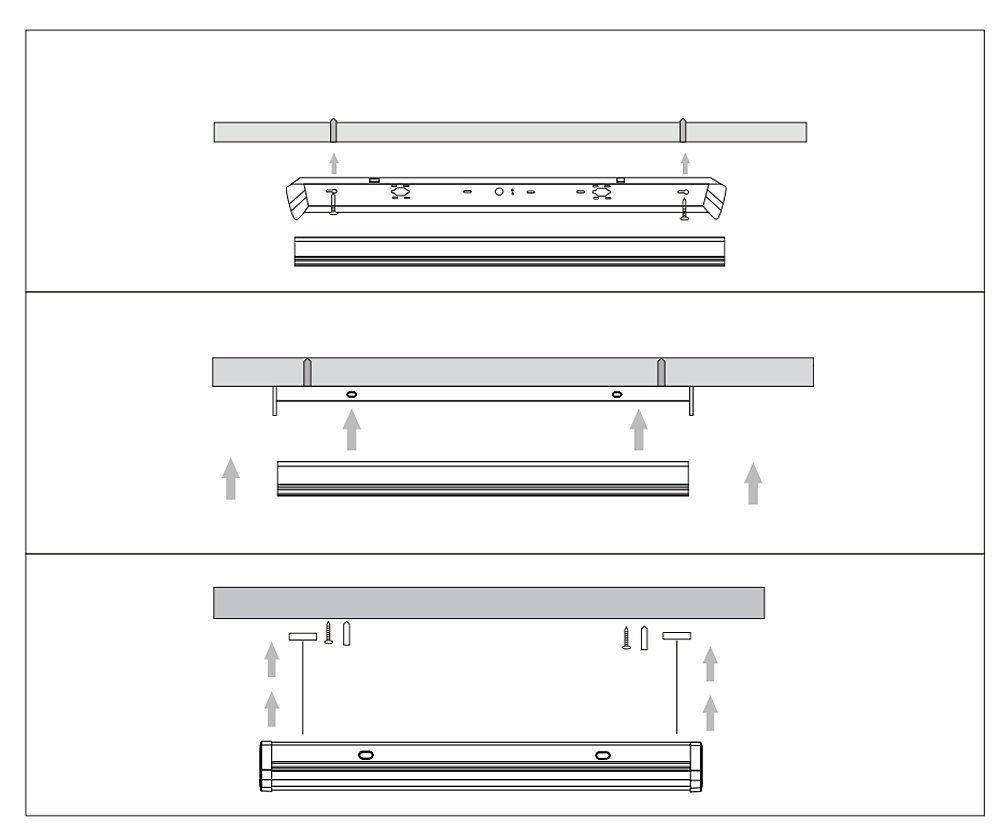

Suspending and Ceiling Mounted Installation
Ceiling Mounted
- Make a right position and screw hole
- Install the lamp into the clips
- Adjust the position of the fixture and clean it
- Screw the clip on the ceiling tightly
Suspending
- Make a right position and screw hole
- Screw the steel cable onto the ceiling
- Hung the fixture under the steel cable and secure the fixture steel cable
- Adjust the position of the fixture and clean it
FAQ of LED Batten Light (V series)
| Technical Parameters | |
| Model | OL-PL20W-V60-S |
| Power | 20W |
| Luminous flux | 2800lm /Transparent 2400lm/Frosted |
| Dimension | 600*73.4*69.5mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Transparent/Frosted(Milky) |
| Metal End Cap color | White |
| IP Grade | IP40 |
| Beam angle | 160° |
| Housing material | Aluminum+PC |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters | |
| Model | OL-PL40W-V120-S |
| Power | 40W |
| Luminous flux | 5200lm /Transparent 4800lm/Frosted |
| Dimension | 1200*73.4*69.5mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Transparent/Frosted(Milky) |
| Metal End Cap color | White |
| IP Grade | IP40 |
| Beam angle | 160° |
| Housing material | Aluminum+PC |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters | |
| Model | OL-PL60W-V150-S |
| Power | 60W |
| Luminous flux | 8400lm /Transparent 7800lm/Frosted |
| Dimension | 1500*73.4*69.5mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Transparent/Frosted(Milky) |
| Metal End Cap color | White |
| IP Grade | IP40 |
| Beam angle | 160° |
| Housing material | Aluminum+PC |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
Benefits
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.
FAQ of LED Batten Light (V series)
- Half aluminum base with driver, cable etc.
- Half of PC housing is fireproof and not breakable that with PCB and LEDs.
- Yes, We can according your order requirements to put kinds of sensor inside, and also can put the emergency system inside.
- The product is IPX0 and therefore does not against water , so we strongly recommend checking the installation environment of the lamps.
- In addition to the above, usually we also provide customers with the color of light source, different functions and brands of power supplies, different sticker and packaging design, different installation methods
