LED Track Linear Light
Replacing the traditional track tube in supermarket
LED Track Linear Light: An Innovative Solution for Exhibition Halls and Shopping Malls
The LED Track Linear Light is a cutting-edge lighting solution specifically designed to cater to the needs of vast spaces like exhibition halls and shopping malls.
- Adaptable Illumination：
The LED Track Linear Light can be adjusted to shine light exactly where it’s needed, ensuring that exhibits in exhibition halls or products in malls are highlighted perfectly. This adaptability allows venue managers to create a dynamic and attractive environment for their visitors.
- Easy Integration with Existing Systems:
The LED Track Linear Lights are designed to be compatible with many current track systems, making the transition to this lighting solution relatively seamless and hassle-free.

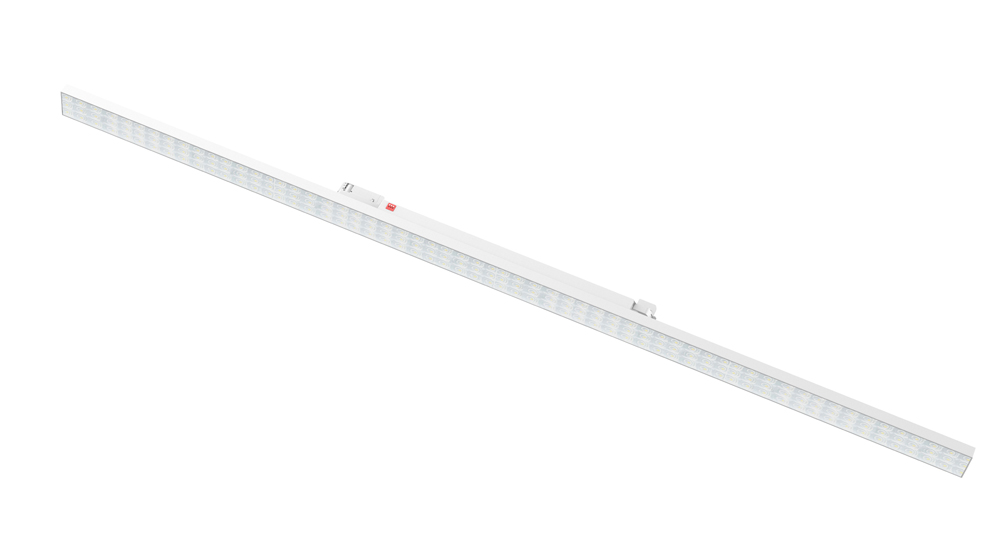

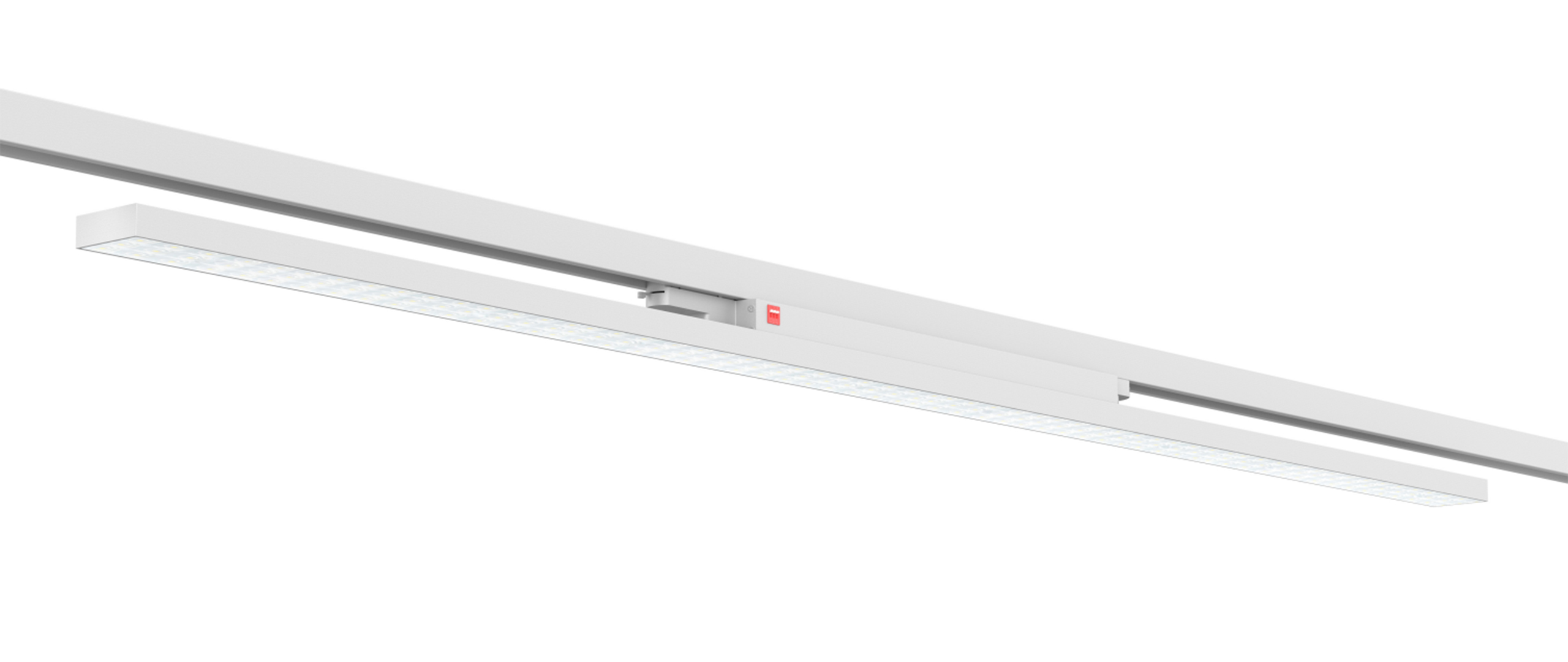

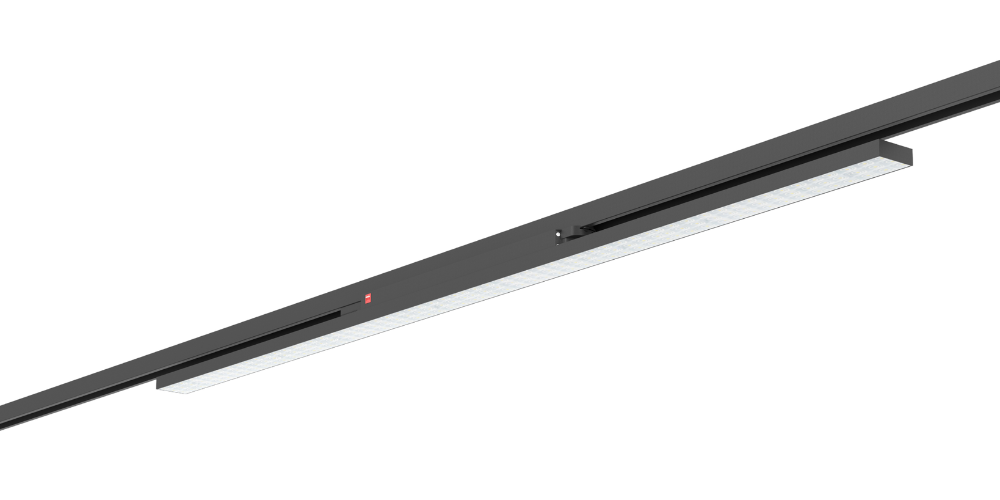

TK02 series
High Luminous Efficacy (160 LM/W), Flexible Optics (Optional Lenses)

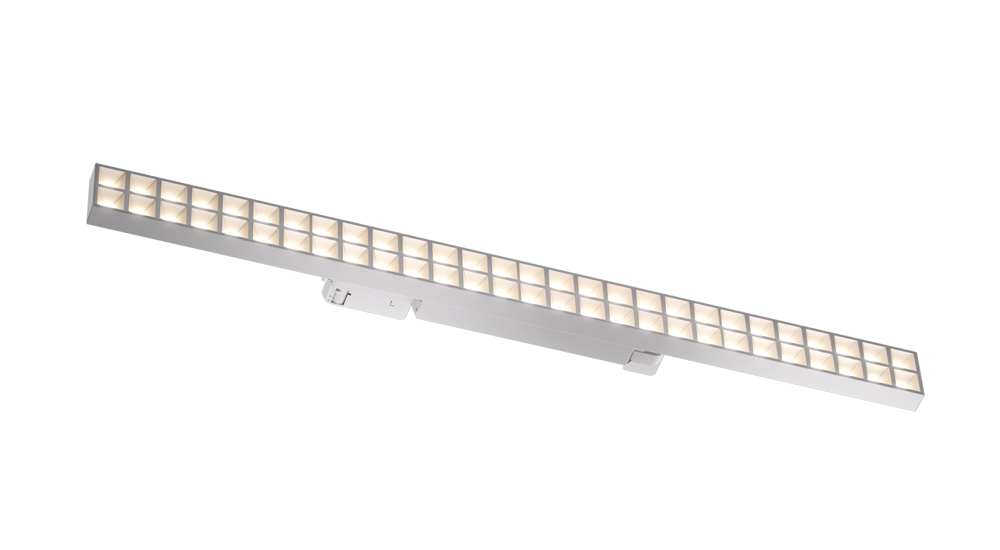

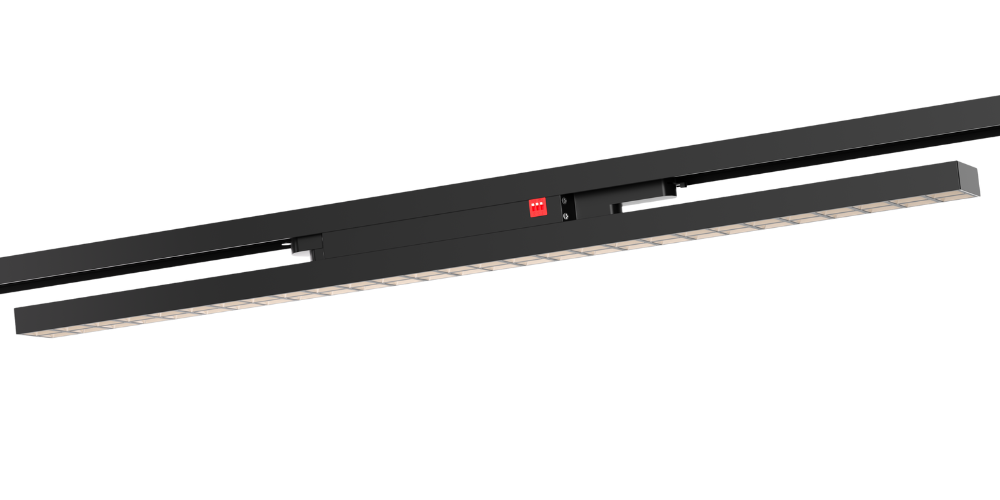

TD02 series
Ultra-Low Glare (UGR<16), Reduce the glare to the minimum. >130LM/W

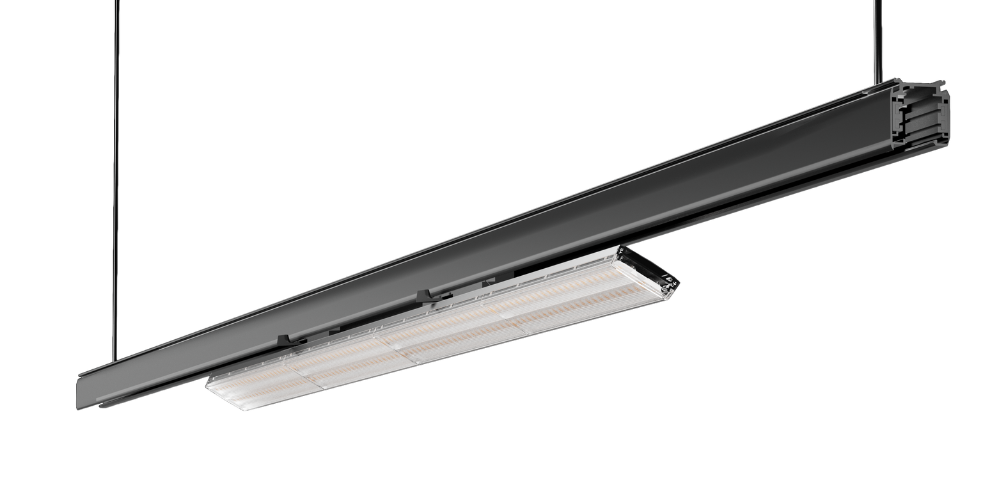

TH Series
The angle of irradiation can be adjusted. >160LM/W.
Our Expert Comparison of OLAMLED Track Linear Lights Simplifies Your Choice
OLAMLED Linear Track Lighting Series (TK02, TD02, TH)Here, we have conducted a professional comparison of OLAMLED’s TK02, TD02 and TH series LED linear track lights, highlighting their commonalities, main differences, and unique advantages to assist users in making product selections. We believe that there is always one that can be used for your project.
Commonalities (Common Features)
Power Switching (DIP Selectable)
The TK02 and TD02 series feature DIP switches for adjustable output power. The TH series expands this functionality to include CCT and circuit selection.
Track Compatibility
Designed to be compatible with multi-wire (3/4-wire) track systems, adhering to common European standards.
Ingress Protection (IP)
All rated at IP20, suitable for indoor, dry environments only.
Warranty: All products are backed by a 5-year warranty.
Differences & Unique Advantages of Different Track Linear Lighting Series
| The following table lists the key differentiating factors for each series along with their unique value propositions. | ||||
| Feature Dimension | TK02 Series | TD02 Series (UGR<16) | TH Series | Analysis & Unique Advantages |
| Product Positioning | High-Efficacy Standard | Ultra-Low Glare Professional | Multi-Functional, Adjustable System | Clear positioning to serve distinct core needs. |
| Max. Luminous Efficacy | >160 LM/W | >130 LM/W | >160 LM/W | TK02 Advantage: Superior energy efficiency. Highest light output per watt, ideal for applications prioritizing energy savings and general illumination. |
| Optics / Glare Control | UGR<24, Optional 60°/90° /asymmetric 20° lenses | UGR<16, 80° (Lens + Reflectors) | 90° / Double Asymmetric | TD02 Advantage: Core differentiator. Meets the stringent visual comfort requirements of premium environments like museums, high-end retail, and galleries. |
| CCT (Correlated Color Temperature) | Fixed CCT (varies by model) | Fixed CCT (varies by model) | 3000K-6000K, Field-Selectable | TH Advantage: Unparalleled flexibility. A single product can adapt to various ambiances and applications, reducing inventory complexity. |
| Installation & Adjustability | Fixed | Fixed | Tiltable (±30° post-installation) | TH Advantage: Allows for precise aiming after installation. Critical for wall-washing, accent lighting, and adapting to specific layout changes. |
| Size & Wattage Range | 120cm/150cm (30-55W) | 120cm/150cm (30-55W) | 60cm/120cm/150cm (15-55W) | TH Advantage: Broadest range of options. Covers applications from low-power auxiliary lighting to high-power main illumination with multiple size choices. |
| Dimmable | Compatible with 1-10V DALI-2 driver | Compatible with 1-10V DALI-2 driver | ON/OFF only | The driver and the track adapter of TD02 and TK02 are separate from each other. Therefore, there is more flexibility in choosing the brand and functions of the power supply. However, the TH series has a multi-function integrated feature, so it only has the ON/OFF function. |
| Target Application | Supermarkets, Malls, Restaurants, Showrooms | High-End Malls, Museums, Premium Showrooms | Commercial, Industrial, Warehouses | TD02 targets top-tier commercial spaces; TH has the widest application range, including industrial environments. |
How to Select The Appropriate Track Linear Lights For Your Project in Different Application
The optimal choice depends entirely on the specific requirements of the project:
Select the TK02 Series if:
Your primary objectives are maximizing energy efficiency and achieving high light output for general illumination. It is the ideal high level and high-performance solution for large-scale commercial applications like supermarkets and big-box retail stores.
Select the TD02 Series if:
This project demands an extremely high level of visual comfort and extremely low glare. This series of products is the top choice for environments with extremely high requirements for lighting quality, such as art galleries, museum exhibitions, high-end boutique retail stores, and luxurious venues. It provides high-quality solutions for critical applications.
Select the TH Series if:
Maximum flexibility and adaptability are required. If you need to adjust power, color temperature, and physical aim post-installation, the TH series will be the best choice. Its diverse size specifications and the feature of being applicable even in industrial environments make it an all-round product suitable for complex or constantly changing lighting designs.

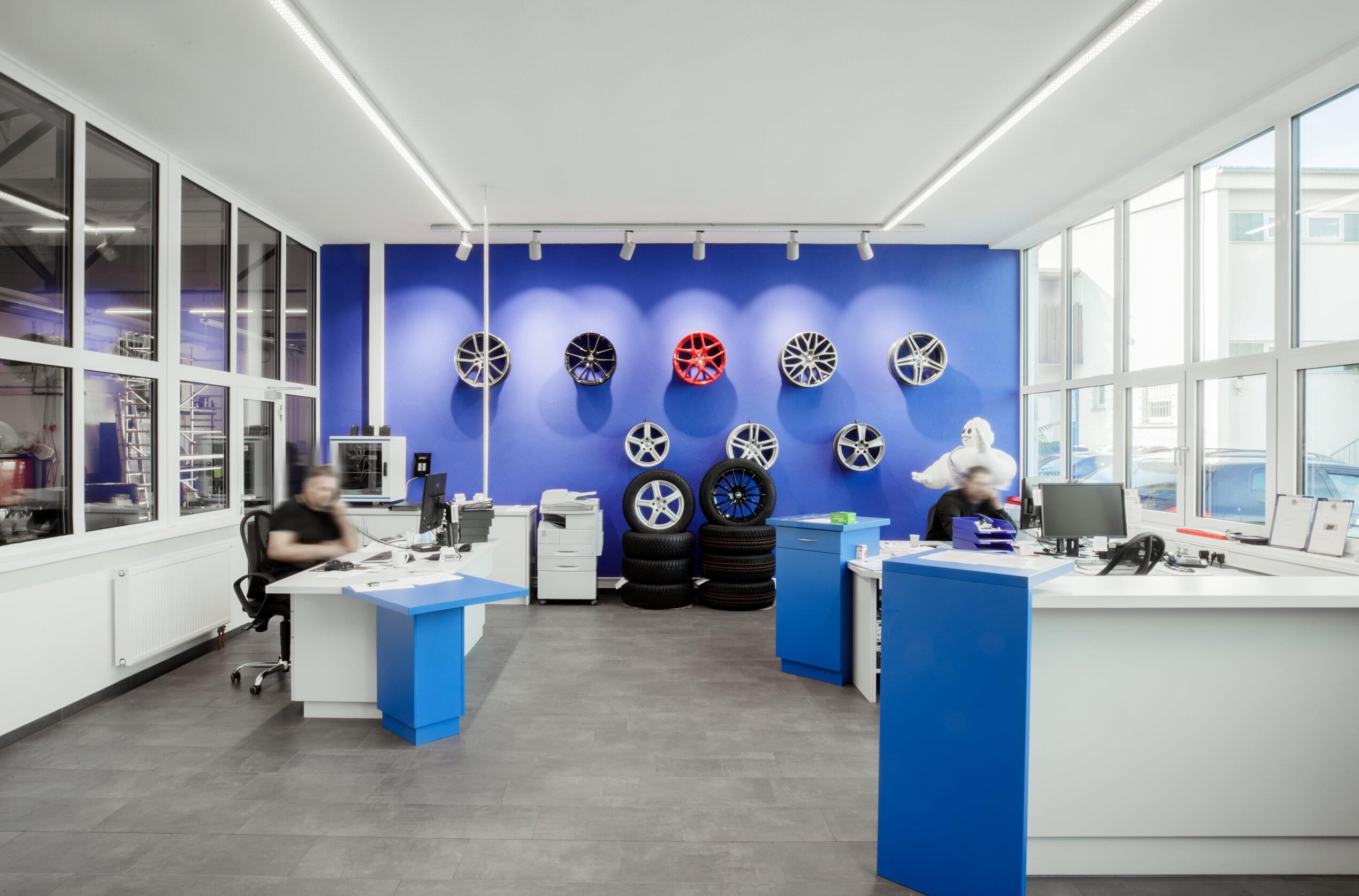

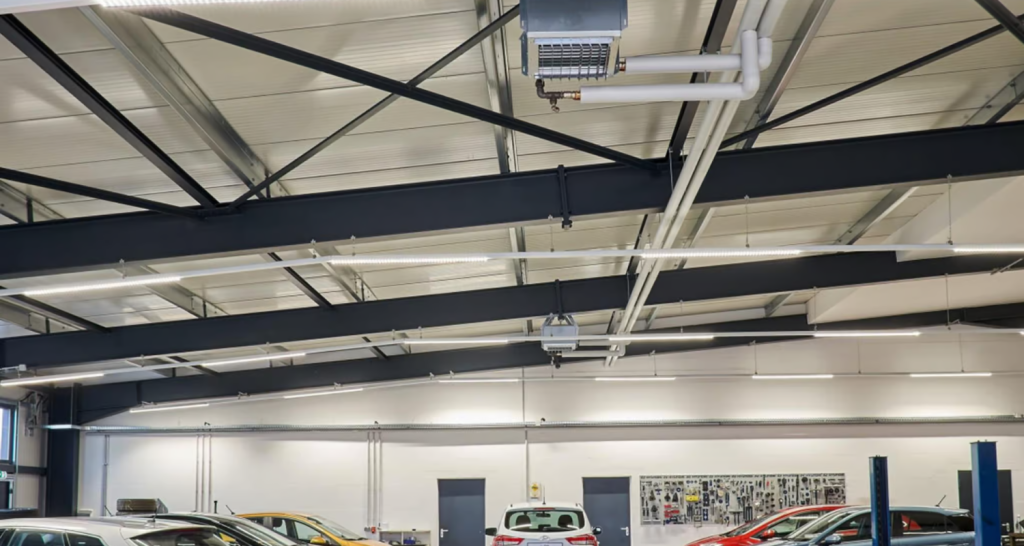

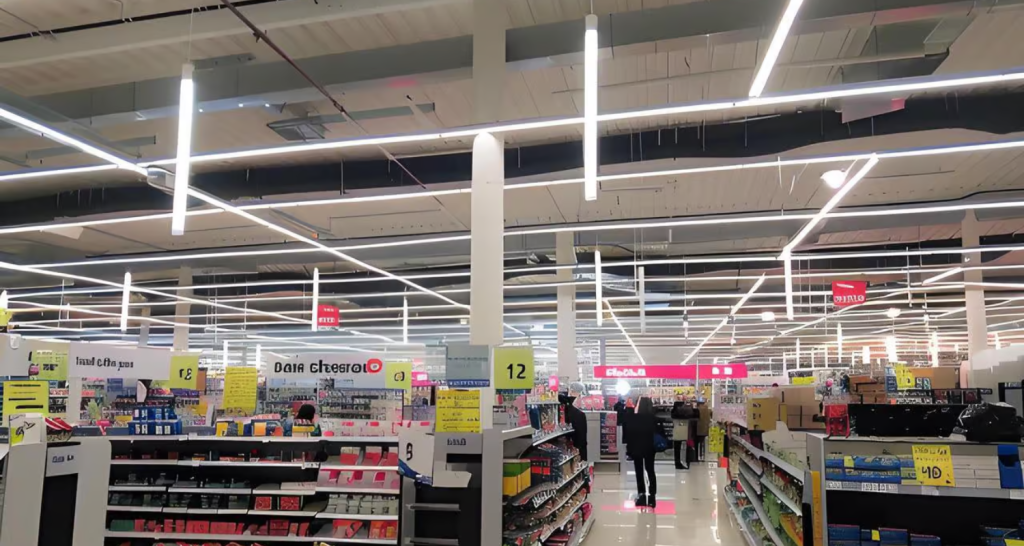

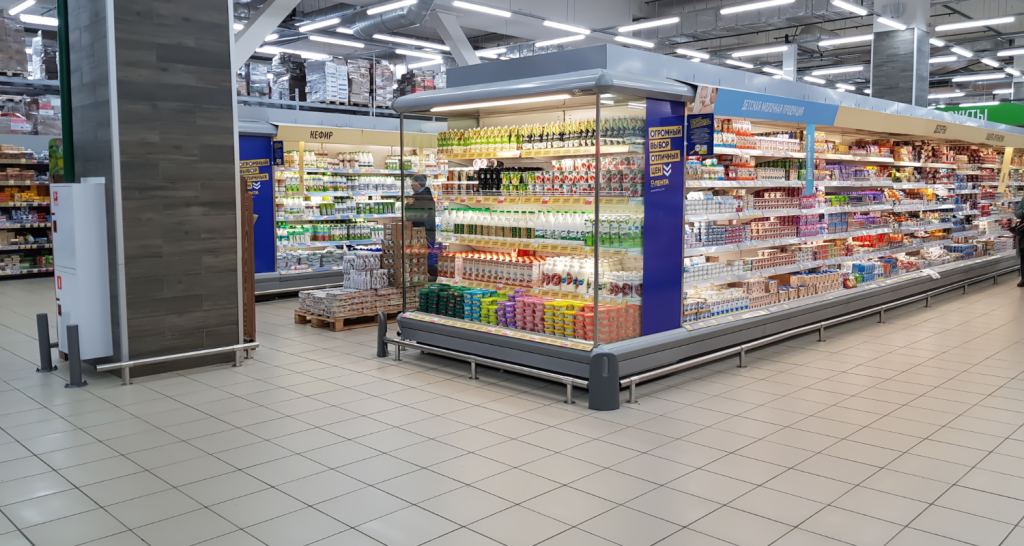

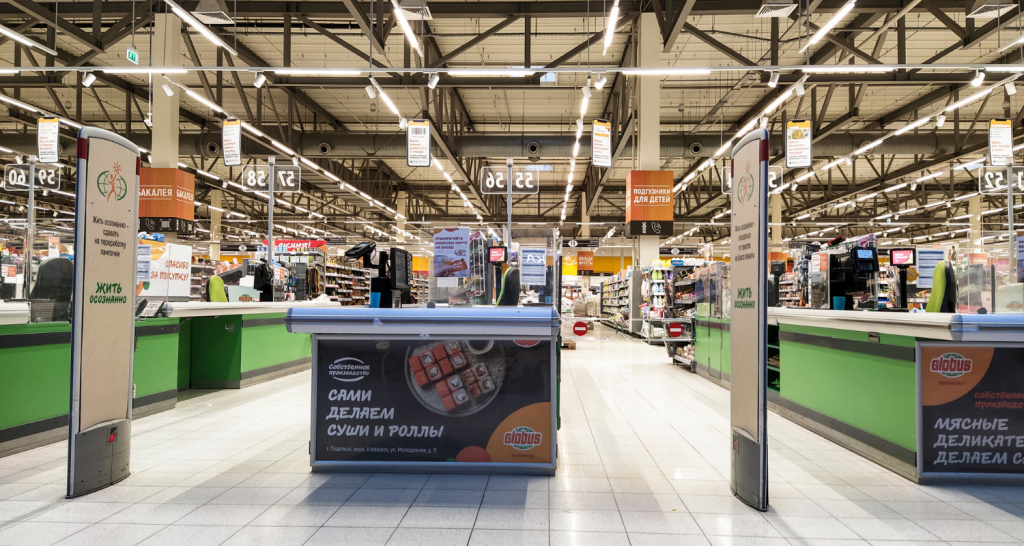

Wide range of Application Scenarios
- With its versatile design and advanced features, the LED Track Linear Light adapts effortlessly to diverse environments.
- Whether illuminating a bustling shopping mall or showcasing art in an exhibition hall, it’s the optimal choice for a myriad of application scenarios.
3 Ways to Install Our LED Track Linear Lights
Recessed
With this technique, the lights are embedded or “recessed” into the ceiling, resulting in a sleek and clean appearance. This method is great for areas where you want the lighting to blend seamlessly with the architecture, offering an unobtrusive lighting solution.

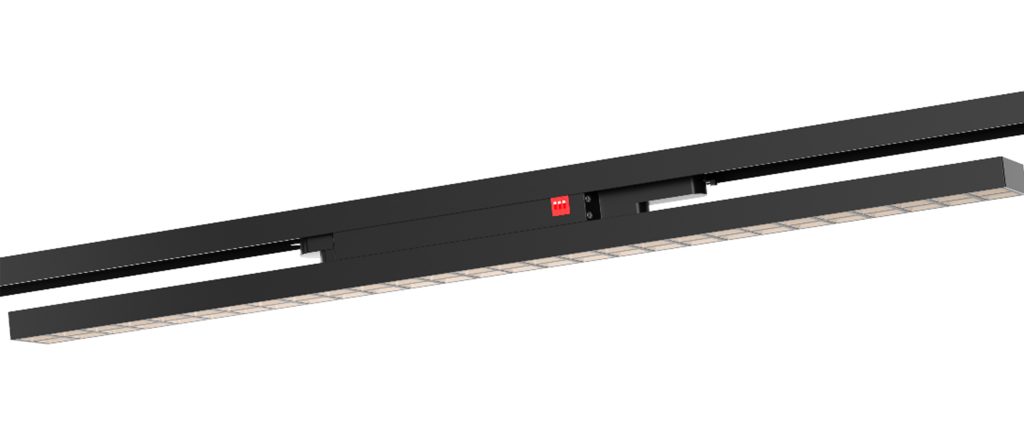

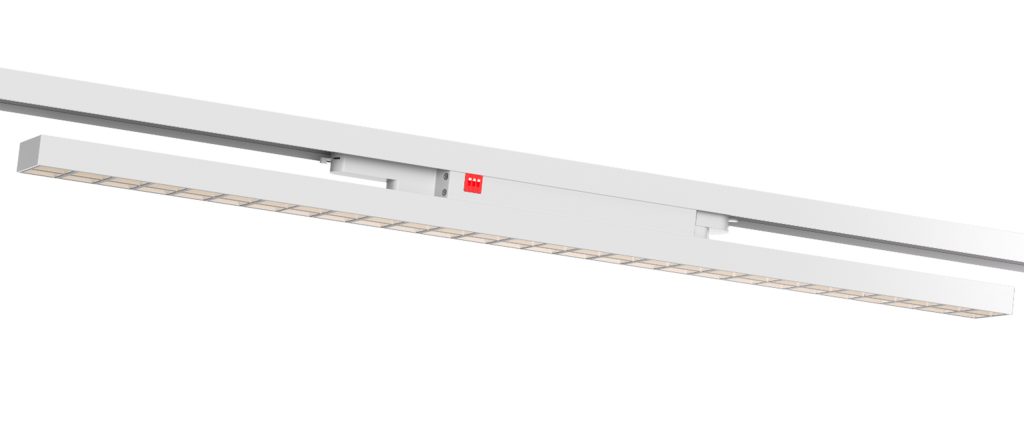

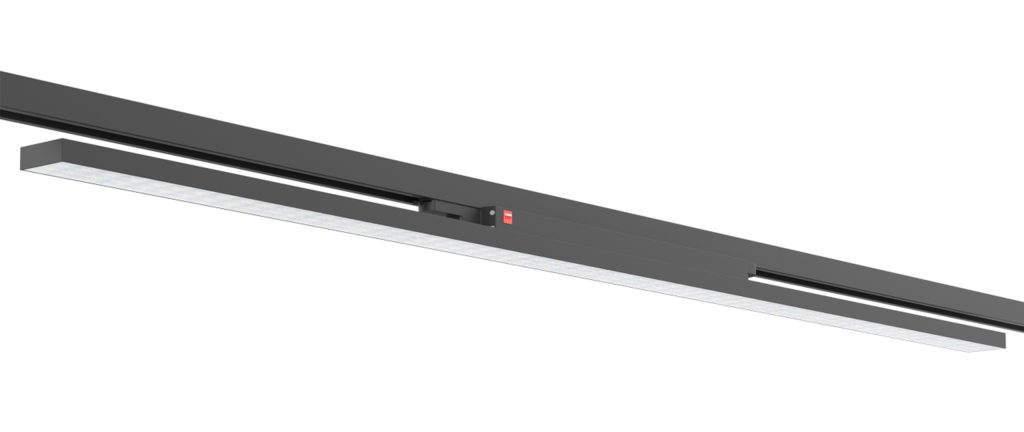

Track
This is the most popular method of installation. The lights are mounted directly onto tracks that run along the ceiling. This method offers flexibility as lights can be easily moved, adjusted, or added to the tracks as needed, making it a favorite choice for many spaces.
Suspended
In this method, the lights are suspended from the ceiling using rods or cables. This is ideal for spaces with high ceilings or when you want the lights to be closer to a particular area or display, creating a more focused illumination.
Custom LED Track Linear Light Solution
Not only producing LED Lighting products, but also providing solutions for your specific needs.
Track Rail accessories
We can provide the matched rail for track panel light(The standard model: 4 wires 3 circuit). Meanwhile, upon your demand, different specifications are also available. Our R&D team are always with you, persistently providing you with the most professional technology, high quality and high-performance solution.
LED Driver With Different Functions
We can provide LED driver solutions with different functions according to project requirements, such as: on/off, 0-10V dimming, DALI dimming and Tunable white, all power supplies comply with safety certification and no strobe, high conversion efficiency, high PF solution, in line with environmental protection and energy efficiency standards requirements, allowing you to flexibly adjust the lighting brightness and atmosphere
CCT and CRI of LEDs
The color temperature and CRI(color rendering index): We can provide different color temperature from 2700-6500K, and the CRI(CRI>80Ra,90Ra, 95Ra) according to your purpose and scene, SDCM<3 or 5, allowing you to enjoy the most suitable lighting color and texture.
Packaging & Logo & Manual Design
We can supply small batch instructions, labels, packaging design and printing for your order, regardless of size. We have an experienced team of designers and printers who can create attractive and informative materials for your products. Whether you need simple or complex design, color or monochrome printing, smooth or matte finish, OLAM can meet your expectations and requirements. always use high quality materials and advanced equipment to ensure the durability and clarity of our products and provide fast delivery and competitive prices.
Our Ability to Accomplish What We Have Stated Above
Quick Response
With an engineering design and development team with over 17 years of industry experience, we can provide you with:
- 1 day to provide DIALUX simulation
- 2 days to produce 2D/3D drawings
- 3-5 days for prototype
- Small batch customization
Production Control
With our own production and quality control team, we can not only quickly and efficiently arrange the production schedule to meet your order delivery but also protect your order from raw materials to production process and shipping inspection.
Powerful Supply Chain
With 17 years of development, OLAMLED has its own perfect supply chain system. OLAMLED has very mature and stable suppliers to control the quality, price and service of material suppliers, which can provide customers with main effect and customized services.
Professional Service Capability
We have a team of over 17 years of foreign trade export services, serving more than 100 countries, we can provide professional solutions for different countries' import and export and product specification requirements and product certification consulting solutions
FAQs for LED Track Linear Light
Here are some most popular FAQs during our 12 years experience as a LED lighting solution provider, and please feel free to contact us if you have more questions.
Can the size be customized?
Depending on the customer’s requirement, We can expand the lamp in length based on the specified lens. Instead, we can’t change the appearance and size of track panel light. If possible the professional engineering team will be looking for practical solutions to the problems.
Whether can I choose a certain CCT(color temperature) or CRI(Color Rendering Index)?
Our R&D team would match the led source you mentioned upon different usage scenarios or projects.
Can I choose the specified driver?
We offer drivers with different brands and functions. The common of which are TRIDONIC, PHILIPS, OSRAM, LIFUD and BOKE. And non-dimmable, 0-10V and DALI dimming for option.
Could you provide DIALUX if needed?
Yes. The expert engineer can offer quick spatial simulation, just tell us the size of installation space and brightness demand.
Can the customer's LOGO be printed on the package?
Also just tell us with detailed information, like logo and product model, and then we can supply the brand label design, including not only labels but also instruction books and special packing boxes.
Can I choose the beam angle?
For TK01 Series, there are threebeam angel lens, like 60 degree, 90 degree and double asymmetric 20 degree. But for TD01 Series, only single beam angle can be used.
Trusted by Leading Brands

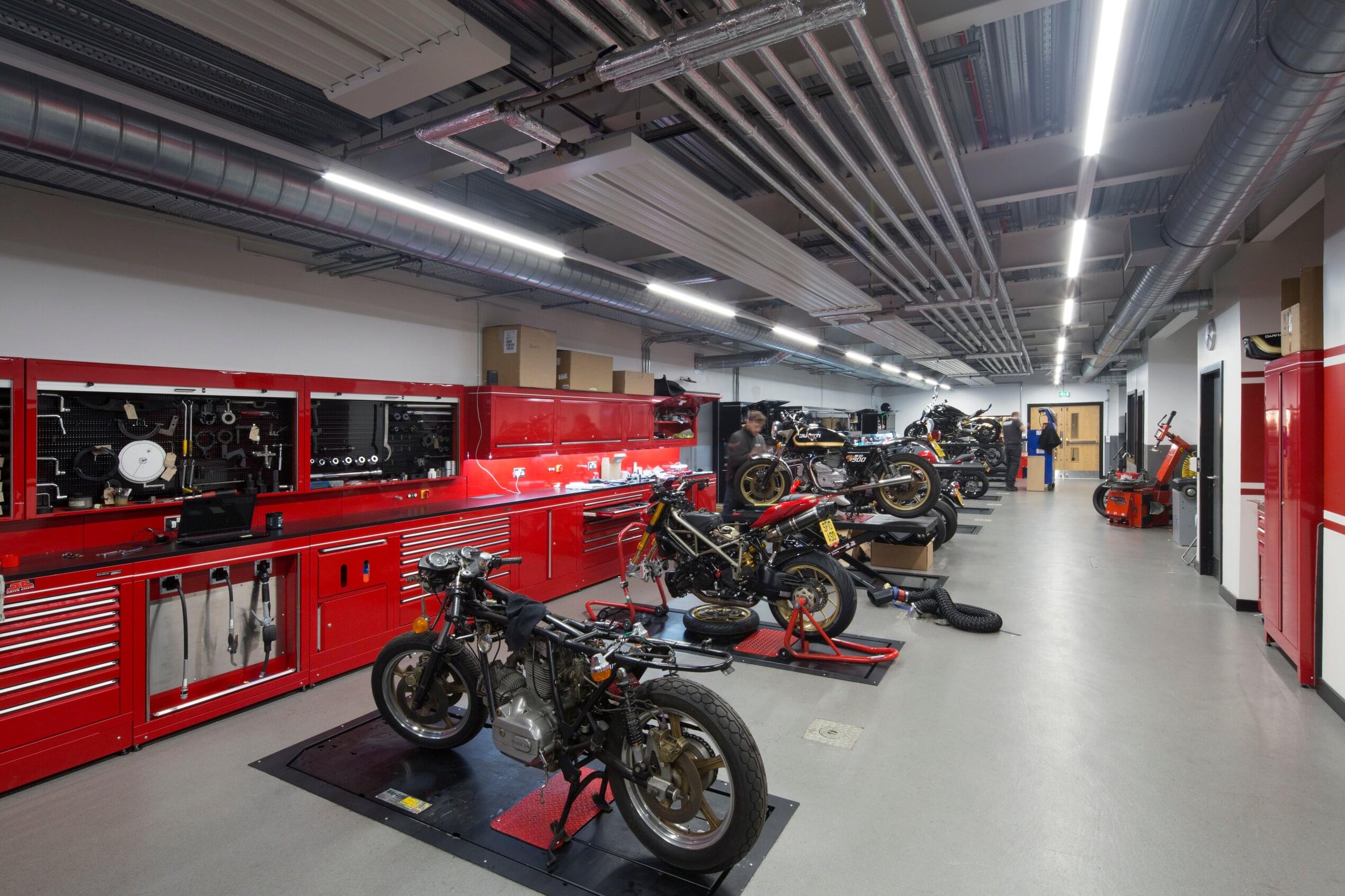

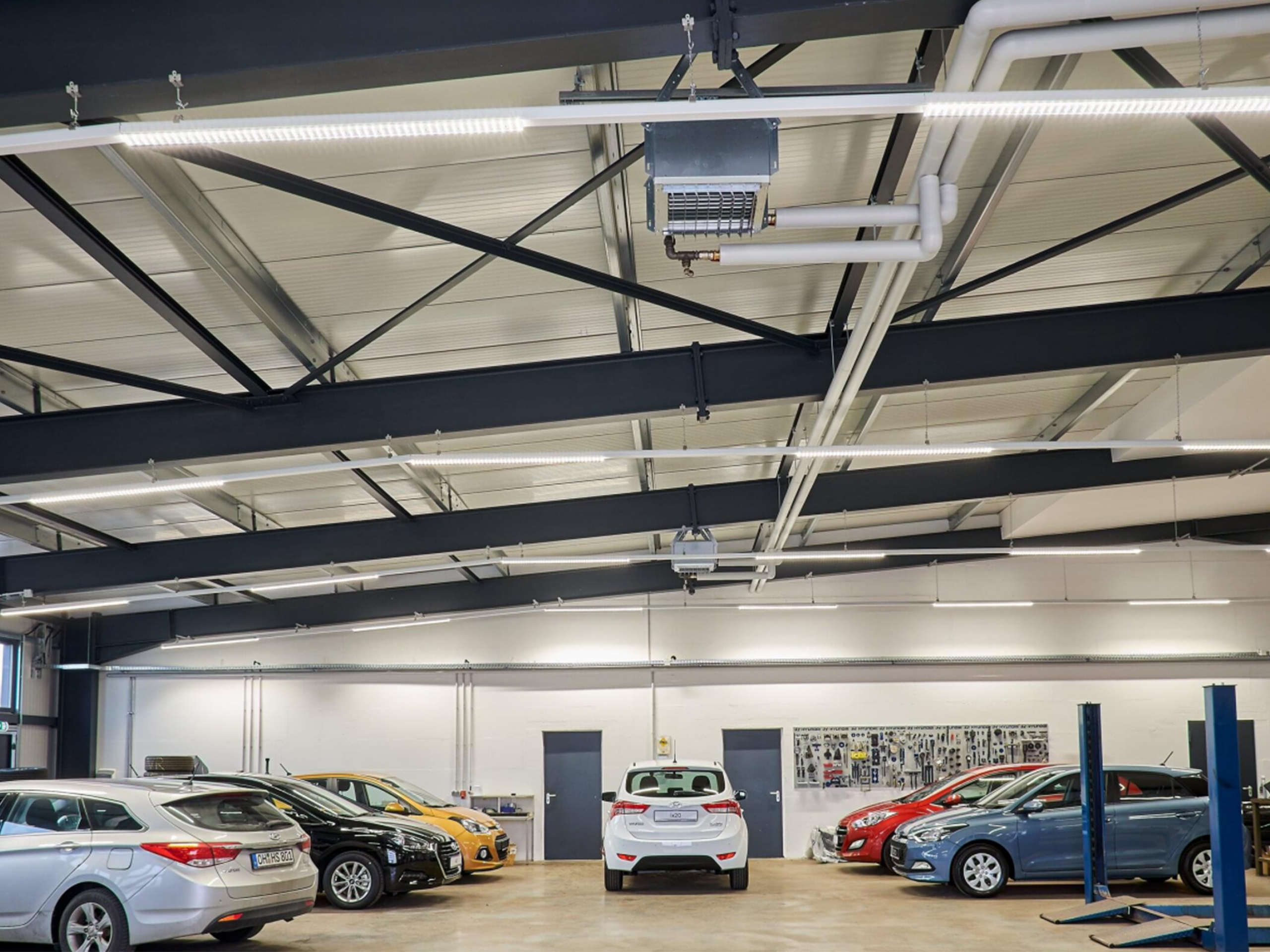

LED linear lighting delivers bright, efficient light in workspaces. It boosts visibility, helping people work safely and stay productive.

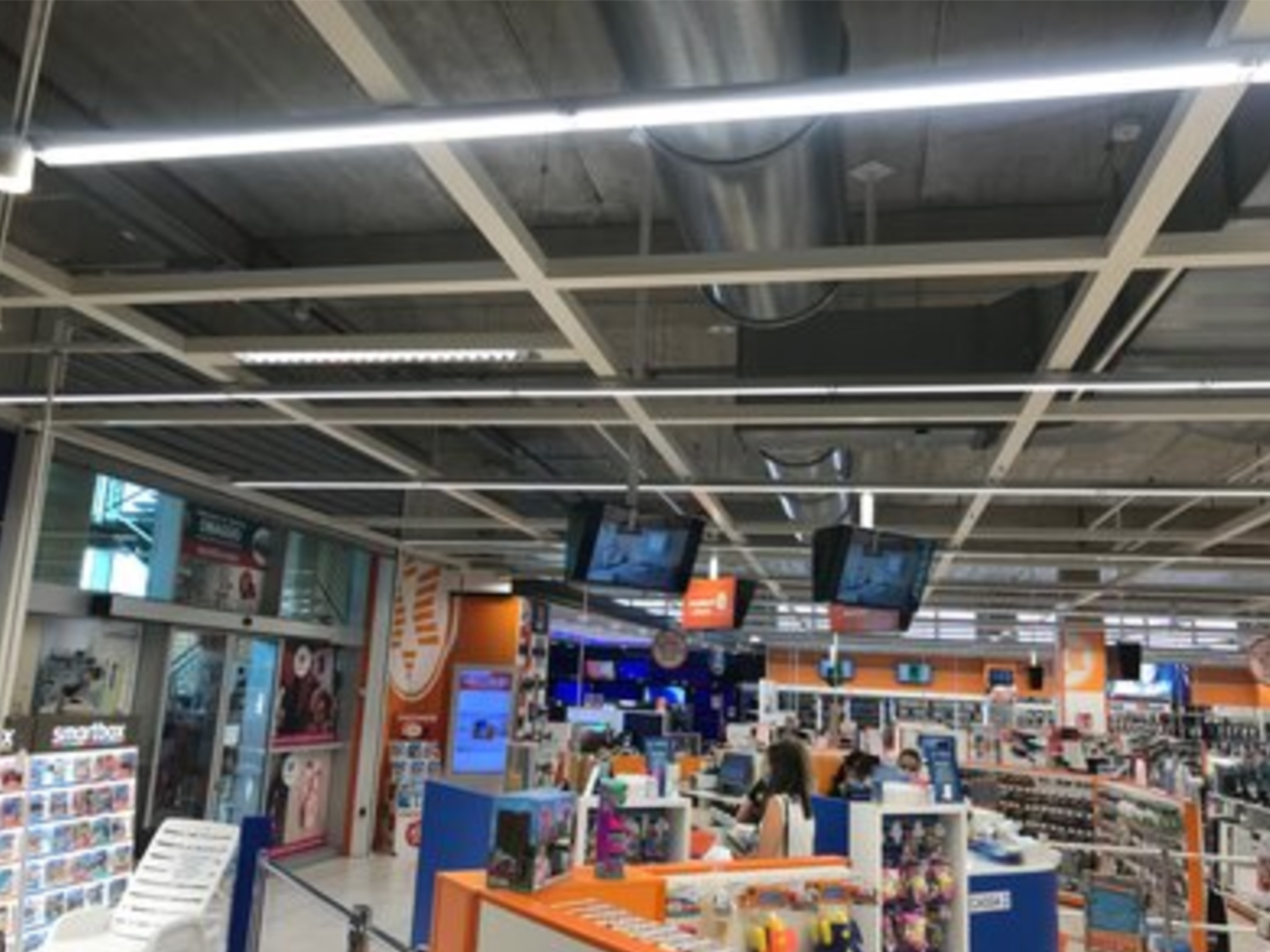

LED track lights cut glare and reflections in shopping malls. They make the space bright and comfortable for shoppers.
