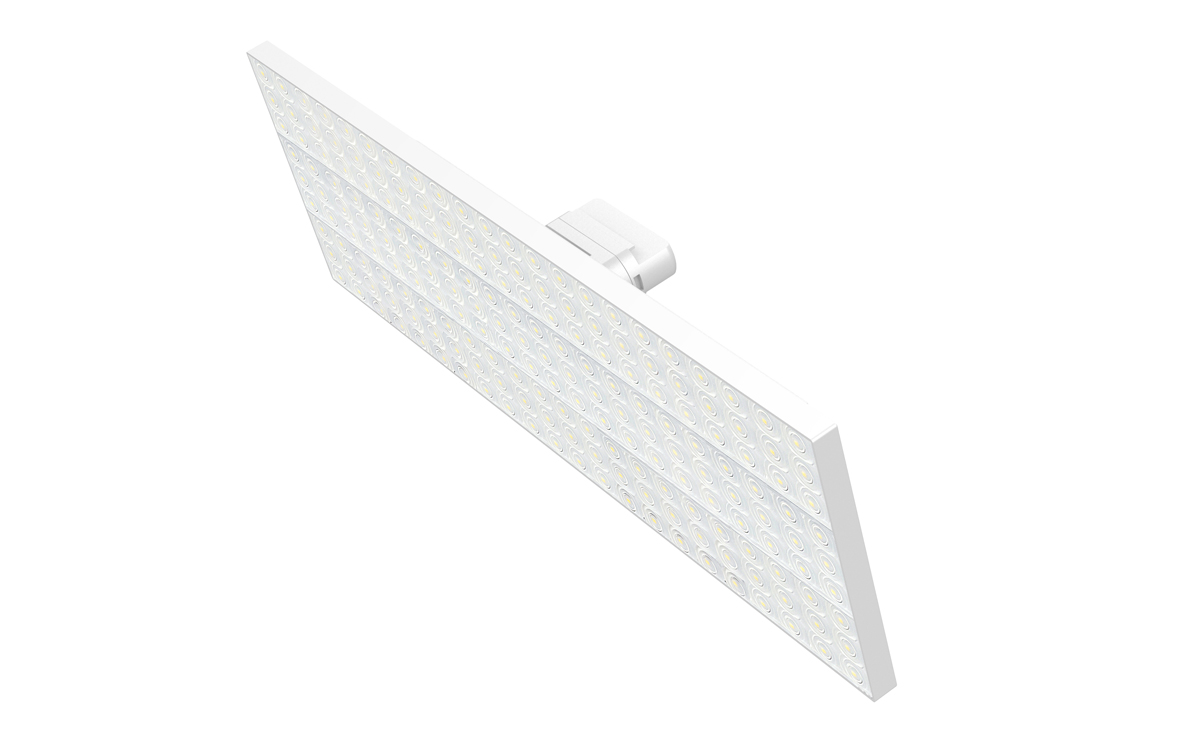

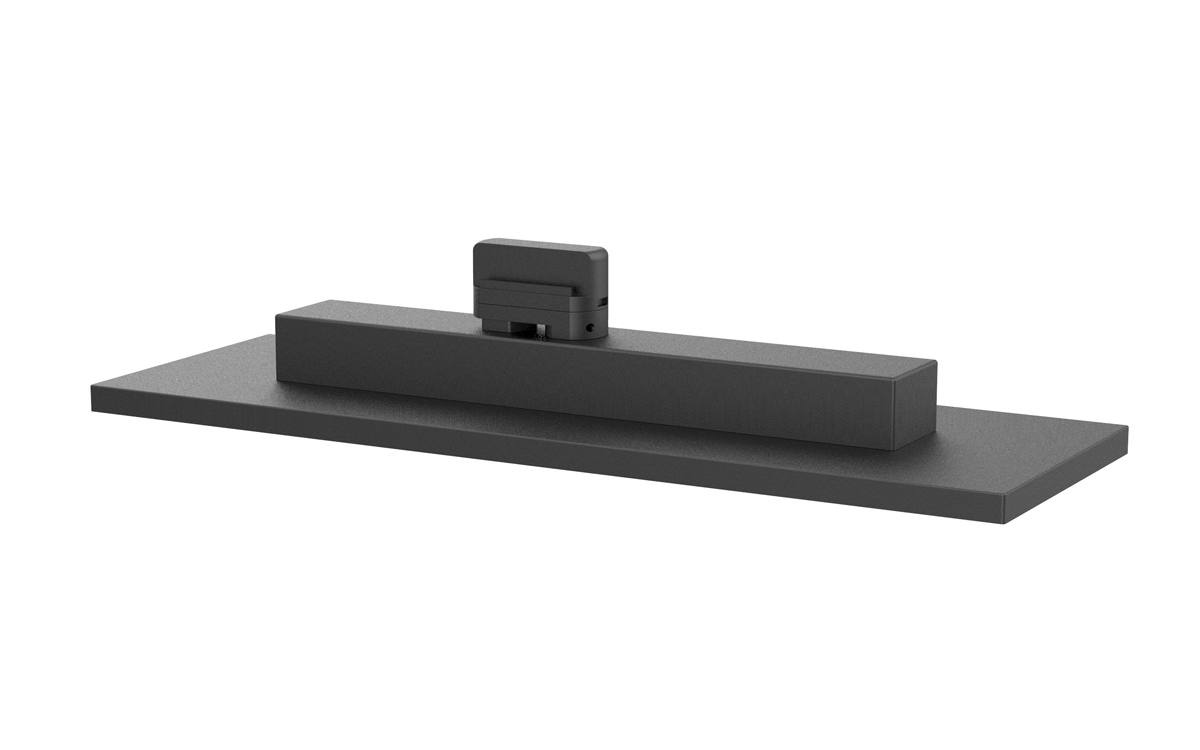

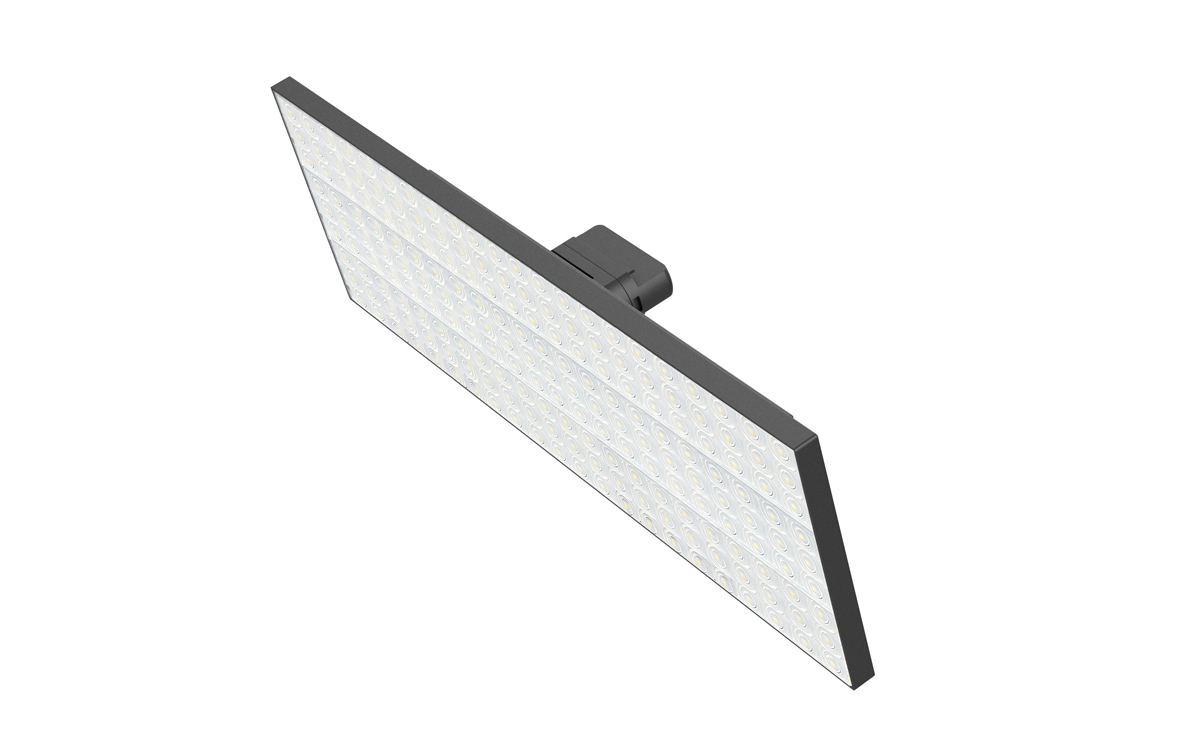

LED Track Panel Light TK01 Series (>160lm/W )

Fully compatible with traditional track systems

Track panel lighting consists of a series of lights that run on a certain track structure. With universal track adapter, it can match existing European 3-circuit track rail brands, such as Eutrac, Global and Staff.

  • High luminous intensity, up to 160LM/W
  • Adopt PMMA efficient lens, lower decay and high UV tolerance
  • Unique aluminum housing(6063-T5) with good heat dissipation
  • Aluminpcb(PCB) with high thermal conductivity and thermal resistance.

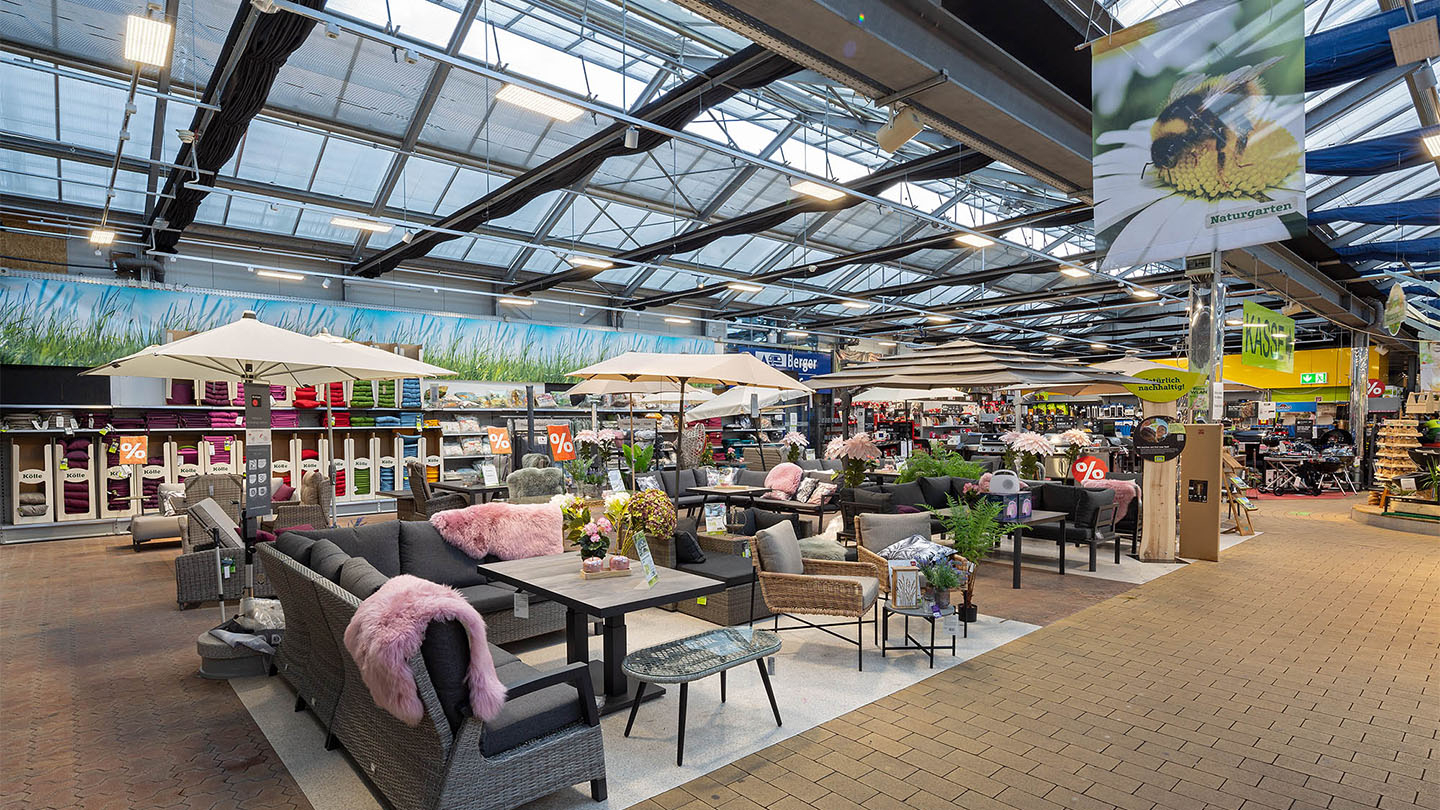

  • Widely used in shopping malls, supermarkets, warehouses and brand chain stores

The track light with adjustable wattage

  • 4 wire 3-phase track adapter
  • 350° flexible horizaontal rotation
  • Beam angle: 60º/90º/DS20º (Double Asymmetric)
  • On/Off, DALI and 1-10V dimming driver for option
  • Wattage dipswitch: 68WD can adjust 44W, 52W, 60W,68W

Extended Track Panel Light

Especially for some supermarkets, Compared with traditional grille panel light, track panel light supplies wider lighting distribution in the designated retail area. It can reach 1152mm in length and 188mm in width.

Innovative optical design

Select the appropriate beam angle based on the application scenario. Most commonly, you can choose 60°and 90 °

350° horizaontal rotation

The track panel light can be rotated around 350 degrees, which allows the lighting to focus on the special areas. Such a flexible design will provide you with better customer experience.

Wattage Adjustable

The adjustable function can realize lighting control and scene setting. To some extent, it replaces the common dimmer system. There’s no need to add an extra dimmable driver. Which can greatly save your inventory space and meet different project requirements. Wattage dipswitch: 44/52/60/68W CRI:>80Ra/90Ra

Easy to Install

Installation Mod:

  • Track on the trunking system
  • Suspension
  • Recessed

Track Installation Is The Most Common:

  • Turn two shafts around 90°as drawing shown to lock the adaptor in the track
  • Adjust the circuit “ OFF>1>2>3>OFF”
  • Completed adjustment and installation

Specs

Technical Parameters


Model


OL-TK01-50W


Power


50W


Luminous flux


8000lm


160lm/W


Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



Technical Parameters


Model


OL-TK01-60W


Power


60W


Luminous flux


9600lm


160lm/W


Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



Technical Parameters


Model


OL-TK01-70W


Power


70W


Luminous flux


11200lm


160lm/W


Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



Technical Parameters


Model


OL-TK01-68WD


Power


68W (Swith To 44W 52W 60W 68W)


Luminous flux


7040lm-10880lm


160lm/W



Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



Technical Parameters


Model


OL-TK01-50W


Power


50W


Luminous flux


8000lm


160lm/W


Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



Technical Parameters


Model


OL-TK01-60W


Power


60W


Luminous flux


9600lm


160lm/W


Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



Technical Parameters


Model


OL-TK01-70W


Power


70W


Luminous flux


11200lm


160lm/W


Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



Technical Parameters


Model


OL-TK01-68WD


Power


68W (Swith To 44W 52W 60W 68W)


Luminous flux


7040lm-10880lm


160lm/W


Dimension


L578*W188mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


60°/90°/DS20°


Housing material


Aluminum 6063+PMMA Lens Cover


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


5 years



BENEFITS OF TRACK LIGHTING

Enhance the aesthetic: Elegant and generous design. Combined with the long linear light and track system, the unique beauty makes it differently attractive than any other type of light.

Save space: it supplies more planning space if laying out Track panel Light in the matched rail attached to the ceiling.

FAQ of TK01 Series

Yes. The standard models are 40W, 50W, 60W and 70W.

White and black for option. but we can also use the color customers mentioned.

SMD2835. The brand is Liumileds.(80 and 90Ra for option)

The standard brand is PHILIPS. Other drivers are also available, such as Lifud, BOKE, Tridonic, OSRAM etc.
