UGR<19 LED Tubular Light
Ø80mm
Ø80mm sealed polycarbonate tube for low-glare industrial and food-processing lighting — UGR<19, IP69K / IP67, IK10, 316L stainless steel hardware.

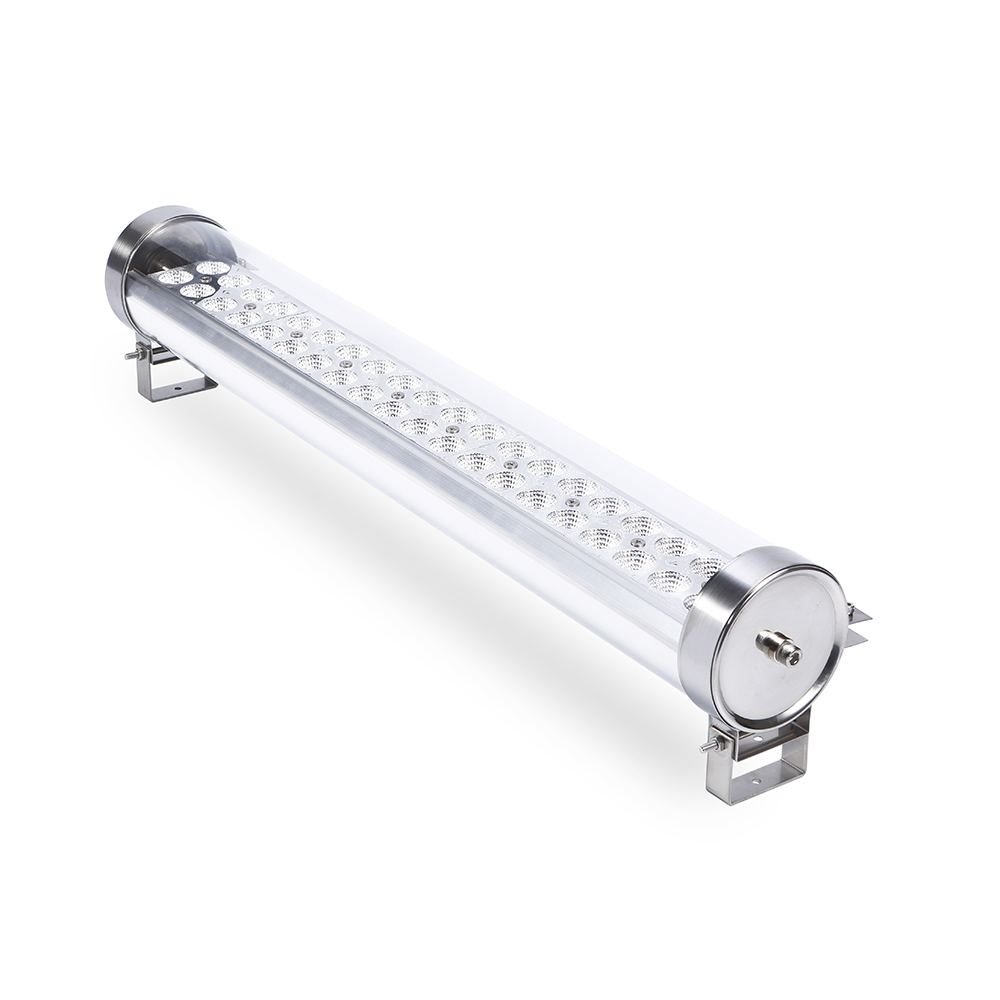

Ø80mm UGR<19 LED Tubular Light
Ø80mm UGR<19 LED Tubular Light Features:
- PC Housing to certify the resistance of the luminaire in high chemical, corrosive and abrasive situations”
- Shock resistance：
- PC Housing resisting IK10 mechanical impacts.
- Resistant to thermal and mechanical impacts even at very low temperature.
- Integrated shell principle, absorb thermal expansion and mechanical stress.
- A powerful power supply designed for intensive operation at low temperatures.
- Designed to meet the hygienic requirements of the food industry:
- Absolutely durable and impermeable IP68/IP69K
- No frost formation
- High resistance to chemical detergents due to co-extrusion
- Polycarbonate and methacrylate shells
- Low glare design： UGR<19
Diameter 80mm of LED Tubular Light
- Stainless steel 304L/316L End caps and fixing Accessories
- Gaskets Silicone
- Imperviousness IP68,IK10 and IP69K
- Shock resistance: IK10/PC, IK06/PMMA
- Fire resistance : 850°C/PC
- Detachable drives and efficient modules
- Lighting source: SMD2835, CRI 80Ra or 90Ra
- Clear Housing only
Single Input — Non-linkable

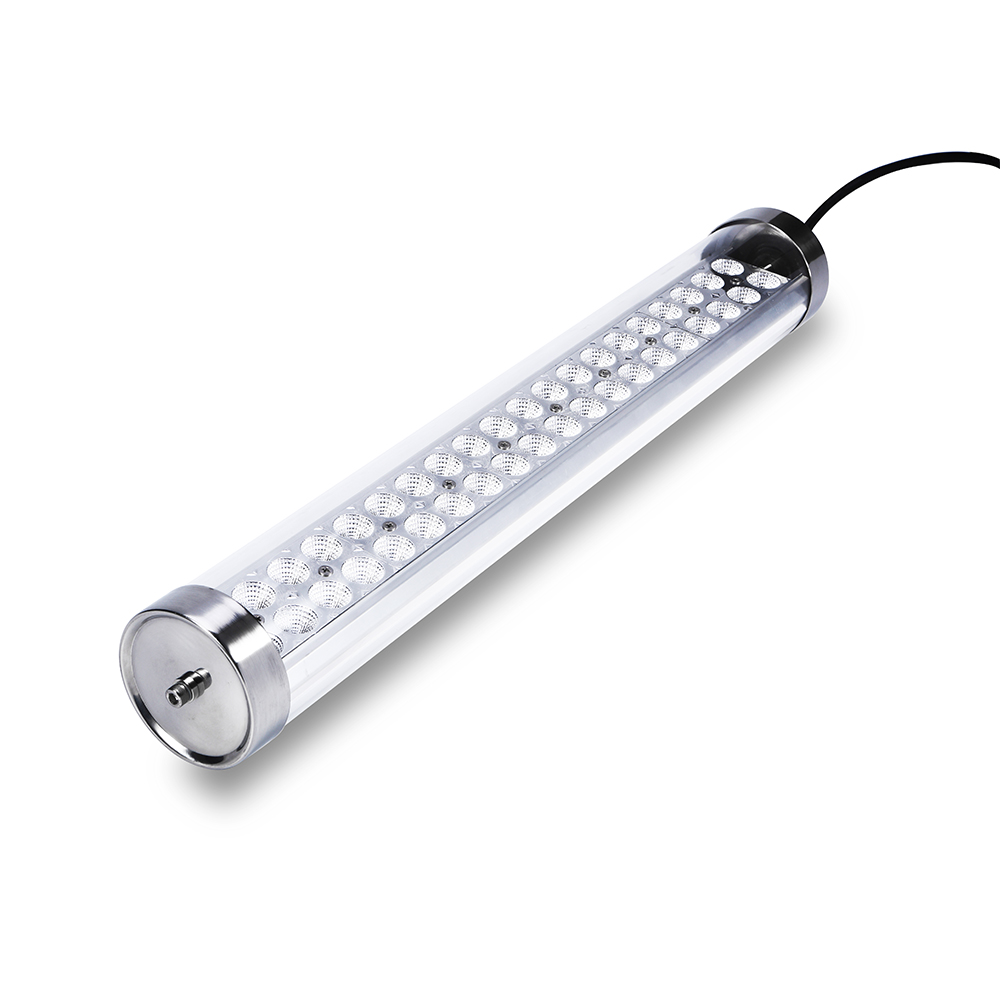

Single Input with IP68 Inox stainless steel connector, There are 3 kinds of wire for different driver.
- With 1M 3×1.0mm² cable for non-dimmable driver.
- With 5×1.5mm² cables for dimmable 0-10V and DALI,
- With 4×1.0/1.5mm² for Emergency kits and motion sensor.
Through Wiring — Linkable
Through wiring with IP68 Inox stainless steel connectors at both ends, so fixtures can be linked into a continuous run from a single supply point.
- Input and output connectors — no junction box needed between fixtures.
- Available for non-dimmable, 0-10V / DALI dimmable and emergency versions.
- Link cable length and maximum fixtures per run are made to order.
Installation Type:
- with stainless steel mounting accessories included for wall and ceiling mounting,
- stainless steel cables For Hanging.
K3 Series Specifications
K3 Series — Ø80 mm 1200 mm 40 W UGR<19 LED tubular light
| Parameter | Specification |
|---|---|
| Model | OL-PL40W-K120-K3 |
| Power | 40 W |
| Luminous Flux | 5200 lm (transparent) |
| Dimensions | L1205 × Ø80 mm |
| Glare Rating | UGR<19 |
| Input Voltage | AC 220-240 V / AC 100-277 V (US market) |
| Power Factor (PF) | >0.95 |
| LED Source | Edison SMD 2835 — CRI>80Ra, CRI>90Ra optional |
| Tube Color | Transparent |
| Index of Protection | IP67 / IP69K / IK10 |
| Beam Angle | 120° |
| Housing Material | PC / V.0, PMMA |
| Metal End Cap | #304 / #316 original stainless steel |
| Working Temperature | -20°C ~ +50°C |
| Lifetime | 50,000 hrs |
| Warranty | 5 years |
Benefits
In addition to standard products, as a tubular light manufactory vendor,we also can customize your size, color temperature, power function, luminous efficiency of light source, connection method, label style, your logo, packaging and so on.
Compare the LED Tubular Light Range
K45 Series — Ø45mm
Slimmest tube in the range. 600–1500mm, 15W upward, IP69K / IP67, 304L / 316L stainless steel hardware — for tight ceiling voids and cold rooms.
K70 Series — Ø70mm
The standard workhorse. 600–1500mm, 20W upward, IP69K / IP67, PC or PMMA shell — the default choice for food processing and wash-down areas.
K3 Series — Ø80mm (you are here)
The low-glare option. 1200mm, 40W, UGR<19 with a 30° reflector, IP69K / IP67 — for areas where operators look up into the fixture.
FAQ of Ø80mm UGR19 Tubular Light

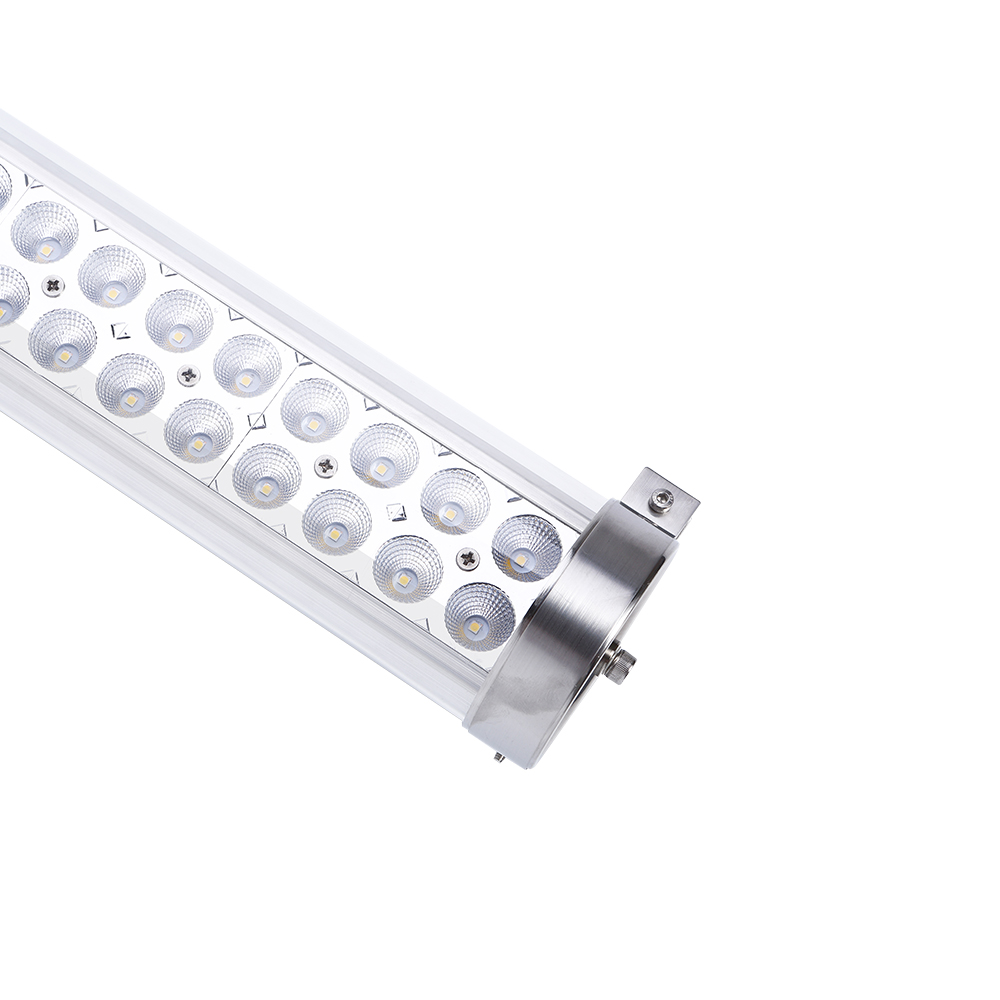

This is design With a reflective inside of the product, the beam angle is 30 degrees.
The light source is SMD3030, 1W, CRI>80Ra and 90Ra for option
Because of the special design, right now, only one for option.
Yes, We provide 2 kinds of Connection method for option, 1 of non-linkable, other is linkable.
