LED Linear Light
High-quality LED linear lights with UGR<19, CRI>90, customizable lengths. Perfect for offices, retail, and commercial projects. 17+ years manufacturing experience today.
OLAMLED: Your Trusted LED Linear Lighting Manufacturer & Supplier
An LED linear light is a bar-shaped luminaire that houses an LED module inside an extruded aluminum profile and links end to end into a continuous run. OLAMLED builds it in four series — PD, PR, PF and PR-2 — for surface, suspended and recessed ceilings, at UGR ≤ 19 and CRI up to 95 Ra.
LED Linear Light Series Comparison: PD, PR, PF and PR-2
| Feature | PD Series | PR Series | PF Series | PR-2 Series |
|---|---|---|---|---|
| Mounting | Surface | Recessed | Surface | Recessed (slim) |
| Linkable | Yes | Yes | Yes | Yes |
| Optics | Lens + Reflector | Lens + Reflector | Diffuser (Opal/Prismatic) | Diffuser (Opal/Prismatic) |
| Driver | Internal | External (easy swap) | Internal | Internal / External (option) |
| Dimming | ON/OFF (dip switch for power), 0/1-10V / DALI-2 / D4i / Bluetooth | |||
| Sensor | PIR, Daylight, Microwave, Casambi (Optional) | |||
| Your Need | Recommendation |
|---|---|
| Surface-mounted & linkable runs | PD or PF |
| Lens + reflector for precise beam control | PD or PR |
| Diffuser for soft, uniform light | PF or PR-2 |
| External driver for easy maintenance | PR or PR-2 |
| Emergency backup required | All series available |
Explore LED linear light solutions with low glare UGR<19, 120-150lm/W efficacy, recessed/surface mounting, dimming (1-10V/DALI), PIR sensor, and emergency backup. Ideal for offices, retail, and commercial projects.
- Adjustable Length Options– Custom sizes to fit any linear lighting layout.
- Flexible Wattage & Output– Choose power levels for energy-efficient commercial lighting.
- CCT Tunable from 3000K to 6000K– Match warm to cool white for diverse ambiances.
- Low Glare UGR<19– Reduces eye strain for comfortable office and commercial lighting.
- Flicker-Free Visual Comfort– Minimizes visual fatigue in workspaces, schools, and hospitals.
- Anti-Glare Optical Design– Enhances concentration and productivity with uniform, soft illumination.
- Smart Dimming Drivers (1-10V / DALI-2 / D4i)– Smooth control for energy-saving LED lighting.
- PIR Motion Sensor & Daylight Harvesting– Auto on/off with natural light compensation.
- Emergency Backup (5W/3H)– Reliable battery for safety during power outages.
What Do the Four LED Linear Light Series Have in Common?
Although Olamled’s linear light differ in terms of design and target market, these series have several key features that provide flexibility and convenience for users.
Linkable 1 by 1
Each series features connectable units, allowing for seamless integration of multiple fixtures. This connectivity ensures a continuous and uniform lighting setup, ideal for larger spaces requiring consistent illumination across extended areas.
LED Driver Function Options
Olamled offers the same driver function across 4 series, including non-dimmable units and models with 1-10V and DALI dimming. Users can choose the appropriate lighting control for energy efficiency and ambiance.
Color of Aluminum Options
Their shells all have the same color choice, usually white and black. These options help the lamps blend in or stand out, depending on the desired aesthetics of the environment in which they are installed.
How to Install an LED Linear Light: Surface, Suspended and Recessed
One linear system covers all three mounting scenarios. Every OLAMLED order ships with the matching mounting kit and pre-wired quick connectors, so your installers spend less time on site — and a single SKU serves projects with mixed ceiling types.
1. Surface Installation (Ceiling Mounted)
Best for: concrete or finished ceilings where cutting is not possible.
- Mounting brackets included — the fixture snaps on, no structural work
- Fastest install: one worker, about 15 minutes per fixture
- The go-to choice for offices, schools and retrofit projects
2. Suspended Installation (Hanging)
Best for: open ceilings and tall spaces that need an adjustable hanging height.
- Suspension kit with adjustable steel cables included
- Pre-wired quick connectors make wiring safe and tool-free
- Supports continuous runs for large-area layouts
3. Recessed Installation (Embedded)
Best for: a seamless, architectural look in drywall or panel ceilings.
- Spring clips hold the fixture flush for a trimless finish
- Standard cutout sizes, cutting templates provided
- Popular in reception, retail and premium office areas
How to Customize an LED Linear Light for an Office
Olamled specializes in providing highly customizable linear office lighting solutions designed to meet the unique requirements of any office.
Adjustable Length & Layout: They can be made to fit any office space, with options for straight lines, separate segments, or custom patterns.
LED Source: Color temperature optional from 3000K to 6000K, CRI: >80Ra & 90Ra
Dimming: On/off, 1-10V, DALI-2, D4i etc.
Multiple Mounting: Choose from suspended, recessed, or surface-mounted installation.
Sensor & Emergency: Intelligent sensing function and emergency function for option
Seamless Connection: Multiple fixtures connect smoothly for a clean look, ideal for large areas.
Reflector Optics vs Diffuser Optics: What Separates the Four Series
OLAMLED’s LED linear lights are primarily available in two surface types: The surface of the Reflectors version and the Diffuser Plate version
Design

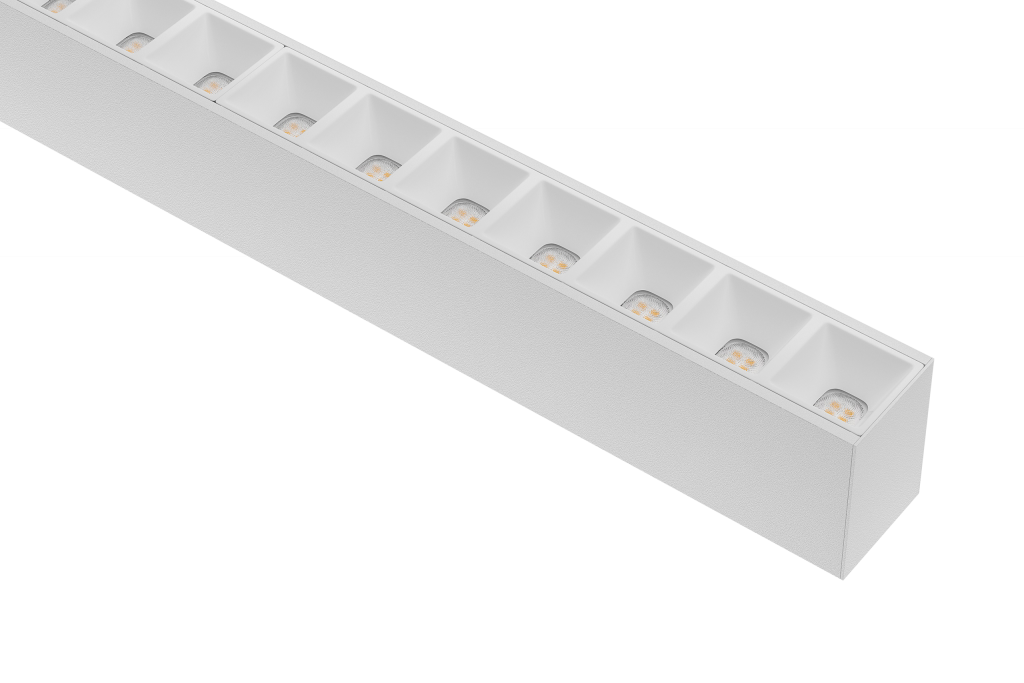

Reflectors version: The PD and PR series is positioned as Olamled’s high-end offering. It features a sophisticated design that includes lenses and reflector cups, which not only enhance the aesthetic appeal but also significantly reduce glare. These two series combine functionality with modern, stylish looks.

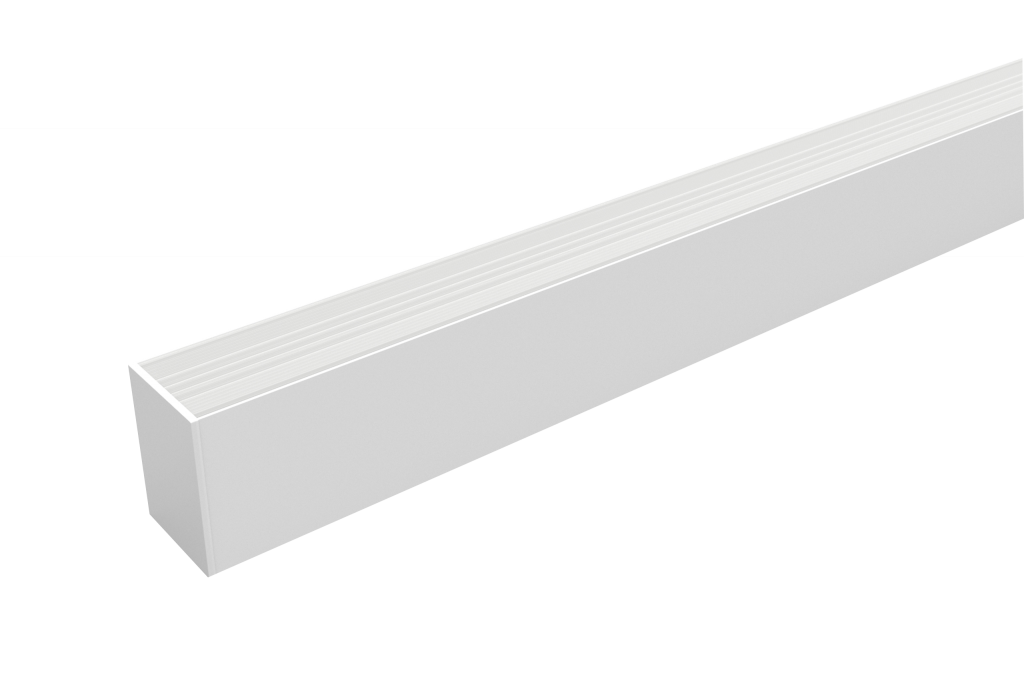

Diffuser plate version: In contrast, the PF and PR-2 series uses a PC (polycarbonate) diffuser to spread light. This design is simpler and more functional, aiming at efficiently distributing light across a space.
Glare Rating
Reflectors version: Due to its advanced optical design involving lenses and reflector cups, the PD & PR series achieves a lower Unified Glare Rating (UGR<16). This makes it ideal for environments where reducing visual discomfort is a priority, such as offices or educational facilities.
Diffuser plate version: These 2 series are with its PC diffuser, UGR>22 or UGR<19 for option. While it still offers effective lighting, the focus is more on broad light distribution rather than minimizing glare.
How We Work With You: From Enquiry to Production
Not only producing LED Lighting products, but also providing solutions for your specific needs.
How We’ll Work Together
01 · Discover
We ask about the exact requirements of the linear lights you need — dimensions, wattage, CCT, optics and quantity.
02 · Define
We lock down the structure, technical parameters and application scenario, then confirm the full specification with you.
03 · Estimation
We quote your price based on the confirmed configuration, quantity and packing requirement.
04 · Contract
Once you approve the LED linear lighting solution, we issue the contract and the production schedule.
05 · Prototype
We build a sample fixture for you to test and approve before mass production starts.
06 · Review
After you receive the sample we review conformity together and agree on any refinement.
We’ll be in touch at every step — usually within one working day.
Where Are LED Linear Lights Used?
LED linear lights are specified in six application types: open-plan offices, meeting rooms, classrooms, libraries, retail aisles and warehouse office blocks. Each type carries its own maintained illuminance and glare requirement under EN 12464-1.

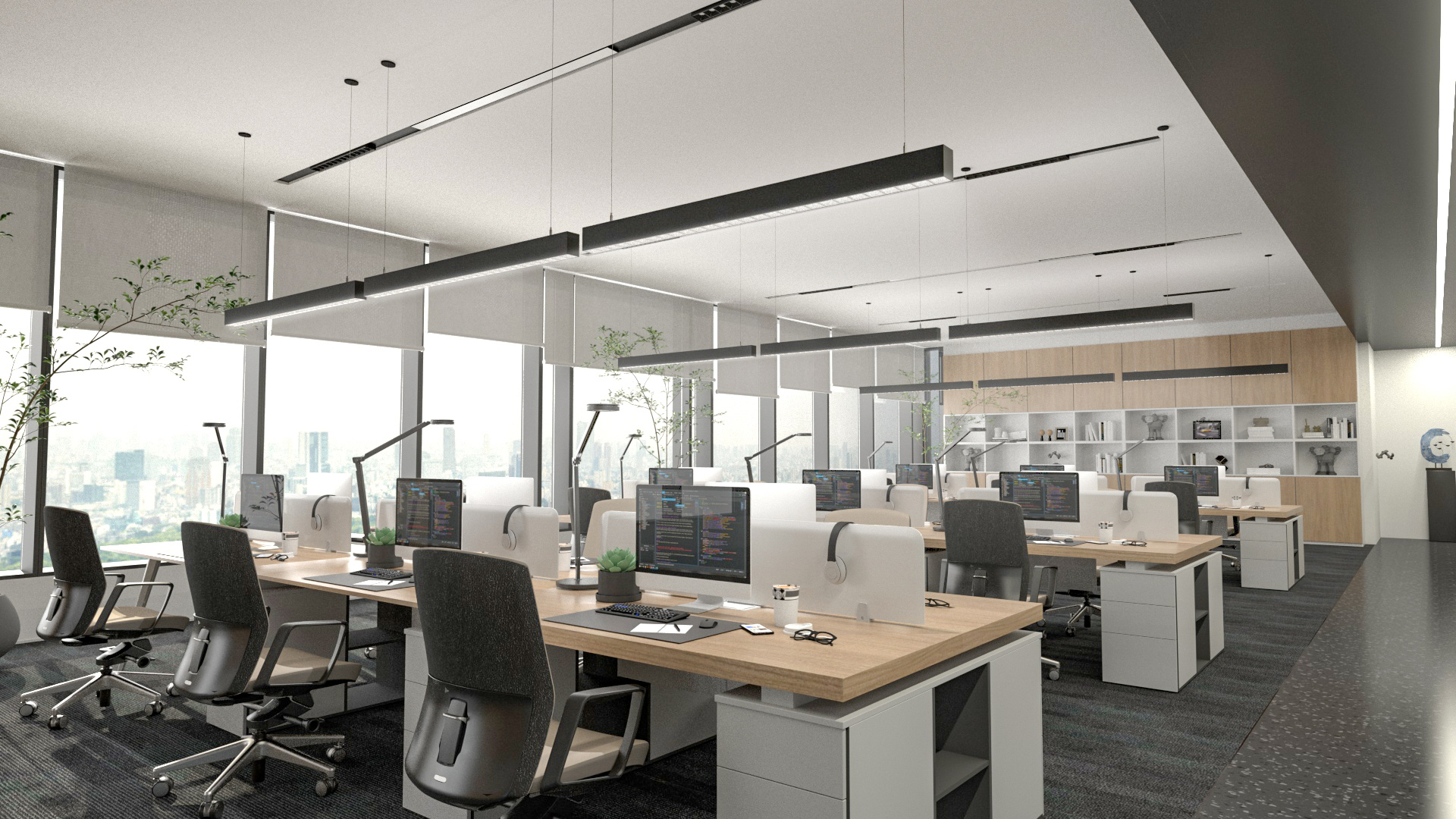

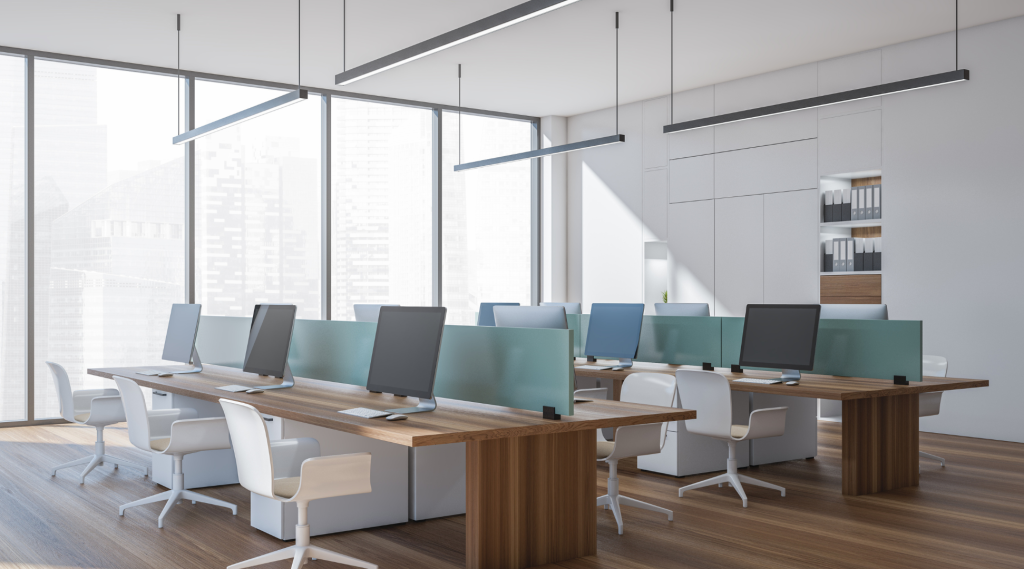

Open-plan office
Continuous suspended installation of the PF Series (available in 40W / 5200 lm or 50W / 6500 lm) using micro-prismatic diffusers to maintain illuminance uniformity above 0.6 and eliminate computer screen glare.
Executive & Private Office
Configuration: PD Series linear lights featuring Lens + Reflector optic technology with optional Up & Down lighting and DIP-switch wattage selection, offering flexible switching between daily focused work and executive meetings
Library & Reading Zone
Configuration: PR-2 Series linear profiles running along the shelving and reading desk axes to provide clear vertical illuminance for book spines and desk surfaces.
Open-Ceiling Office & Training Area
Suspended linear runs designed for exposed industrial ceilings, equipped with low-flicker drivers (Pst LM ≤ 1.0, SVM ≤ 0.4) to ensure visual comfort during extended screen interaction.

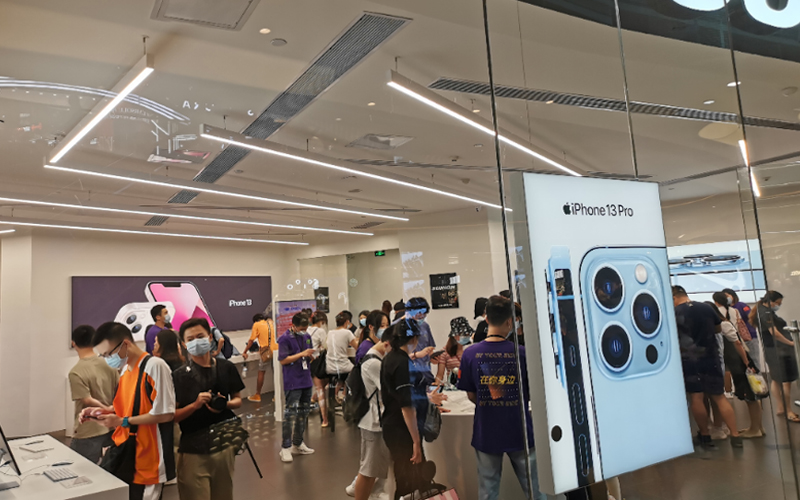

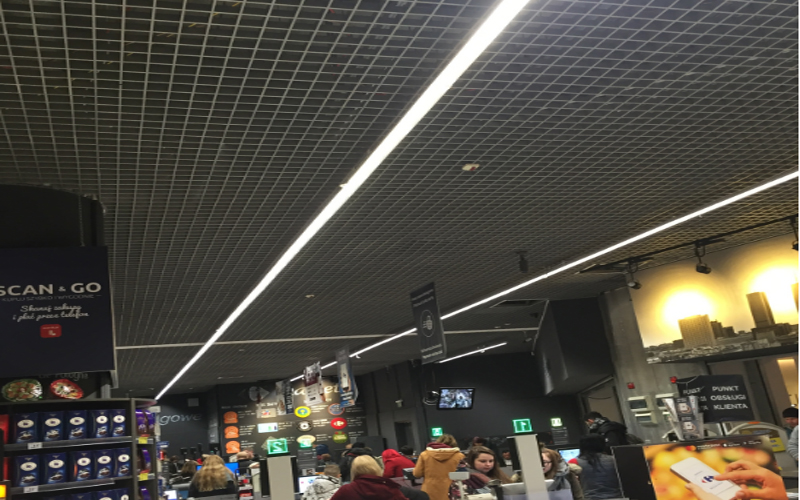

Retail & Commercial Display Zone
Recessed PR Series linear lights featuring high color rendering (CRI 90/95 Ra) and deep reflector cups (black, white, or silver finishes) to accurately represent product colors and textures.

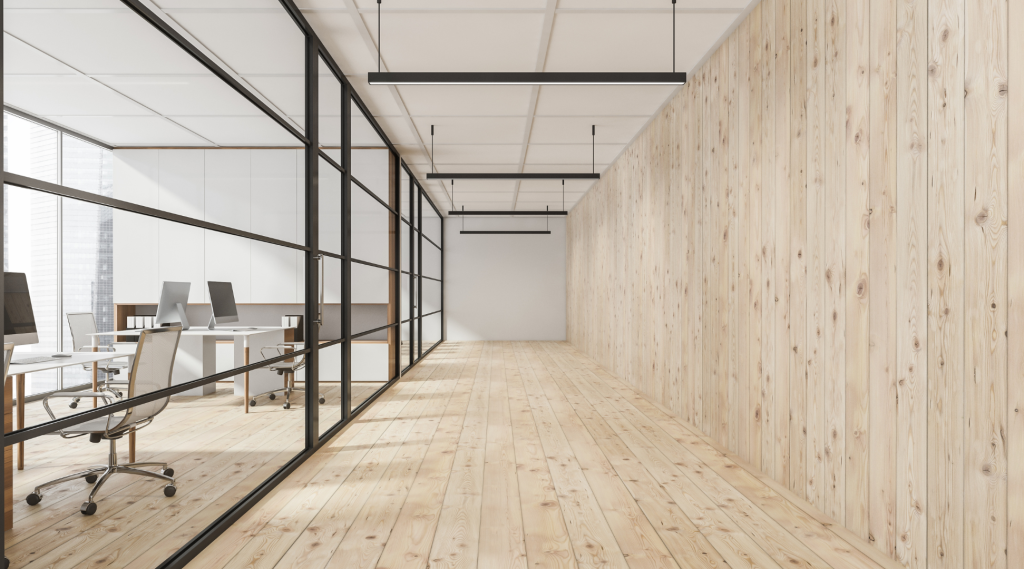

Office Corridor
Suspended or surface-mounted black PD/PF Series linear runs along glass-partitioned corridors, fitted with factory-integrated 3-hour emergency battery backup modules to ensure safe circulation and fire safety compliance.
Our Capability to Accomplish What We Said Above
Quick Response
With an engineering design and development team with over 17 years of industry experience, we can provide you with:
- 1 day to provide DIALUX simulation

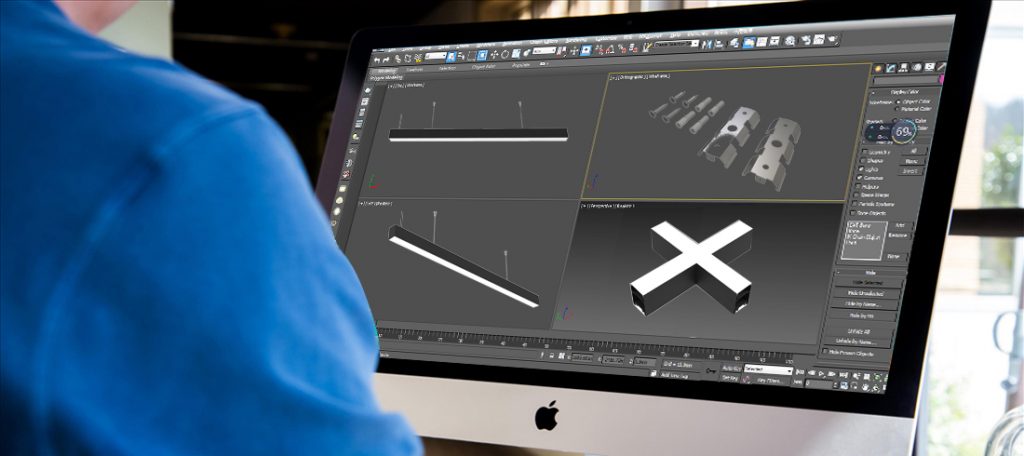

- 2 days to produce 2D/3D drawings
- 3-5 days for prototype
- Small batch customization
Production Control
With our own production and quality control team, we can not only quickly and efficiently arrange the production schedule to meet your order delivery but also protect your order from raw materials to production process and shipping inspection.
Powerful Supply Chain
With 17 years of development, OLAMLED has its own perfect supply chain system. OLAMLED has very mature and stable suppliers to control the quality, price and service of material suppliers, which can provide customers with main effect and customized services.
Professional Service Capability
We have a team of over 17 years of foreign trade export services, serving more than 100 countries, we can provide professional solutions for different countries' import and export and product specification requirements and product certification consulting solutions
LED Linear Light FAQs
Here are some most popular FAQs during our 17 years experience as a LED lighting solution provider, and please feel free to contact us if you have more questions.
What installation options does an LED linear light support?
An OLAMLED linear light mounts three ways: surface-mounted on a concrete or finished ceiling, suspended on adjustable steel cables, or recessed flush into a drywall or panel ceiling. Every order ships with the matching mounting kit and pre-wired quick connectors.
Can LED linear lights be connected into a continuous run?
Yes, all four series — PD, PR, PF and PR-2 — can be connected end to end with a pre-wired quick connector. A single 230 V circuit carries a continuous run of up to 30 m (98 ft) at 30 W per meter, limited by the 16 A breaker rather than by the fixture. Longer runs are split with a feed-in joint, supplied on request.
How many lumens does a 4 ft LED linear light produce?
A 1200 mm (4 ft) LED linear light produces 2400 to 4800 lumens, depending on whether it is specified at 20 W, 30 W or 40 W. At 120 to 150 lm/W, a 40 W fixture delivers roughly 4800 lumens at 4000 K.
What UGR does an office LED linear light need?
An office LED linear light needs a Unified Glare Rating of 19 or below, the limit EN 12464-1 sets for workstation lighting. Screen-intensive rooms such as CAD and control rooms are usually specified at UGR<16, which the PD and PR series deliver.
Can an LED linear light be dimmed with a standard TRIAC wall dimmer?
No. OLAMLED linear drivers accept 1-10V, DALI-2 and D4i control signals, not phase-cut TRIAC dimming. A TRIAC dimmer causes visible flicker and shortens driver life on these fixtures, so specify a 1-10V or DALI-2 driver at order instead.
What is the difference between DALI-2 and D4i dimming?
D4i extends DALI-2. Both control dimming over the same two-wire bus, but a D4i driver also stores energy consumption, operating hours and fault diagnostics inside the luminaire, which a building management system reads without extra metering hardware.
Are LED linear lights flicker-free?
Yes. OLAMLED linear fixtures measure Pst LM ≤ 1.0 and SVM ≤ 0.4, the flicker limits the 2024 ErP regulation sets for indoor lighting. Values below these thresholds are not perceived by the human eye at normal viewing distances.
What IP rating does an LED linear light need for an office corridor?
An office corridor needs IP20, the rating for dry indoor spaces. IP40 is specified where a semi-open ceiling exposes the fixture to dust, and IP65 is required only in kitchens, car parks and washdown areas.
What is the difference between an LED linear light and an LED batten light?
An LED linear light uses an extruded aluminum profile with a lens, reflector or
diffuser optic and links into a continuous run. An LED batten light uses a molded PC body, carries no linking hardware, and targets utility spaces rather than specified office lighting.
