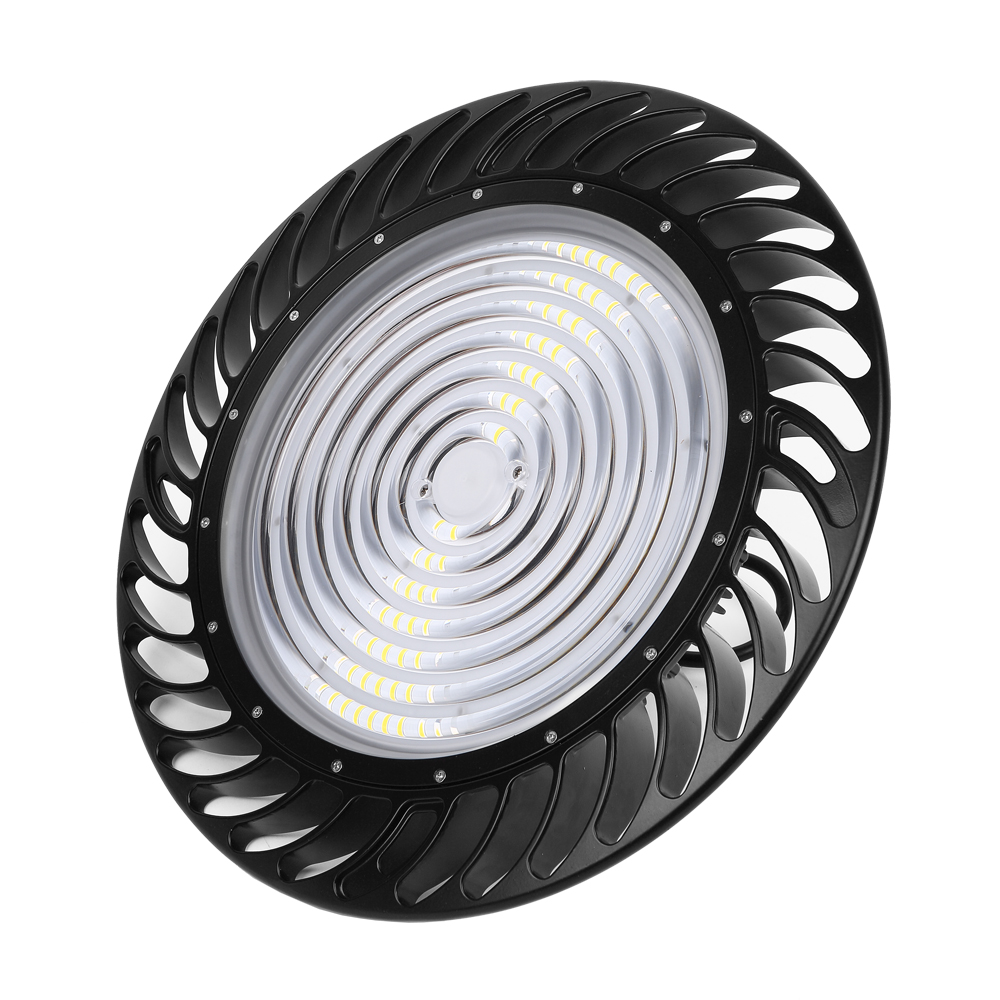

UFO High Bay Light
Windy Series
A high bay light to replace the traditional sodium lamp
Features That Make High Bay Lights Superior To Any Other Traditional High Bay Light
Previously, various types of lighting techniques were still used when high-brightness bay lights were needed in warehouse and industrial environments. Among the most common types are high-pressure sodium (HPS), fluorescent agents, and metal halides.
Now, with advances in technology, the market for these previously used lights has been replaced by LED high bay light. We can all agree that these high-pitch LED lights have surpassed all the functions of traditional lights.
Features of Windy Series
Air convection design, that can keep the natural wind long time for heat dissipation.

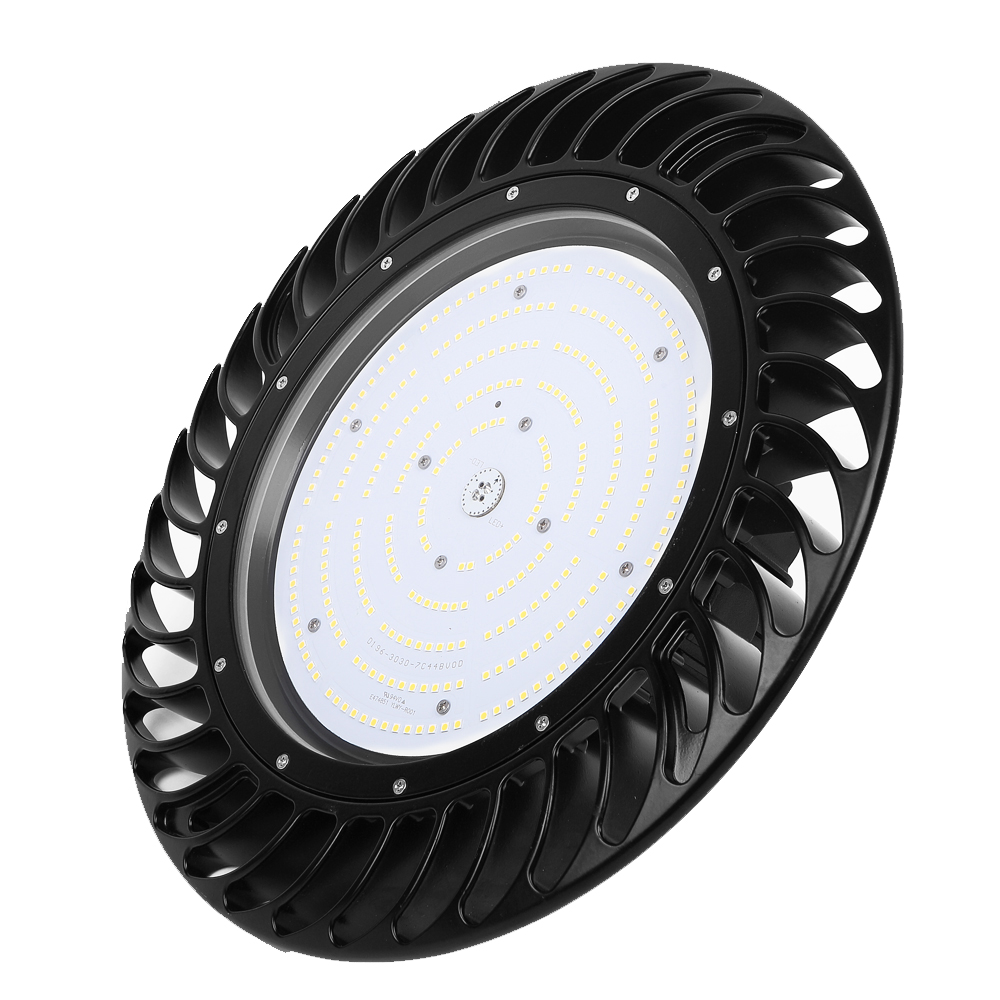

Annulus lens, the LED quantity can be changed according to customer requirements.
Lighting effect: 140lm/W or 170lm/W
Beam angle: 60/90/120º
Power: 100W,150W, 200W, 240W
Light source: LumiLeds, SMD3030,CRI>80Ra Warranty: 5 years.

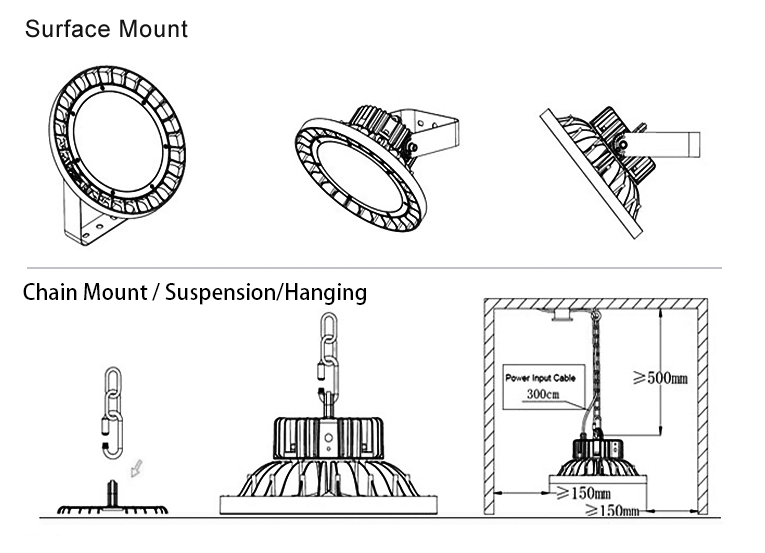

2 Installation Methods
Surface Mount: Screw the bracket to the ceiling, then get the angle right.

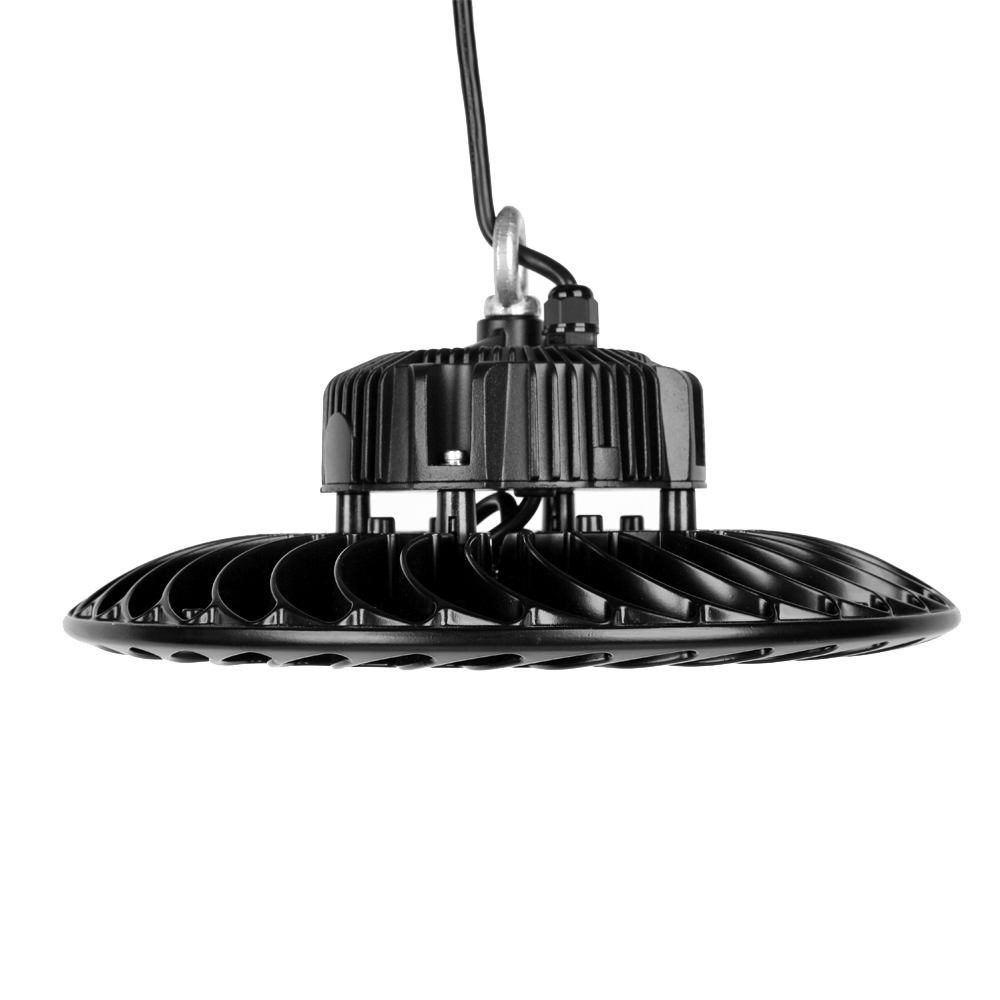

Suspension: Fix the mounting accessory chain on the ceiling and adjust the length according your need.
Specs
| Technical Parameters |
|
| Model | OL-UFO280-N100W |
| Power | 100W |
| Luminous flux / Eff. | 15000lm 150lm/W |
| Dimension | Ø280*H168mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | 133pcs SMD3030 |
| Lamp body color | Transparent |
| Metal End Cap color | Black |
| Driver Brand | Meanwell |
| IP Grade | IP65 |
| Beam angle | 60/90/120° |
| Housing material | Aluminum Housing and Lens Cover or Glass Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters |
|
| Model | OL-UFO340-N150W |
| Power | 150W |
| Luminous flux / Eff. | 19500lm 150lm/W |
| Dimension | Ø340*H168mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | 210pcs SMD3030 |
| Lamp body color | Transparent |
| Metal End Cap color | Black |
| Driver Brand | Meanwell |
| IP Grade | IP65 |
| Beam angle | 60/90/120° |
| Housing material | Aluminum Housing and Lens Cover or Glass Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters |
|
| Model | OL-UFO400-N200W |
| Power | 200W |
| Luminous flux / Eff. | 30000lm 150lm/W |
| Dimension | Ø400*H168mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | 315pcs SMD3030 |
| Lamp body color | Transparent |
| Metal End Cap color | Black |
| Driver Brand | Meanwell |
| IP Grade | IP65 |
| Beam angle | 60/90/120° |
| Housing material | Aluminum Housing and Lens Cover or Glass Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters |
|
| Model | OL-UFO400-N240W |
| Power | 240W |
| Luminous flux / Eff. | 30000lm 150lm/W |
| Dimension | Ø400*H175mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | 343pcs SMD3030 |
| Lamp body color | Transparent |
| Metal End Cap color | Black |
| Driver Brand | Meanwell |
| IP Grade | IP65 |
| Beam angle | 60/90/120° |
| Housing material | Aluminum Housing and Lens Cover or Glass Cover |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
Benefits
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.
FAQ of UFO Hight Bay Light-Windy series
- This series with 100W, 150W, 200W, 240W for option.
In general, We used the driver brand is Meanwell , SOSEN
The light source brand is LumiLeds. The model is SMD3030, The CRI is 80Ra.
>140lm/W and 170lm/W for option.
