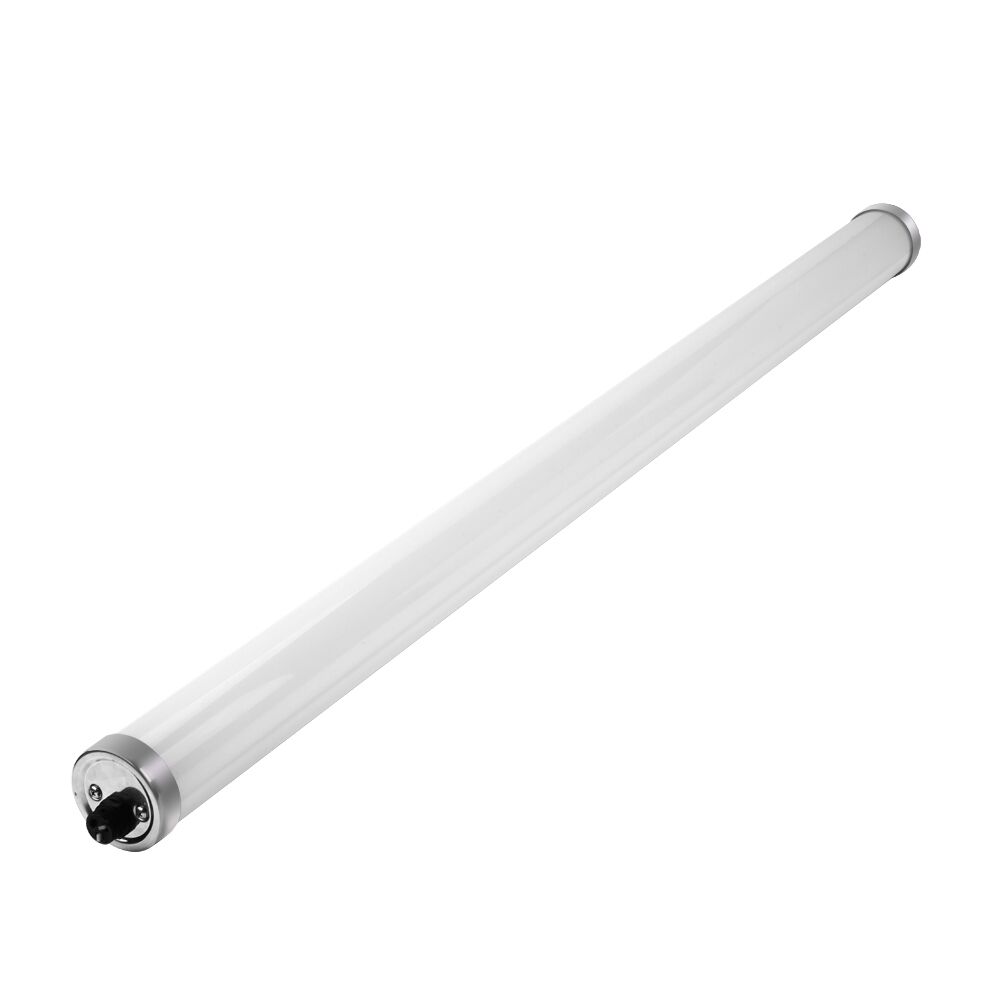

Ø70mm LED Tubular Light

Ø70mm LED Tubular Light

  • Inox 304L and 316L for all external metal features
  • PC or PMMA Shell to certify the resistance of the luminaire in high chemical, corrosive and abrasive situations
  • Shock resistance: PC Housing resisting IK10 mechanical impacts. Resistant to thermal and mechanical impacts even at very low temperature
  • Integrated shell principle, absorb thermal expansion and mechanical stress
  • A powerful power supply designed for intensive operation at low temperatures
  • Designed to meet the hygienic requirements of the food industry
  • Absolutely durable and impermeable IP67/IP69K
  • No frost formation
  • High resistance to chemical detergents due to co-extrusion Polycarbonate and methacrylate shells

Standard Led Tubular Light

Our luminaires concept and material selection enable our lighting to solve impact resistance, detergent factors and high pressure cleaning (IP69K)

  • 304L/316L Stainless steel End caps and fixing Accessories
  • Gaskets Silicone
  • Imperviousness IP67,IP68 and IP69K
  • Shock resistance: IK10/PC, IK06/PMMA
  • Fireresistance :850°C/PC, 650°C/PMMA
  • Detachable drives and efficient modules
  • Lighting source: SMD2835, CRI 80Ra or 90Ra

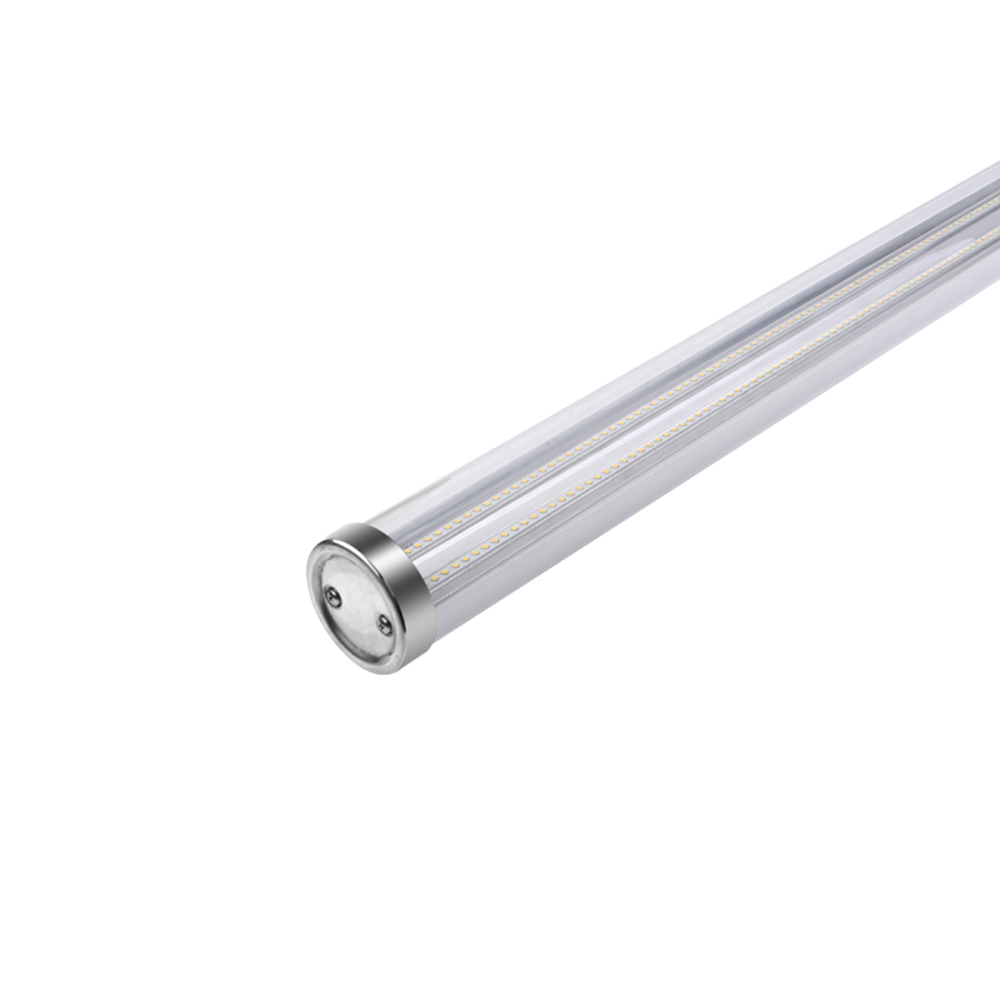

  • Clear or Opal Housing

Single Input--Non-linkable:

Single Input with IP68 Inox stainless steel connector, There are 3 kinds of wire for different driver.

  • With 1M 3×1.0mm² cable for non-dimmable driver.
  • With 5×1.5mm² cables for dimmable 0-10V and DALI,
  • With 4×1.0/1.5mm² for Emergency kits and motion sensor.

Single Input--Non-linkable:

Single Input with IP68 Inox stainless steel connector, There are 3 kinds of wire for different driver.

  • With 1M 3×1.0mm² cable for non-dimmable driver.
  • With 5×1.5mm² cables for dimmable 0-10V and DALI,
  • With 4×1.0/1.5mm² for Emergency kits and motion sensor.

Installation Type:

  1. with stainless steel mounting accessories included for wall and ceiling mounting,
  2. stainless steel cables For Hanging.

Specs

Technical Parameters-Dia¢70mm


Model


OL-PL20W-K60-70


Power


20W


Luminous flux


2600lm /Transparent


2400lm/Frosted


Dimension


L605×¢70mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


Edison SMD 2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Transparent/Frosted(Milky)


Metal End Cap color


#304, #316 Original Stainless steel


Index of protection


IP67/IK10/IP69K


Beam angle


120°


Housing material


PC / V.0, PMMA


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 years



Technical Parameters-Dia¢70mm


Model


OL-PL30W-K90-70


Power


30W


Luminous flux


3900lm /Transparent


3600lm/Frosted


Dimension


L905×¢70mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


Edison SMD 2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Transparent/Frosted(Milky)


Metal End Cap color


#304, #316 Original Stainless steel


Index of protection


IP67/IK10/IP69K


Beam angle


120°


Housing material


PC / V.0, PMMA


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 years



Technical Parameters-Dia¢70mm


Model


OL-PL40W-K120-70


Power


40W


Luminous flux


5200lm /Transparent


4800lm/Frosted


Dimension


L1205×¢70mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


Edison SMD 2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Transparent/Frosted(Milky)


Metal End Cap color


#304, #316 Original Stainless steel


Index of protection


IP67/IK10/IP69K


Beam angle


120°


Housing material


PC / V.0, PMMA


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 years



Technical Parameters-Dia¢70mm


Model


OL-PL60W-K150-70


Power


60W


Luminous flux


7800lm /Transparent


7200lm/Frosted


Dimension


L1505×¢70mm


Input Voltage


AC220-240V/AC100-277V(for US market)


Power factor ( P.F. )


>0.95


LED source


Edison SMD 2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Transparent/Frosted(Milky)


Metal End Cap color


#304, #316 Original Stainless steel


Index of protection


IP67/IK10/IP69K


Beam angle


120°


Housing material


PC / V.0, PMMA


Working temperature


-20°C~+50°C


Lifetime


50000 hrs


Warranty time


3-5 years



Benefits

In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.

FAQ of K70 Series

• IP67:

Soaking in water from 15 cm to 1 m deep for 30 minutes prevents water from entering.

• IP69K:

Capable of withstanding the hot steam wash test as defined in EN 60529 and DIN 40050-9. This provides protection against water pressures of 100 bar (1450 psi) and temperature of 80ºC. The pressure is applied directly to the sensor at progressive angles of 30 degrees (0, 30, 60 and 90 degrees) for 30 seconds at each angle for a total of 120 seconds (2 minutes) to prevent water ingress.

PC
IK Rate different, the PC can to achieve IK10
Using in environment contains fumes, gas or solvents.
Using in dusty and wet industrial environment and hard conditions.

PMMA
The PMMA is a acrylic, the IK rate can to achieve IK06
Against 100bar(1450psi)hydraulic Pressure and 80°Ctemperature
Using in dusty and wet industrial environment and hard conditions.
Using in environment contains fumes, gas or solvents.
Anti-ammonia and Sulphur vapours, Prevent insects going inside.

Non-dimming

Non-dimmable light refers to the power supply of lamps and lanterns can only realize the function of on and off.

Dimming

Dimmable refers to the power supply inside the lamp that can adjust the brightness. The common dimming power supply is 0-10V,DALI dimming
