LED Linear Light
PF Series
LED Linear Light
- Some of the key features of this product are: “―”shape “T” shape , ”X” shape and ”L” shape connection: These allow you to create different shapes and patterns with the linear lights, such as squares, rectangles, crosses, etc. You can customize your lighting design according to your preference and space.
- Connect 1 by 1: This feature enables you to link up to 10 lights in a series easily and seamlessly, without any gaps or wires between them. This reduces your installation cost and time, and also creates a more aesthetic and uniform appearance.
- UGR<19: This means that the linear light has a low glare rating, which means it produces less visual discomfort and eye strain for the users.
- 6063 Aluminum holder with Soft PC Diffuse: This is the material used for the linear light body and cover. It is durable, lightweight, and corrosion-resistant. The soft PC diffuse provides a smooth and even light distribution, without any hot spots or shadows.
- Install Can be Suspended and Surface mounted: This gives you more flexibility and options for how to install the linear light. You can either hang it from the ceiling or mount it on the wall or other surfaces. Either way, it will look sleek and elegant in your space.
- Led linear lamp brightness is very soft, comfortable and not dazzling.
- Under the condition of ensuring the visual requirements, it’s can reasonably control the lighting time; The use of advanced control energy saving equipment, can ensure good visual conditions, improve the service life of lamps, but also can save energy.

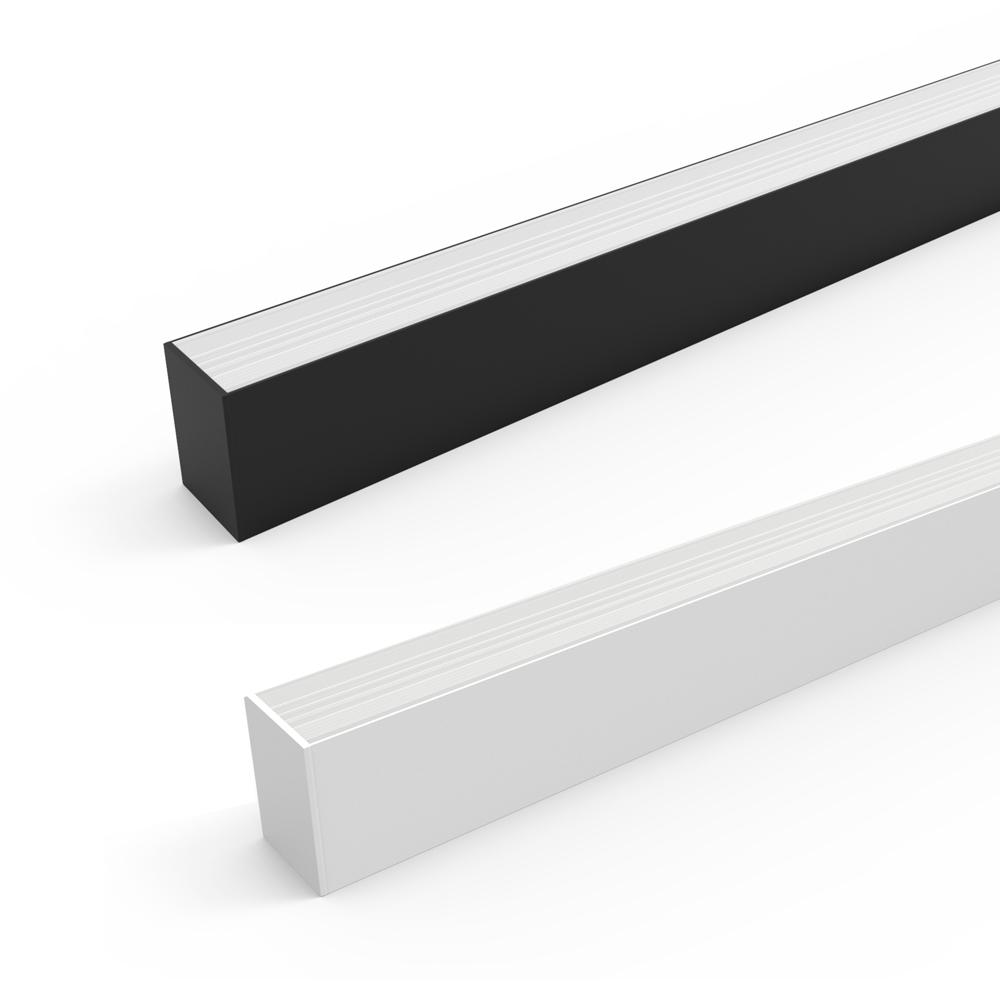

- 2 shell colors to meet most modern office lighting needs.
- Seamless connection, uniform light, no dark area, easy to install, convenient, fast
- Flexible Diffuser Plate, UGR<19 and UGR< 24 Optional.
- The length can be up to 20M.
“―” Shape connection, This is the mainstream practice in offices now, because it looks simple, beautiful and grand
L-shaped installation accessories for office corner connection, easy installation, use in the corner area perfect .
T-shaped installation accessories is used for personalized office.
X-shaped installation accessories is use in the that require a more complex office layout
- Suspended: This method allows you to hang the linear light from the ceiling with wires or rods. This creates a minimalist and elegant look, and also saves space on the wall or floor. Suspended linear light can also provide indirect lighting by reflecting light off the ceiling, creating a soft and comfortable ambiance.
- Surface mounted: This method allows you to attach the linear light directly on the wall or other surfaces. This is a simple and convenient way to install the linear light, and it can also create a more focused and directional lighting effect.
Specs
| Parameter |
|
| Dimensions | 1200*50*70mm |
| Power | 40W |
| LED Source | 144pcs SMD2835/0.5W |
| Luminous Flux | 5200lm/4400lm(UGR<19) |
| Color | White/Black |
| Texture of material | Aluminum+PMMA |
| Insulation grade | Ⅱ |
| Operating Ambient | -25℃~45℃ |
| Rated Life Span | 50000H |
| Protection grade | IP20 |
| Light Angle | 110°, 80º / UGR<19 |
| Input Voltage | AC220-240V |
| Supply Frequency | >50/60Hz |
| Output Voltage | DC30-42V |
| Output Current | 1000mA |
| Power Factor | >0.95 |
| Energy Efficiency Index | 90%±2 |
| THD | 0.1 |
| Luminous Efficiency | >130lm/W |
| CRI | 80Ra |
| Color Temperature | 3000K/4000K/5000K/6000K |
| Warranty | 5 Years |
| Parameter |
|
| Dimensions | 1500*50*70mm |
| Power | 50W |
| LED Source | 180pcs SMD2835/0.5W |
| Luminous Flux | 6500lm/5500lm(UGR<19) |
| Color | White/Black |
| Texture of material | Aluminum+PMMA |
| Insulation grade | Ⅱ |
| Operating Ambient | -25℃~45℃ |
| Rated Life Span | 50000H |
| Protection grade | IP20 |
| Light Angle | 110°, 80º / UGR<19 |
| Input Voltage | AC220-240V |
| Supply Frequency | >50/60Hz |
| Output Voltage | DC30-42V |
| Output Current | 1200mA |
| Power Factor | >0.95 |
| Energy Efficiency Index | 90%±2 |
| THD | 0.1 |
| Luminous Efficiency | >130lm/W |
| CRI | 80Ra |
| Color Temperature | 3000K/4000K/5000K/6000K |
| Warranty | 5 Years |
Benefits
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.
Watch Videos to learn more about PF Series LED Linear Light
PF series Linear Light
FAQs for PF Series LED Linear Light
Here are some most popular FAQs during our 14 years experience as a LED lighting solution provider, and please feel free to contact us if you have more questions.
What installation options are available?
Suspended, Surface Mounted, Recessed, Track.
How much luminous efficiency?
>130lm/W
What is the adjustable color temperature range?
Standard products are single color temperature, we provide CCT adjusting customization.
What the customized services include?
We can customize the product shell color, CCT, different function of driver, packaging, your LOGO and installation method, etc.
