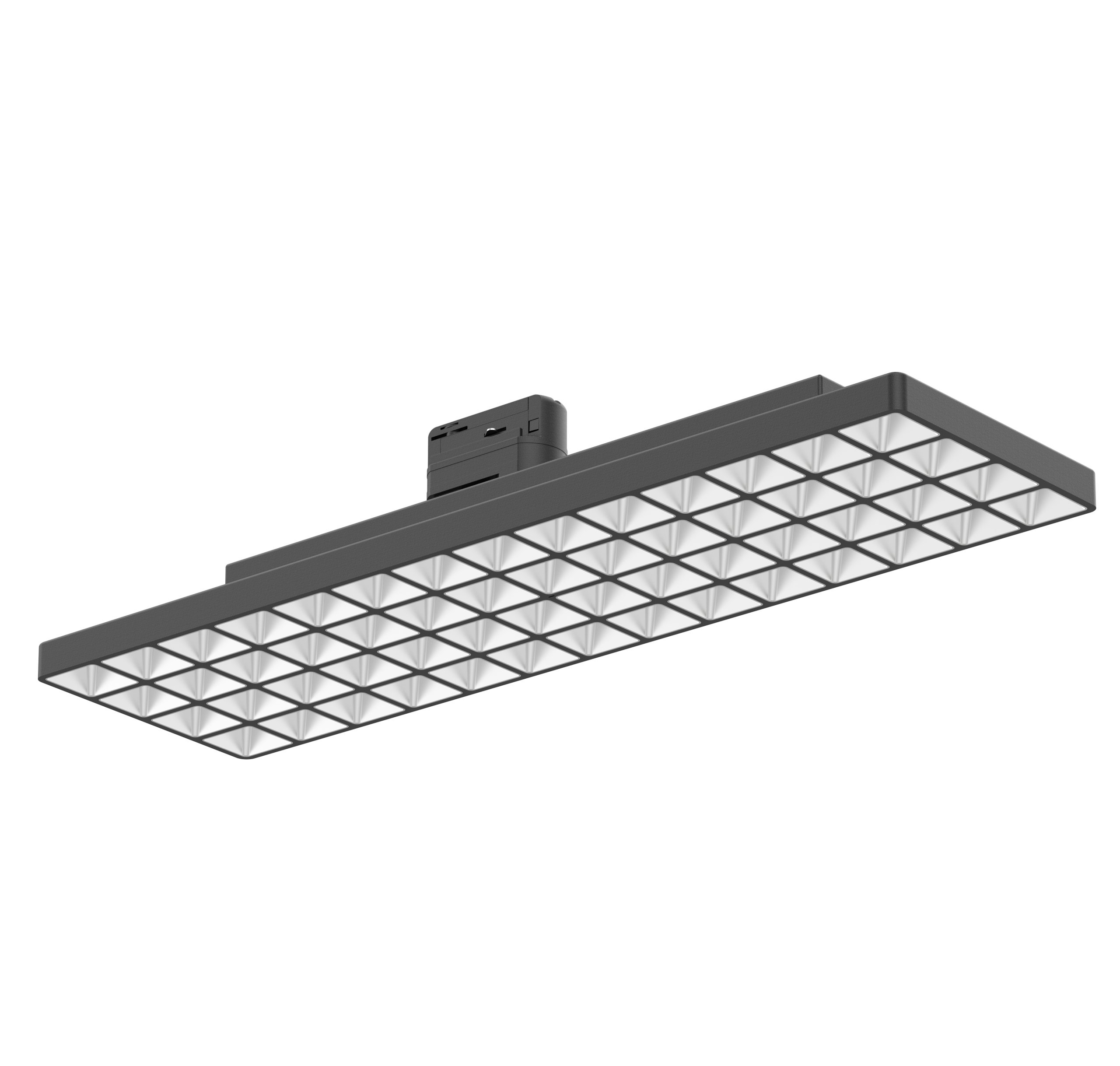

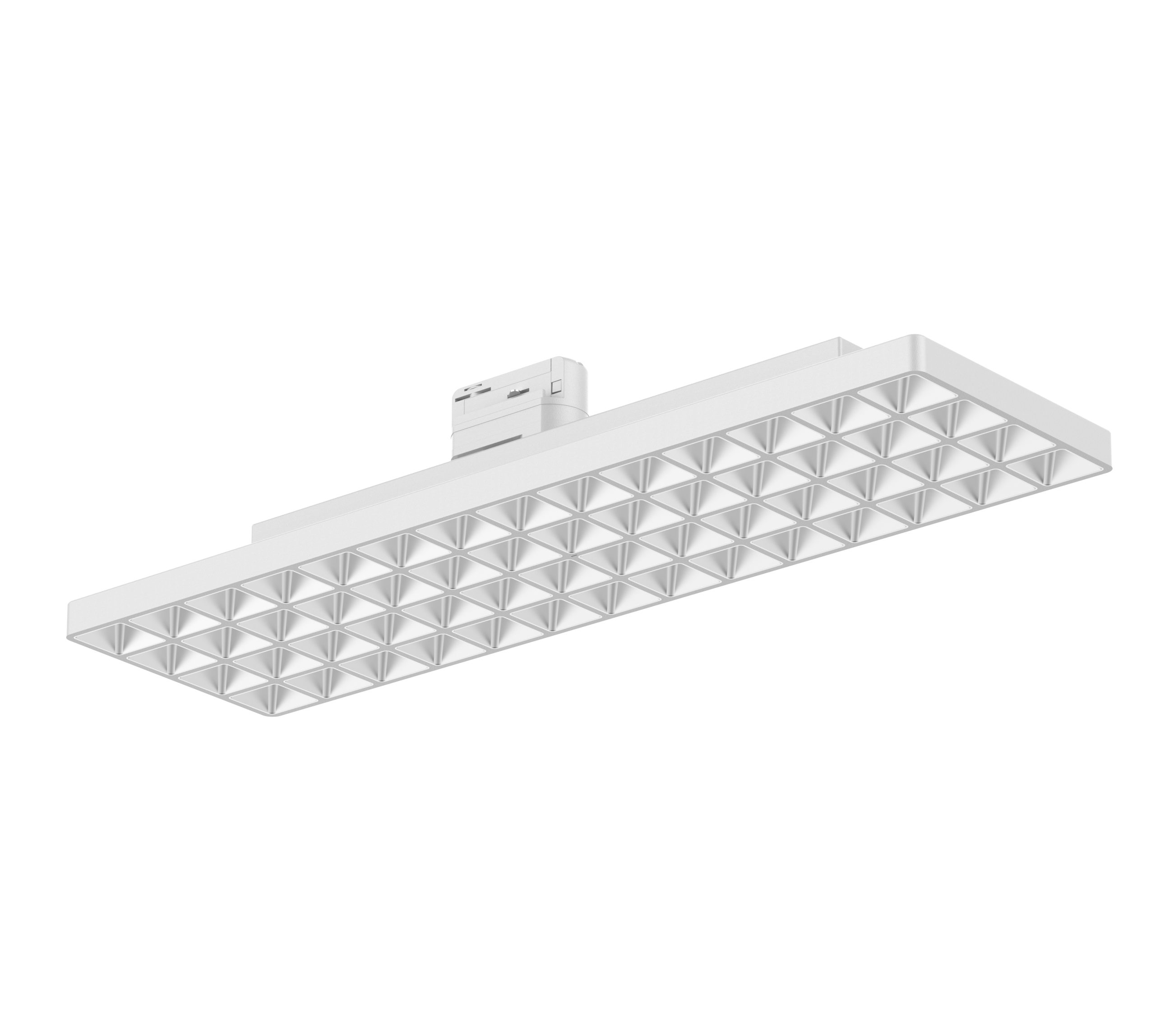

UGR<19 LED Track Panel Light(>130lm/W )

Anti-Glare track panel light

By reducing the intensity of the light source itself and blocking out unwanted reflections, Anti-Glare light allows people to see things more clearly without hurting their eyes. It is perfect for those who do not get enough bright sunlight or spend plenty of time indoors.

  • High luminous intensity, up to 160LM/W
  • Adopt PMMA efficient lens, lower decay and high UV tolerance
  • Unique aluminum housing(6063-T5) with good heat dissipation
  • Aluminpcb(PCB) with high thermal conductivity and thermal resistance.
  • Widely used in shopping malls, supermarkets, warehouses and brand chain stores



UGR<19 is the best choice for working in office, like reading, writing and meeting.

Standard Led Tubular Light

Our luminaires concept and material selection enable our lighting to solve impact resistance, detergent factors and high pressure cleaning (IP69K)

  • 304L/316L Stainless steel End caps and fixing Accessories
  • Gaskets Silicone
  • Imperviousness IP67,IP68 and IP69K
  • Shock resistance: IK10/PC, IK06/PMMA
  • Fireresistance :850°C/PC, 650°C/PMMA
  • Detachable drives and efficient modules
  • Lighting source: SMD2835, CRI 80Ra or 90Ra
  • Clear or Opal Housing

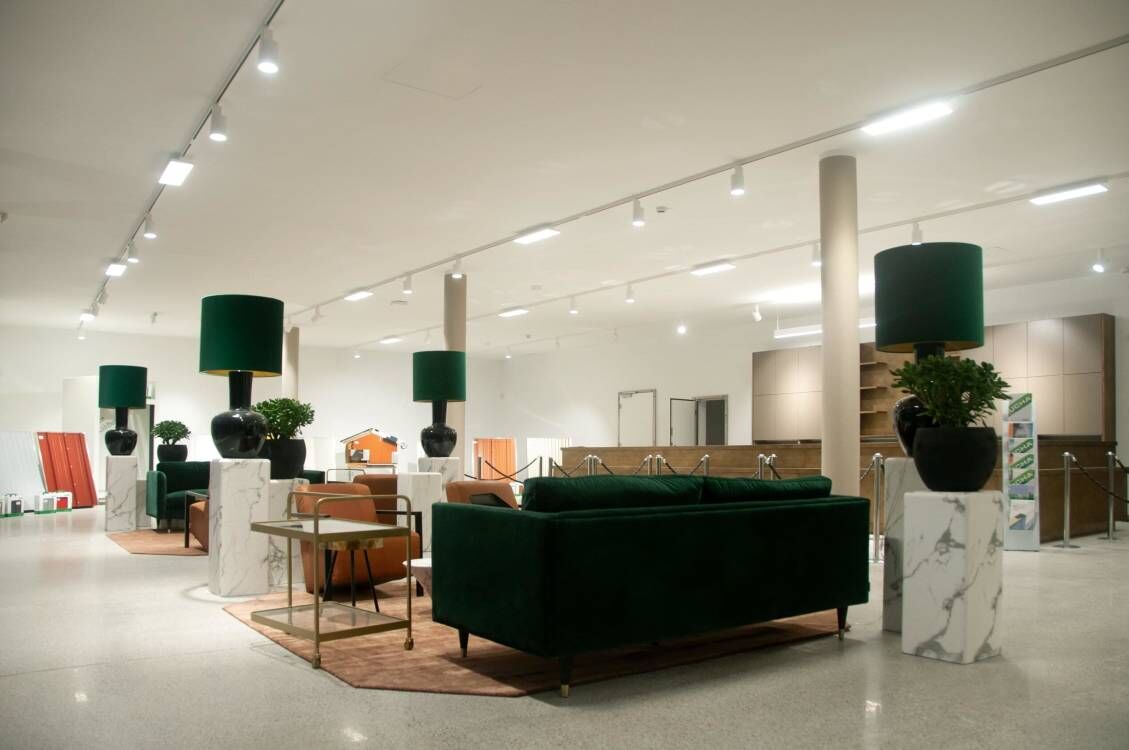

Alternatives of Store Lighting

During deep concentration work on computer screen, people may feel dazzling or uncomfortable under traditional incandescent and halogen bulbs. By reducing the intensity of the light source itself and blocking out unwanted reflections, Anti-Glare light allows people to see things more clearly without hurting their eyes.

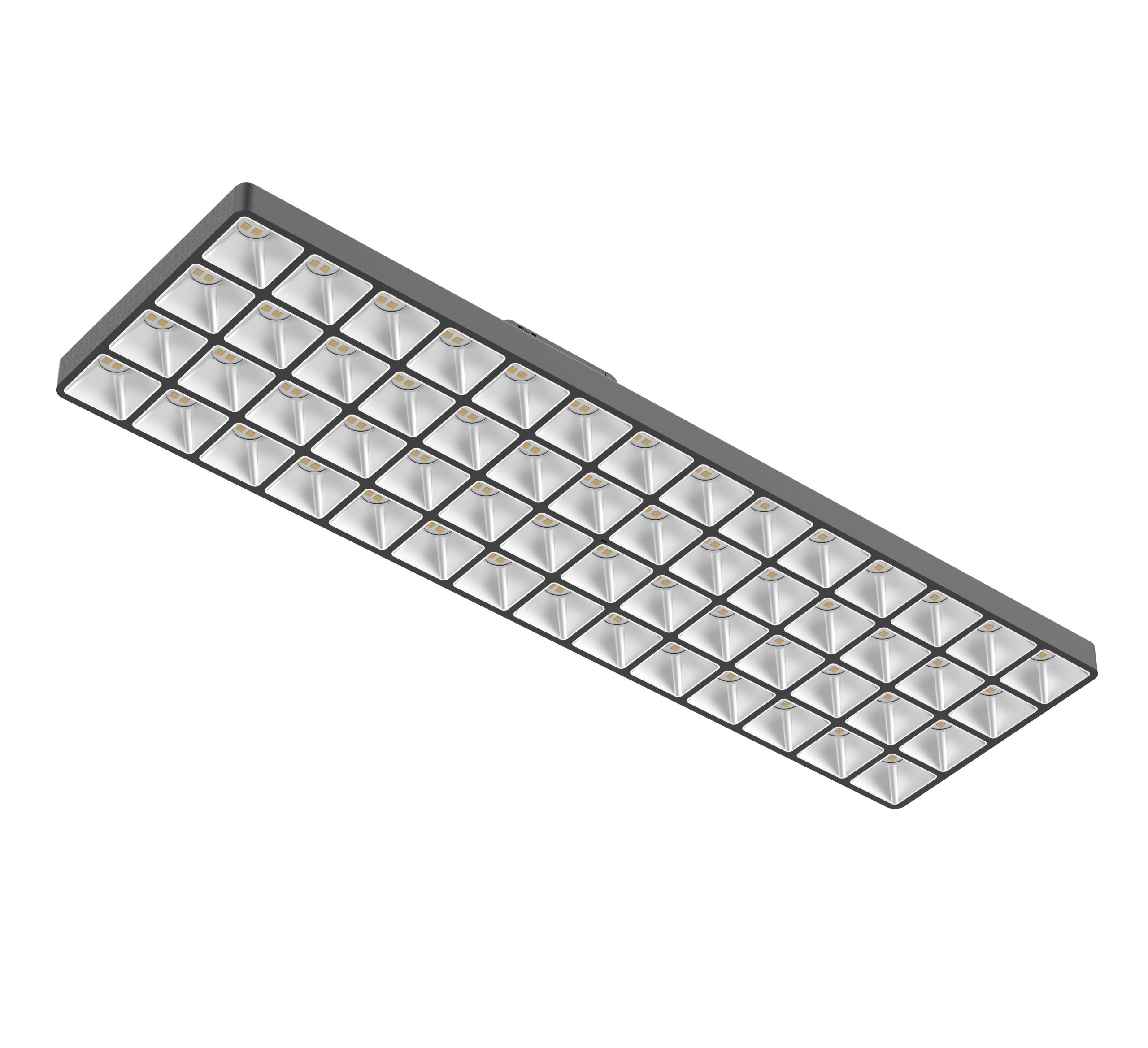

Secondary optical design for protecting eyes

Adopt efficient lens and reflective design, balanced light with minimal glare and visually comfortable spaces would reduce visual fatigue.

350° horizaontal rotation

The track panel light can be rotated around 350 degrees, which allows the lighting to focus on the special areas. Such a flexible design will provide you with better customer experience.

Wattage Adjustable

The adjustable function can realize lighting control and scene setting. To some extent, it replaces the common dimmer system. There’s no need to add an extra dimmable driver. Which can greatly save your inventory space and meet different project requirements.

  • Wattage dipswitch: 46/54/62/70W
  • CRI: >80Ra/90Ra

Easy to Install

Installation Mod:

  • Track on the trunking system
  • Suspension
  • Recessed

Track installation is the most common:

  • Turn two shafts around 90°as drawing shown to lock the adaptor in the track
  • Adjust the circuit “ OFF>1>2>3>OFF”
  • Completed adjustment and installation

Specs

Technical Parameters


Model


OL-TD01-50W


Power


50W


Luminous flux


6500lm


130lm/W


Dimension


L576*W166mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


80°


Housing material


Aluminum 6063+PMMA Lens Cover+PC Retroreflector


Working temperature


-20°C~+50°C


Lifetime


>50000 hrs


Warranty time


5 years


Technical Parameters


Model


OL-TD01-60W


Power


60W


Luminous flux


7800lm


130lm/W


Dimension


L576*W166mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


80°


Housing material


Aluminum 6063+PMMA Lens Cover+PC Retroreflector


Working temperature


-20°C~+50°C


Lifetime


>50000 hrs


Warranty time


5 years


Technical Parameters


Model


OL-TD01-70W


Power


70W


Luminous flux


7800lm


130lm/W


Dimension


L576*W166mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


80°


Housing material


Aluminum 6063+PMMA Lens Cover+PC Retroreflector


Working temperature


-20°C~+50°C


Lifetime


>50000 hrs


Warranty time


5 years


Technical Parameters


Model


OL-TD01-70WD


Power


70W can adjust 46W,54W,62W,70W


Luminous flux



130lm/W


Dimension


L576*W166mm


Input Voltage


AC220-240V


Power factor ( P.F. )


>0.95


LED source


SMD 3030/2835,   CRI>80Ra, CRI>90Ra for Option


Lamp body color


Black / White


Track Adapter Type


4 Wires 3 Phase, Powergear Adapter


Index of protection


IP40


Beam angle


80°


Housing material


Aluminum 6063+PMMA Lens Cover+PC Retroreflector


Working temperature


-20°C~+50°C


Lifetime


>50000 hrs


Warranty time


5 years


BENEFITS OF UGR<19 TRACK LIGHTS

Enhance the aesthetic: Elegant and generous design. Combined with the long linear light and track system, the unique beauty makes it differently attractive than any other type of light.

Save space: it supplies more planning space if laying out Track panel Light in the matched rail attached to the ceiling.

Protect your eyes: Anti-glare lamps can help people reduce eye strain. This is beneficial for those who work in business offices for a long time.

FAQ of TD01 Series

Yes. The standard models are 40W, 50W, 60W and 70W.

White and black for option. but we can also use the color customers mentioned.

SMD2835. The brand is Liumileds.(80 and 90Ra for option)

The standard brand is PHILIPS. Other drivers are also available, such as Lifud, BOKE, Tridonic, OSRAM etc.

Since its secondary optical design and the function of anti-glare, you can only choose the specified angle.
