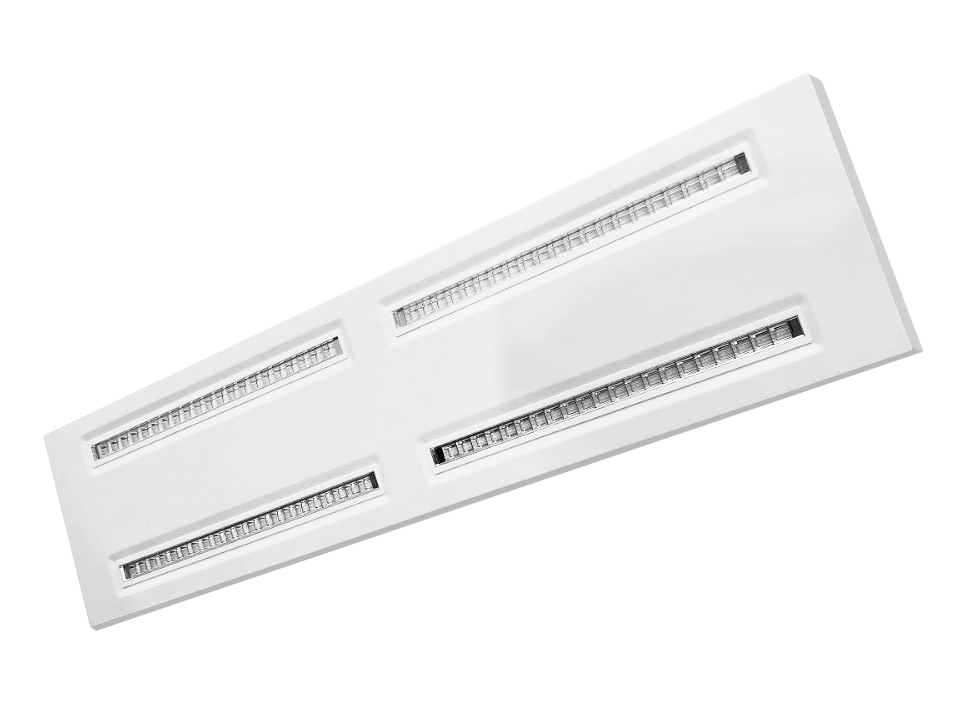

LED Modular Panel Light
PN Series
UGR<16 Modular Panel Light
- Secondary optical design for protect eyes.
- High luminous efficiency for energy saving.
- QTY of modules can be changed flexibly.
- Enduring high and low temperature, the surface is treated by spraying processs, will not be paint stripping if used for a long time.
- Power supply is easy to replace, without maintaining performed by professionals.
- The shell, modules and power supply are easily separated. Led modules get replaced easily and are environmental alternatives.
The Standard Models
- Luminous efficacy: >130lm/W
- Fire resistance: 850°C/PC
- Lighting source: SMD2835, CRI 80Ra or 90Ra
- White Housing shell with reflectors
- Power supplies and modules are detachable
- modules design perfectly solves the current concept of recycling and environmental protection
- Meeting the requirements of different areas by matching the specific size and number of light source modules

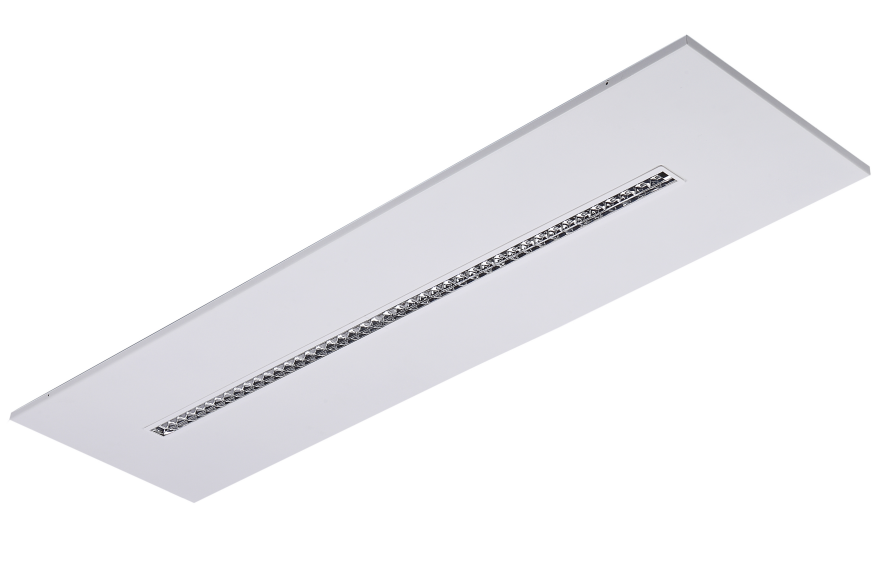

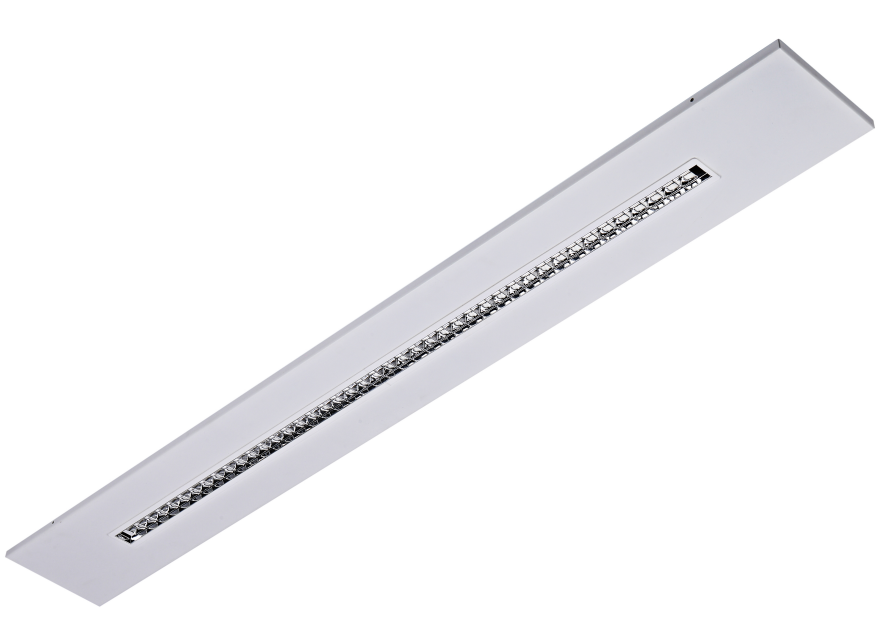

About Customization
We offer a variety of personalized customization services. for example, for the size of housing shell, it can be 150x1200mm, 200x1200mm and 300x1500mm. Meanwhile, panel lights with the individual module can also be done by a professional process(two modules are seamlessly combined).
Modules are easy to replace
- Panel lights can still work as long as modules or drivers are replaced.
- Instead, for traditional panel lights, the whole lamp would be useless if just one part gets destroyed.
How to add a sensor
Method: Opening a hole from the middle of panel flexibly.
Just match the sensors you want, such as microwave sensor, Daylight sensor and PIR sensor.
Multiple installation methods
- Surface mounting / Ceiling: fix the aluminum frame into the ceiling
- Recessed / Built-in: Fix the panel light into the ceiling direatly
- Suspending / Hanging: be suspended from the ceiling with a hanging rope
- Customization: design different installation accessories according to ceiling structures
Specs
| Technical Parameters | |
| Model | OL-PN30W-6060 |
| Power | 30W |
| Luminous flux/Eff. | 3900-4200lm >130lm/W |
| Glare Rating | UGR<16 |
| Dimension | 595*595*38mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| LED Module QTY | 2PCS |
| Lamp body color | White |
| IP Rate | IP40 |
| Beam angle | 85*70° |
| Housing material | Iron Metal |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters | |
| Model | OL-PN40W-6060 |
| Power | 40W |
| Luminous flux/Eff. | 5200-6000lm >130lm/W |
| Glare Rating | UGR<16 |
| Dimension | 595*595*38mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| LED Module QTY | 2PCS |
| Lamp body color | White |
| IP Rate | IP40 |
| Beam angle | 85*70° |
| Housing material | Iron Metal |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters | |
| Model | OL-PN30W-6262 |
| Power | 30W |
| Luminous flux/Eff. | 3900-4200lm >130lm/W |
| Glare Rating | UGR<16 |
| Dimension | 620*620*38mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| LED Module QTY | 2PCS |
| Lamp body color | White |
| IP Rate | IP40 |
| Beam angle | 85*70° |
| Housing material | Iron Metal |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters | |
| Model | OL-PN40W-6262 |
| Power | 40W |
| Luminous flux/Eff. | 5200-6000lm >130lm/W |
| Glare Rating | UGR<16 |
| Dimension | 620*620*38mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| LED Module QTY | 2PCS |
| Lamp body color | White |
| IP Rate | IP40 |
| Beam angle | 85*70° |
| Housing material | Iron Metal |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |

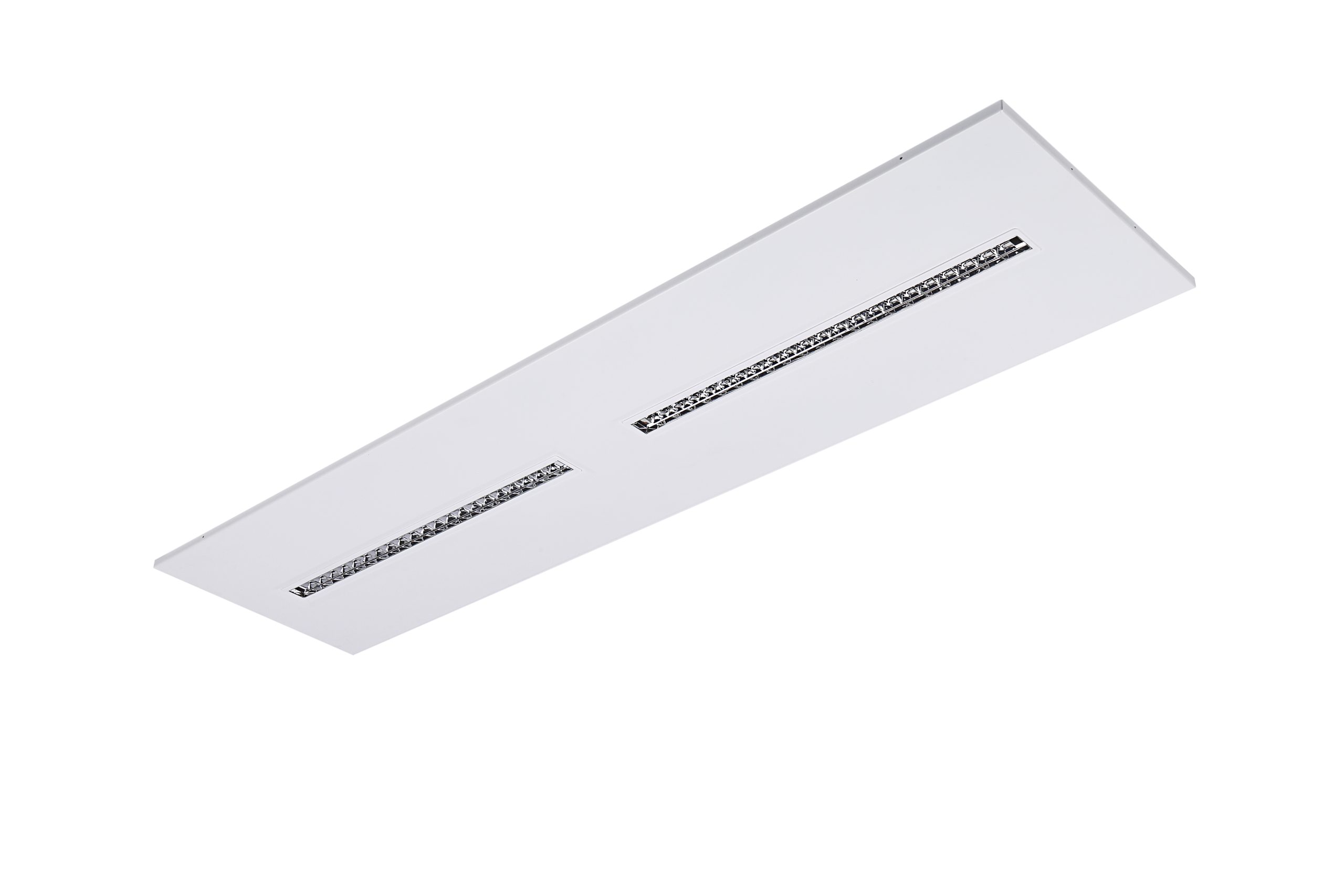

| Technical Parameters | |
| Model | OL-PN30W-30120 |
| Power | 30W |
| Luminous flux/Eff. | 3900-4200lm >130lm/W |
| Glare Rating | UGR<16 |
| Dimension | 295*1195*38mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| LED Module QTY | 2PCS |
| Lamp body color | White |
| IP Rate | IP40 |
| Beam angle | 85*70° |
| Housing material | Iron Metal |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters | |
| Model | OL-PN30W-15120 |
| Power | 30W |
| Luminous flux/Eff. | 3900-4200lm >130lm/W |
| Glare Rating | UGR<16 |
| Dimension | 145*1195*38mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| LED Module QTY | 2PCS |
| Lamp body color | White |
| IP Rate | IP40 |
| Beam angle | 85*70° |
| Housing material | Iron Metal |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |

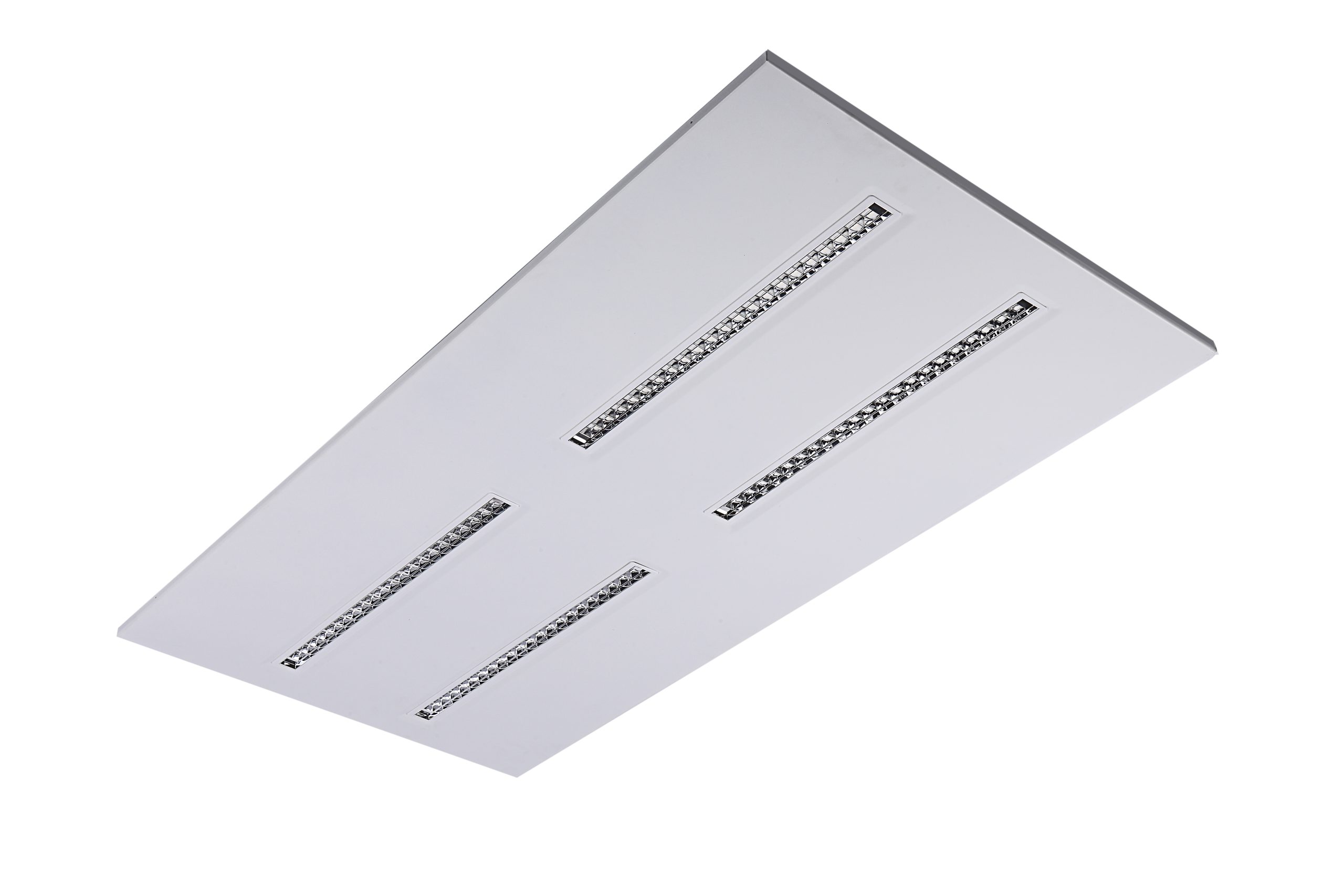

| Technical Parameters | |
| Model | OL-PN60W-60120 |
| Power | 60W |
| Luminous flux/Eff. | 7800-9000lm >130lm/W |
| Glare Rating | UGR<16 |
| Dimension | 595*1195*38mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| LED Module QTY | 2PCS |
| Lamp body color | White |
| IP Rate | IP40 |
| Beam angle | 85*70° |
| Housing material | Iron Metal |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
Benefits
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.
FAQ for Panel Light PN Series
For Non-dimming, there is only an ON/OFF switch, and the brightness can not be changed. But with an dimmer driver, it can be adjusted to the desired brightness according to different situations. 0-10V and DALI are two commonly used dimmers.
Microwave sensors, Daylight sensor and PIR sensor for option
Our standard emergency power are 5W-3H and 10W-1.5H. And we can also provide what our customers want.
Of course. The size of air slot will depend on the customers’ needs.
