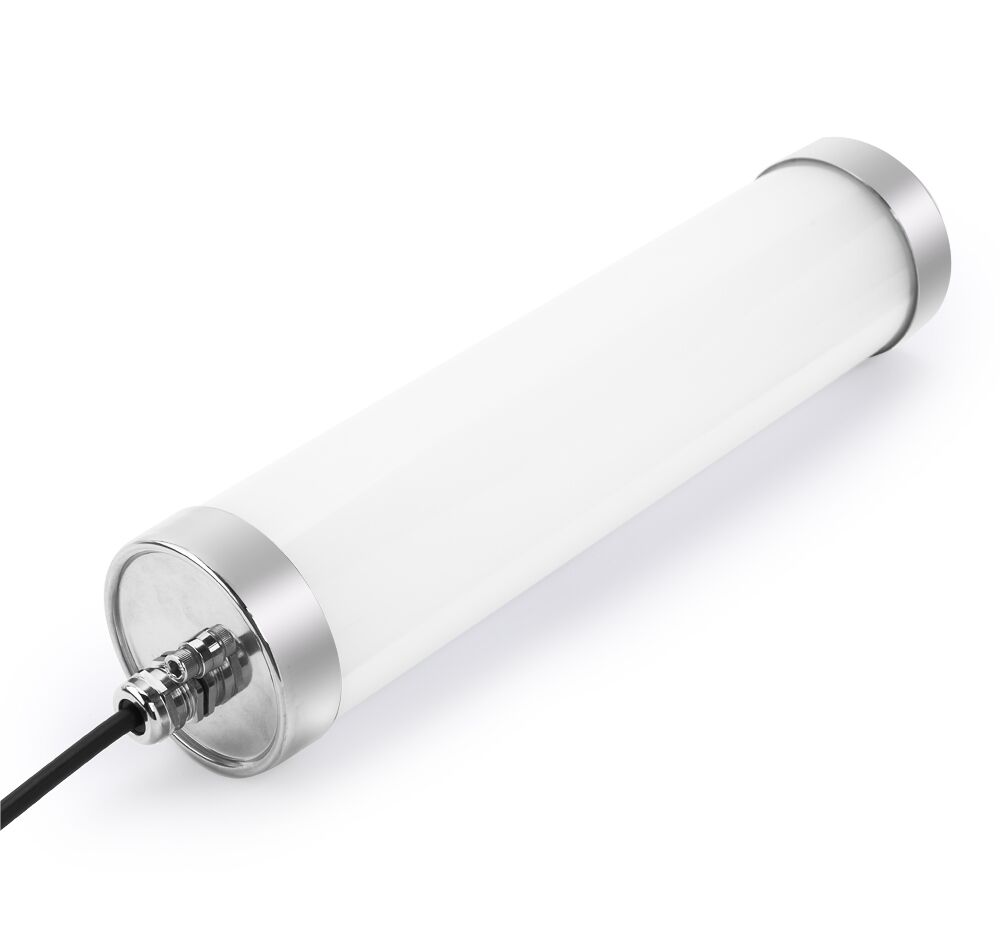

Ø80 Series LED Tubular Light
Ø80mm LED Tubular Light
We selected a wide range of high-value materials:
- Inox 304L and 316L for all external metal features
- PC or PMMA Shell to certify the resistance of the luminaire in high chemical, corrosive and abrasive situations”
- Shock resistance： PC Housing resisting IK10 mechanical impacts. Resistant to thermal and mechanical impacts even at very low temperature:
- Integrated shell principle, absorb thermal expansion and mechanical stress
- A powerful power supply designed for intensive operation at low temperatures
- Designed to meet the hygienic requirements of the food industry:
- Absolutely durable and impermeable IP67/IP69K
- No frost formation
- High resistance to chemical detergents due to co-extrusion Polycarbonate and methacrylate shells

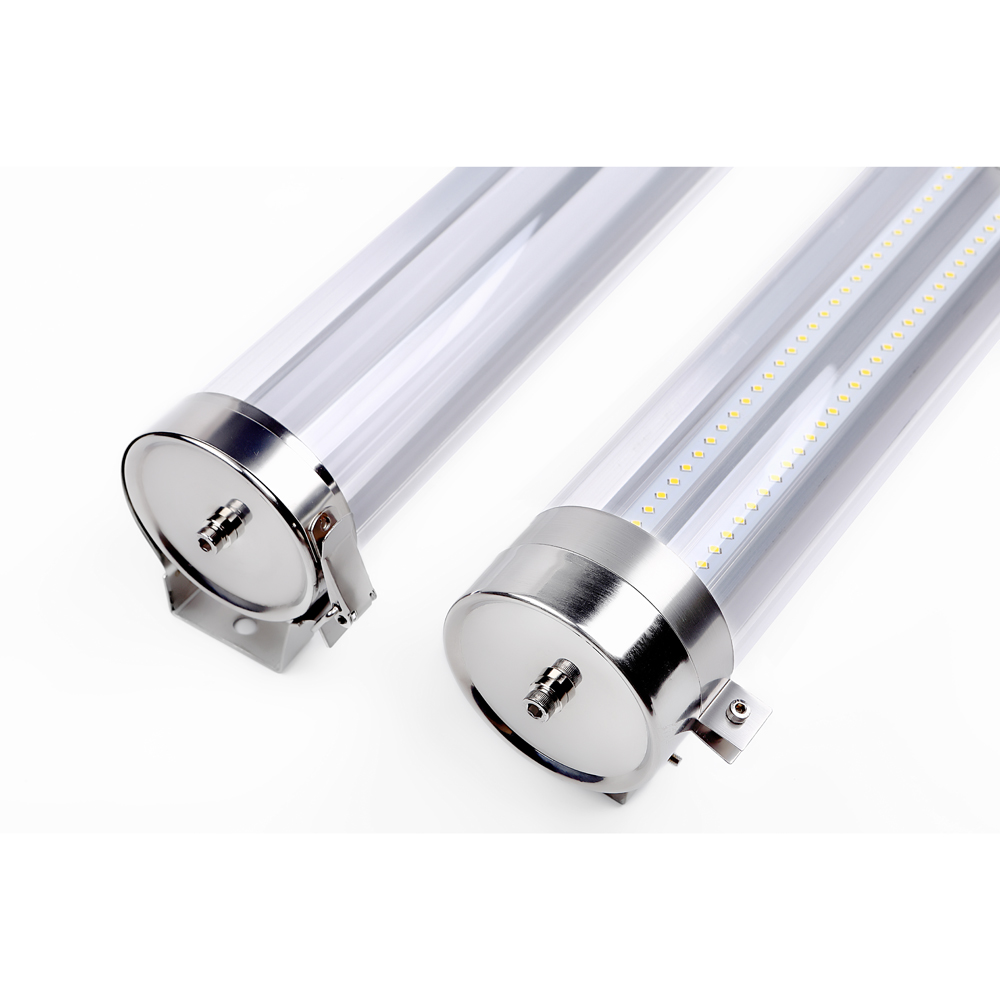

Standard Led Tubular Light
Our luminaires concept and material selection enable our lighting to solve impact resistance, detergent factors and high pressure cleaning (IP69K)
- End caps, fixing straps Stainless steel 304L/316L
- Gaskets Silicone
- Imperviousness IP67,IP68 and IP69K
- Shock resistance: IK10/PC, IK06/PMMA
- Fire resistance : 850°C/PC, 650°C/PC
- Detachable drives and efficient modules
- Lighting source: SMD2835, CRI 80Ra or 90Ra
- Clear or Opal Housing

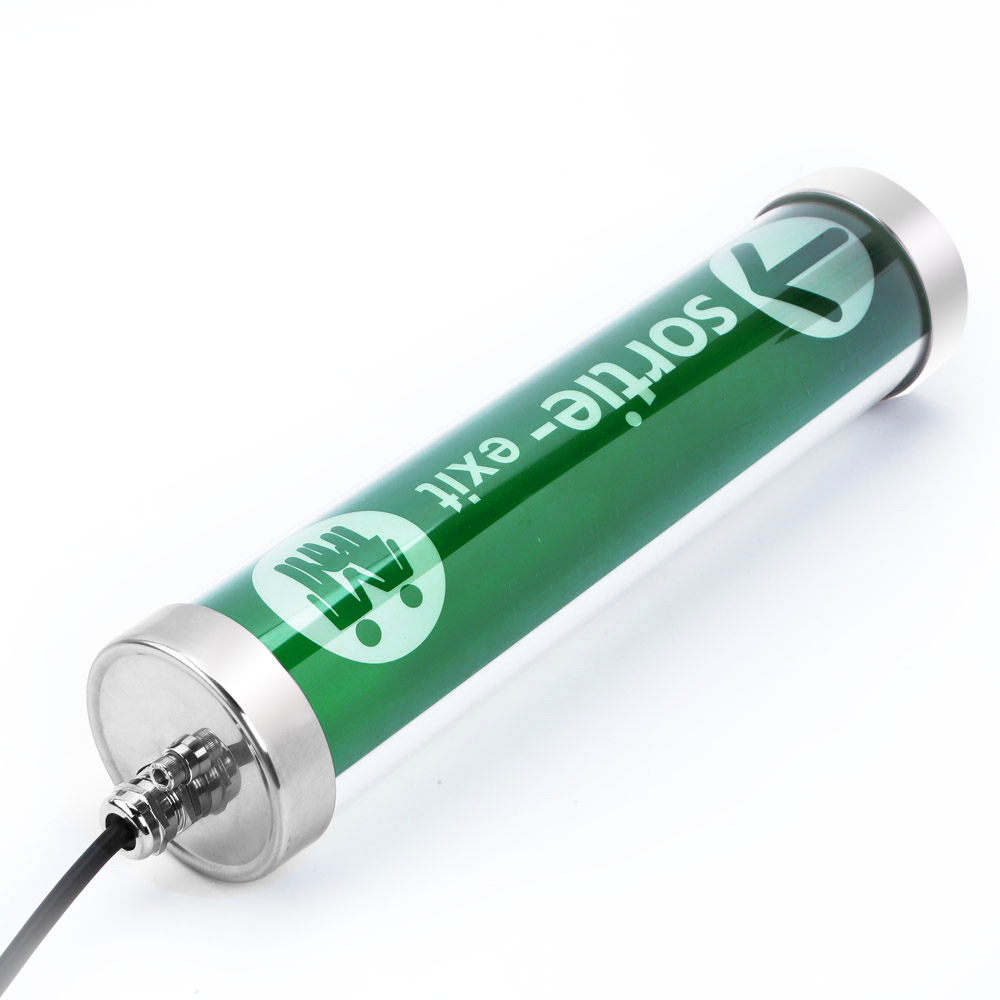

LED Emergency Tubular Light
- Escape Route Lighting Impervious Tubular Light Fitting For 220-230V AC/DC Central System
- Impact and corrosion resistance, One -piece housing, material and
Components - Electrical class: Class 1
- Emergency output: 5W or 10W
- The supply voltage is 220-240V / 50hz
- Fire resistance of 850 ° C
- IP67 protection
- Impact resistance IK10
- Operating temperature -20℃+40℃
Single Input--Non-linkable:
Single Input with IP68 Inox stainless steel connector, There are 3 kinds of wire for different driver.
- With 1M 3×1.0mm² cable for non-dimmable driver.
- With 5×1.5mm² cables for dimmable 0-10V and DALI,
- With 4×1.0/1.5mm² for Emergency kits and motion sensor.
Single Input--Non-linkable:
Single Input with IP68 Inox stainless steel connector, There are 3 kinds of wire for different driver.
- With 1M 3×1.0mm² cable for non-dimmable driver.
- With 5×1.5mm² cables for dimmable 0-10V and DALI,
- With 4×1.0/1.5mm² for Emergency kits and motion sensor.

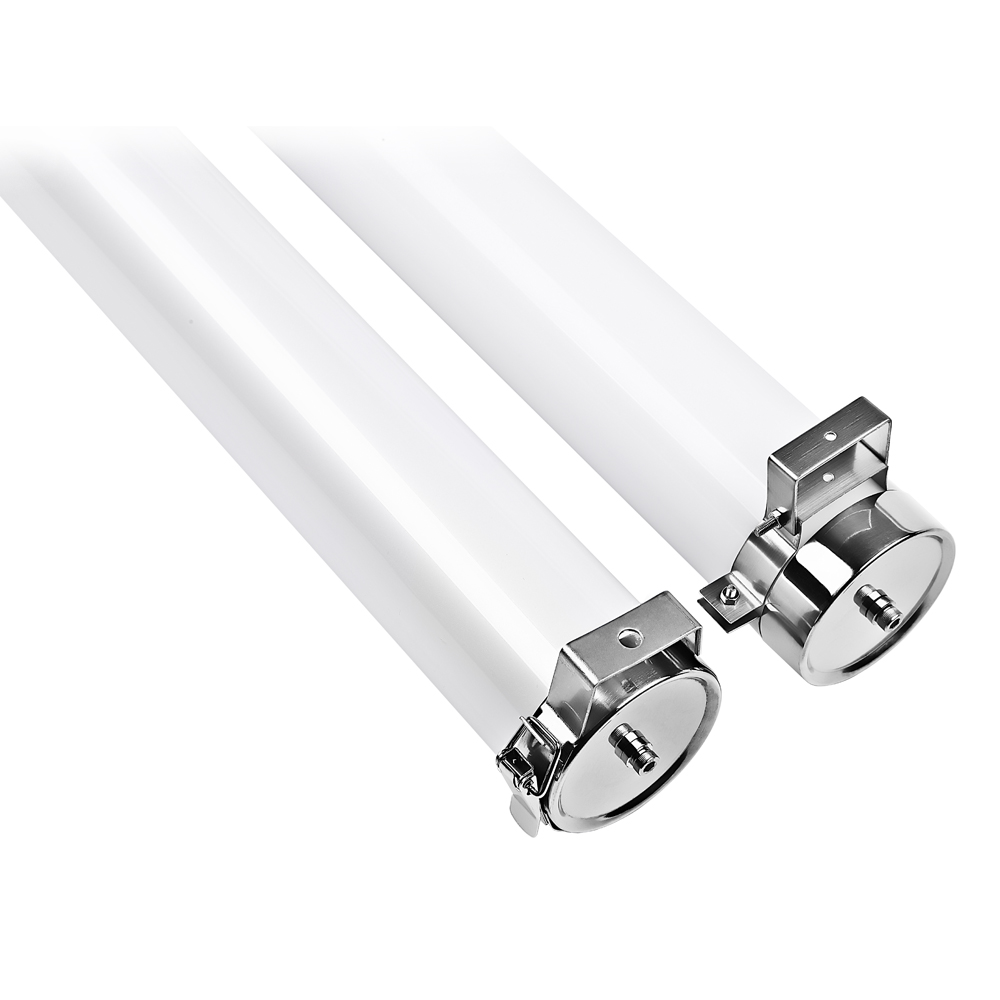

Installation Type:
- with stainless steel mounting accessories included for wall and ceiling mounting,
- stainless steel cables For Hanging.
Specs
| Technical Parameters-Dia￠80mm |
|
| Model | OL-PL20W-K60-80 |
| Power | 20W |
| Luminous flux | 2600lm /Transparent 2400lm/Frosted |
| Dimension | L605×￠80mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Transparent/Frosted(Milky) |
| Metal End Cap color | #304, #316 Original Stainless steel |
| Index of protection | IP67/IK10/IP69K |
| Beam angle | 120° |
| Housing material | PC / V.0, PMMA |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters-Dia￠80mm |
|
| Model | OL-PL30W-K90-80 |
| Power | 30W |
| Luminous flux | 4100lm /Transparent 3800lm/Frosted |
| Dimension | L905×￠80mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Transparent/Frosted(Milky) |
| Metal End Cap color | #304, #316 Original Stainless steel |
| Index of protection | IP67/IK10/IP69K |
| Beam angle | 120° |
| Housing material | PC / V.0, PMMA |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters-Dia￠80mm |
|
| Model | OL-PL40W-K120-80 |
| Power | 40W |
| Luminous flux | 5200lm /Transparent 4800lm/Frosted |
| Dimension | L1205×￠80mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Transparent/Frosted(Milky) |
| Metal End Cap color | #304, #316 Original Stainless steel |
| Index of protection | IP67/IK10/IP69K |
| Beam angle | 120° |
| Housing material | PC / V.0, PMMA |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters-Dia￠80mm |
|
| Model | OL-PL60W-K150-80 |
| Power | 60W |
| Luminous flux | 7800lm /Transparent 7200lm/Frosted |
| Dimension | L1505×￠80mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Transparent/Frosted(Milky) |
| Metal End Cap color | #304, #316 Original Stainless steel |
| Index of protection | IP67/IK10/IP69K |
| Beam angle | 120° |
| Housing material | PC / V.0, PMMA |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 3-5 years |
| Technical Parameters-Dia￠80mm | |
| Model | OL-PE5W-K30-80 |
| Power | 5W |
| Luminous flux | 550-600lm/Frosted |
| Dimension | L305×￠80mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Frosted(Milky) |
| Metal End Cap color | #304, #316 Original Stainless steel |
| Index of protection | IP67/IK10/IP69K |
| Beam angle | 120° |
| Housing material | PC / V.0, PMMA |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 1 years |
| Technical Parameters-Dia￠80mm | |
| Model | OL-PE10W-K30-80 |
| Power | 10W |
| Luminous flux | 1100-1200lm/Frosted |
| Dimension | L305×￠80mm |
| Input Voltage | AC220-240V/AC100-277V(for US market) |
| Power factor ( P.F. ) | >0.95 |
| LED source | Edison SMD 2835, CRI>80Ra, CRI>90Ra for Option |
| Lamp body color | Frosted(Milky) |
| Metal End Cap color | #304, #316 Original Stainless steel |
| Index of protection | IP67/IK10/IP69K |
| Beam angle | 120° |
| Housing material | PC / V.0, PMMA |
| Working temperature | -20°C~+50°C |
| Lifetime | 50000 hrs |
| Warranty time | 1 years |
Benefits
In addition to standard products, we can also customize your size, color temperature, power function, luminous efficacy of light source, connection method, label style, your logo, packaging and so on.
FAQ of Ø80 Series LED Tubular Light
• IP67:
Soaking in water from 15 cm to 1 m deep for 30 minutes prevents water from entering.
• IP69K:
Capable of withstanding the hot steam wash test as defined in EN 60529 and DIN 40050-9. This provides protection against water pressures of 100 bar (1450 psi) and temperature of 80ºC. The pressure is applied directly to the sensor at progressive angles of 30 degrees (0, 30, 60 and 90 degrees) for 30 seconds at each angle for a total of 120 seconds (2 minutes) to prevent water ingress.
PC
IK Rate different, the PC can to achieve IK10
Using in environment contains fumes, gas or solvents.
Using in dusty and wet industrial environment and hard conditions.
PMMA
The PMMA is a acrylic, the IK rate can to achieve IK06
Against 100bar(1450psi)hydraulic Pressure and 80°Ctemperature
Using in dusty and wet industrial environment and hard conditions.
Using in environment contains fumes, gas or solvents.
Anti-ammonia and Sulphur vapours, Prevent insects going inside.
Non-dimming
Non-dimmable light refers to the power supply of lamps and lanterns can only realize the function of on and off.
Dimming
Dimmable refers to the power supply inside the lamp that can adjust the brightness. The common dimming power supply is 0-10V,DALI dimming
