In facilities where flammable gases, vapors, or combustible dust are present, lighting fixtures must do more than illuminate: they must prevent any internal spark or arc from escaping.
Explosion-proof lighting systems achieve this through robust mechanical design and strict adherence to safety standards. Leading suppliers continue to refine housing materials, sealing methods, and lighting sources (especially LEDs) to meet demanding requirements in sectors such as oil & gas, chemical processing, pharmaceuticals, and mining.
What Makes a Fixture Explosion-Proof?
An explosion-proof luminaire features:
- Reinforced enclosure: Cast aluminum or stainless steel walls withstand internal pressure.
- Precision seals and gaskets: Specialized rubber or silicone components block dust and gases.
- Impact-resistant lens: Tempered glass or polycarbonate resists cracking.
- Heat management: Dedicated heat sinks and airflow channels protect seals and electronics.
These elements contain any internal fault—such as a lamp rupture or short circuit—so it cannot ignite external hazards. Installation locations and mounting methods are then determined by local regulations.
Safety Compliance Standards
| Standard | Region | Classification Example |
| ATEX | European Union | Zone 0/1/2 for gases; Zone 20/21/22 for dust |
| IECEx | Global | Zone 0/1/2, 20/21/22 with third-party testing |
| NEC/CEC | North America | Class I Div 1/2 (gas); Class II (dust); Class III (fibers) |
Key Technical Features
Durable Construction
High-performance fixtures use corrosion-resistant alloys (e.g., EN 22868 cast aluminum) or chemical-resistant polymers. Ingress-protection ratings such as IP66 and IP67 guarantee dust-tight performance during washdowns or in outdoor environments.
LED Efficiency and Reliability
Modern LED drivers offer wide-voltage operation (100–277 VAC or 347–480 VAC) and surge protection up to 10 kV. LEDs achieve 120–150 lm/W versus 50–70 lm/W for HID, and lifespans often exceed 50,000 hours, reducing replacement frequency by up to 80%.
Deployment Flexibility
Available form factors include high-bay, low-bay, bulkhead, floodlight, and portable worklight models. Accessories such as swivel mounts, conduit adapters, and emergency-circuit backups simplify installation and integration with building-management or safety systems.

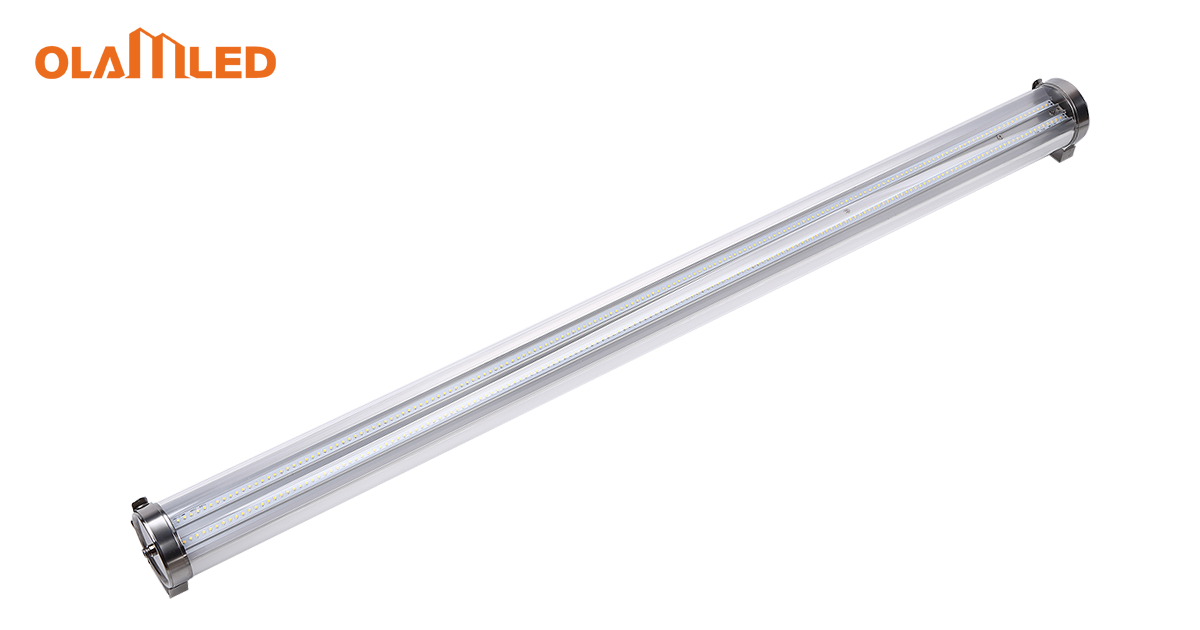

OLAMLED explosion-proof luminaires integrate these advantages, with certain specifications exceeding standard benchmarks. A wide range of configuration options is available to meet diverse operational requirements.
Notable Manufacturers
Emerson’s Appleton™ Group (USA)
Offers the XCELITE™ LED high-bay series and Molded Series™ bulkhead fixtures. ATEX, IECEx, and UL844 approvals, with thermally conductive housings that dissipate heat 25% faster than standard designs.
Eaton Crouse-Hinds (USA)
The XPERT™ LED floodlight series delivers up to 140 lm/W and includes 10 kV surge protection. Rated Class I Division 1, backed by a 5-year warranty; over 40,000 units installed in North American petrochemical facilities.
Dialight PLC (UK)
Specializes in the eLED® and VaporTight ranges, reaching 150 lm/W and 100,000 hour lifespans. Certified to ATEX, IECEx, and UL924 for emergency routes; widely used on offshore platforms and in European mines.
R. STAHL (Germany)
The LED2980 bulkhead and LED9590 floodlight families feature a patented passive-cooling system. IP66/IP67-rated for Zone 1/21 installations, deployed in over 2,000 chemical-processing sites, with a 7-year warranty.
Pepperl + Fuchs (Germany)
Under the BLM series of explosion-proof LED luminaires, built-in surge protection and optional Modbus connectivity enable real-time system status reports. Certified for Zone 2/22, with more than 5,000 units in European wastewater and food-processing applications.
Each of these manufacturers maintains rigorous third-party testing regimes and continuous product updates to stay ahead of evolving safety requirements.
Product Performance Comparison
| Product Category | Lumen Output | Energy Efficiency | Service Life | Protection Rating |
| Traditional HID Fixture | 15,000 lm | 50 lm/W | 10,000 h | NEMA 4 |
| Mid-Range LED Fixture | 18,000 lm | 100 lm/W | 25,000 h | IP66 |
| Premium LED Fixture | 20,000 lm | 140 lm/W | 50,000 h | IP67 |
Selecting the Right Fixture
Hazard Assessment
Identify areas with flammable gases (Class I), combustible dust (Class II), or fibers (Class III).
Regulatory Match
Align fixture ratings with ATEX/IECEx zones or NEC divisions, and confirm T-rating is suitable for surrounding materials.
Illumination Requirements
Set target illuminance (e.g., 300–500 lux general areas, up to 1,000 lux for detailed tasks).
Environmental Conditions
Factor washdown cycles, chemical exposure, vibration, temperature extremes, and wind loads.
Control and Monitoring
Define needs for dimming, motion detection, remote monitoring, or integration with building-management systems.
Manufacturers often provide site surveys, photometric layouts, and prototype installations to validate performance prior to full deployment.
Current Technology Trends
| Advancement | Key Benefit |
| Next-Gen LED Phosphors | Increased efficacy, improved color rendering |
| Predictive Maintenance Enabled | Automated alerts cut unplanned downtime |
| Advanced Polymer Housings | Enhanced chemical and UV resistance |
| Modular Mounting and Optics | Simplified retrofits and faster parts replacement |
Frequently Asked Questions About Top Explosion-Proof Lighting
Which lighting brand is best?
There’s no single “best” lighting brand—what matters is finding the one that fits your needs. Choose based on:
- Application environment (indoor vs. outdoor, hazardous vs. general)
- Certifications (UL/CSA, ATEX/IECEx, IP rating)
- Light source & performance (LED vs. HID, lumens/W, color rendering)
- Mounting & form factor (high-bay, flood, bulkhead, portable)
- Service & warranty (global support, warranty length)
- Budget & total cost of ownership (energy savings, maintenance)
For example, Dialight excels in energy-efficient LED fixtures with long warranties, Hubbell offers rugged industrial solutions, and R. STAHL delivers turnkey engineered systems. The “best” brand is simply the one that ticks all your boxes.
How much does explosion proof lighting cost?
Explosion-proof fixtures range widely in price because each project’s requirements differ—factors include:
- Hazard classification & certifications (Class/Zone ratings, ATEX/IECEx vs. UL/CSA)
- Light source & output (HID vs. LED, lumen levels, color rendering)
- Form factor & materials (bulkheads, high-bays, portable units; cast-aluminum, stainless steel)
- Controls & accessories (dimming, motion sensors, emergency backup)
- Installation complexity (custom designs, conduit fittings, global approvals)
Select the configuration that matches your environment and performance needs to determine the right price bracket.
Is vapor proof the same as explosion-proof?
No — vapor-proof and explosion-proof are not the same.
Vapor-proof fixtures are designed to prevent the ingress of moisture, dust, and non-combustible vapors into the enclosure but do not contain internal ignitions. Explosion-proof fixtures, by contrast, are built to withstand and contain an internal explosion, preventing it from igniting hazardous gases or dust in the surrounding atmosphere.
Only explosion-proof fixtures carry the certifications required for hazardous (classified) locations.
What is the difference between explosion-proof and explosion resistant?
- Explosion-Proof: Built to contain any internal ignition or blast, preventing flames or hot gases from escaping into the surrounding atmosphere.
- Explosion-Resistant: Designed to withstand external blast pressures without catastrophic failure, but not necessarily to contain an internal explosion.
Why are my LED lights burning out so fast?
Common reasons include:
- Overheating from poor heat dissipation
- Incorrect voltage or power supply issues
- Poor-quality LEDs or drivers
- Incompatible dimmers or controls
- Exposure to moisture, dust, or harsh environments.Using LED fixtures with an appropriate IP rating can prevent this
Check installation, environment, and product quality to fix it.
What is a Category 3 explosion-proof?
Category 3 (ATEX) explosion-proof equipment is rated for Zone 2 (gases) or Zone 22 (dust) areas—it provides protection under normal operating conditions but isn’t certified for frequent or prolonged fault scenarios.
